0-10 ℃ Air-Cooling Control Cryogenic Planetary Ball Mill Grinding Machine Grinder

  • Model Number:

    TMAX-Mill-1
  • Type:

    Planetary Ball Mill
  • Dimension(L*W*H):

    800*1200*1000 mm
  • Net Weight:

    100KG
  • Compliance:

    CE certificate
  • Warranty:

    2 year limited warranty with lifetime support
  • Delivery Time:

    3 days
contact now
DESCRIPTION

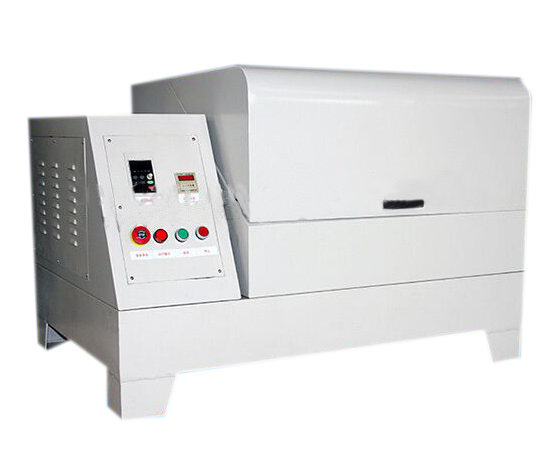

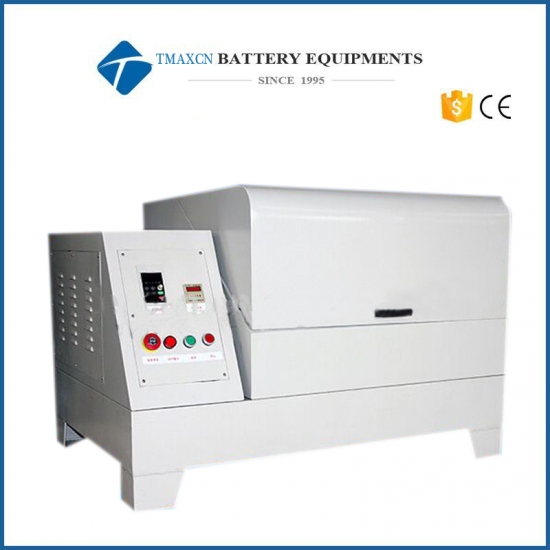

 0-10 ℃ Air-Cooling Control Cryogenic Planetary Ball Mill Grinding Machine Grinder

Cryogenic planetary laboratory ball milling is composed of planetary ball mill and refrigeration device. Most of materials are heating-up because of friction and exothermal reaction in process of grinding at high speed, which may cause changing of chemical and physical properties of materials and lead to negative effect of grinding. Cryogenic planetary lab ball milling is mainly used for grinding materials which need to control their temperature.

Application Field

The product is extensively applied in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.

It's widely used in research institutes, universities, enterprise laboratories and small batch producing manufacturer.

Grinding Materials

Electronic ceramics, structural ceramics, magnetic materials, LCO, LMO, catalyst, fluorescent powder, E-glass powder, fuel cell, zinc oxide varistor, piezoelectric ceramics, nano materials, MLCC, PTC, NTC, media ceramics, fluorescent powder etc.



Performance of cryogenic mill grinder

  Transmission Mode

     Gear Drive

   Working Mode

     2 or 4 pots can be used each time

   Max Volume of Load

     Two-thirds of pot's volume

   Volume of Grinding Pot

     0.05L/pot-50L/pot Total Volume: 0.2L-200L

   Feed Size

     Soft and crispy material ≤10mm, Other materials ≤3mm

   Out-put Granularity

     Minimum granularity can be reached to 0.1μm

   Adjusting Mode of Rotate Speed

     Frequency converter with stepless speed reglulation


Specification

Type

 Total Volume of 4 Pots(L)

Max Rotate Speed(rpm)

Power (KW)

Dimension (mm)

Mill-1

1

670

0.75

770*470*570

Mill-2

2

670

0.75

770*470*570

Mill-4

4

670

0.75

770*470*570

Mill-6

6

670

0.75

 770*470*570

Mill-8

 670

1.5

900*600*640

Mill-10

10

 580

1.5

 900*600*640

Mill-12

12

580

1.5

900*600*640

Mill-20

 20

 430

 4

1200*760*920

Mill-40

 40

 390

 5.5

1400*850*1030

Mill-60

 60

 260

 7.5

1600*950*1120

Mill-100

 100

 240

 11

1750*1100*1180

Mill-200

200

190

18.5

1920*1400*1350

Material Data for Grinding Jars/Balls

Ball Mill

Ball Mill

Cryogenic Ball Mill

 battery equipment


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.



1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
