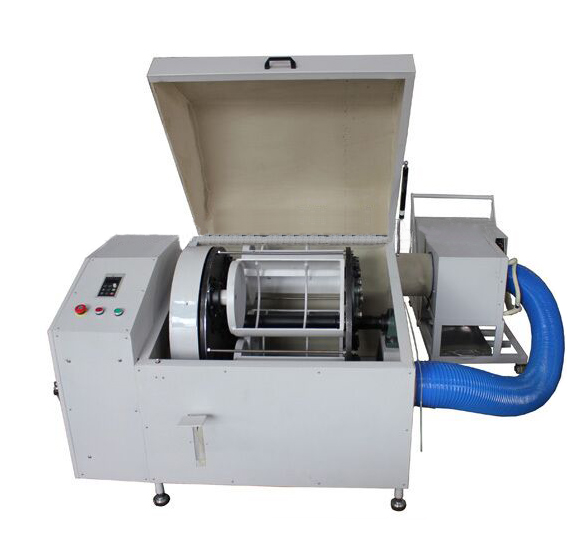

High Efficiency Cryogenic Grinding Grinder Powder Mill Machine

  • Model Number:

    TMAX-Mill-0.4
  • Type:

    Cryogenic Grinding Mill
  • Dimension(L*W*H):

    800*470*560 mm
  • Net Weight:

    130KG
  • Compliance:

    CE certificate
  • Warranty:

    2 year limited warranty with lifetime support
  • Delivery Time:

    3 days
contact now
DESCRIPTION

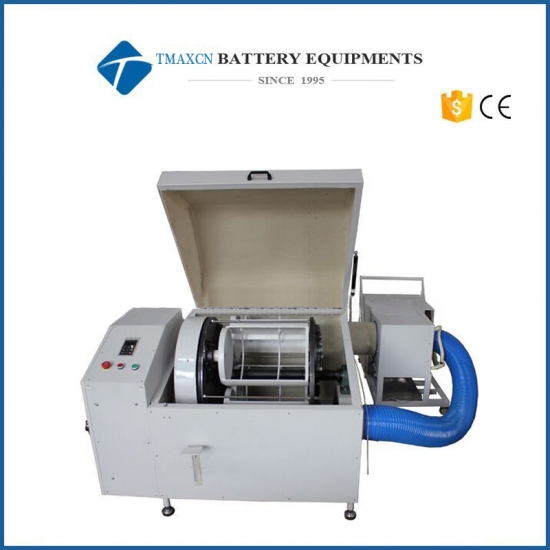

High Efficiency Cryogenic Grinding Grinder Powder Mill Machine

The Cryogenic Grinding Milis specialized in designing ,devoloping and manufacturing lab ball mills.

Unlike those general manufactures,we are cooperating with famouse university experts ,continously developing new method and technology to meet the changing market demand,thus we have pioneered in this field for many years.

Technical Parameters :

Drive Mode: gear drive and belt drive
Operation Mode: two or four grinding tanks working together
Maximum Loading Capacity: 2/3 of the capacity of milling tank
Feeding Granularity: soil material ≤10mm, other materials ≤3mm
Output Granularity: Minimum 0.1um
Rotational speed ratio (revolution: rotation): 1:2 (0.4L,2L,4L);1:1.5(12L,20L)
Rotation Speed: 0.4L:0~600rounds/min; 2L:0~580rounds/min 4L:0~530rounds/min 20L:0-280

rounds/min
Speed Regulation Mode: variable-frequency-control-type and program-control-type stepless

speed regulation: manual or automatic timed positive or negative revolving
Max. continuous working period(full-load): 72 hours

Advantages:
1. High uniformity
2.Excellent repeatability
3.Convenient operation: belt replacement is not needed;
Gear drive mode offers an effective solutions to problems caused by belt drive mode, such as belt creep, and belt abrasion.

Features:
1.Gear-drive guarantees high uniformity and repeatability of experiments;
2.Fast rotational speed, high efficiency and fine granularity;
3.Four samples with different sizes and materials in one experiment available;
4.Stepless speed regulation; ideal rotary speed selection according to experimental results;
5.Timed powering-off, positive and negative revolving if required;

2. Cryogenic grinding mill Manufacturer types for choosing

Type

Jar Volume(L)

Rotate Speed(rpm)

 Power (KW)

Material Capacity(L)

Mill-0.4

0.4L

460

0.75

0.12

Mill- 1

1L

400

0.75

0.35

Mill-2

2L

400

0.75

0.65

Mill-4

4L

400

0.75

1.3

Mill-6

6L

400

0.75

2

Mill-8

8L

320

1.5

2.5

Mill-10

10L

320

1.5

3

Mill-12

12L

320

1.5

4

Mill-16

16L

280

2.2

5

Mill-20

20L

220

4

6

Mill-40

40L

200

5.5

13

Mill-60

60L

185

7.5

20

Mill-80

80L

185

11

25

Mill-100

100L

185

11

35

Mill-200

200L

185

18.5

65


Material Data for Grinding Jars/Balls
Ball Mill

Ball Mill

Cryogenic Grinding Mill

 battery equipment


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.



1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
