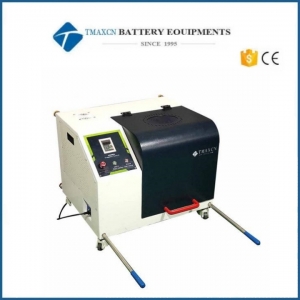

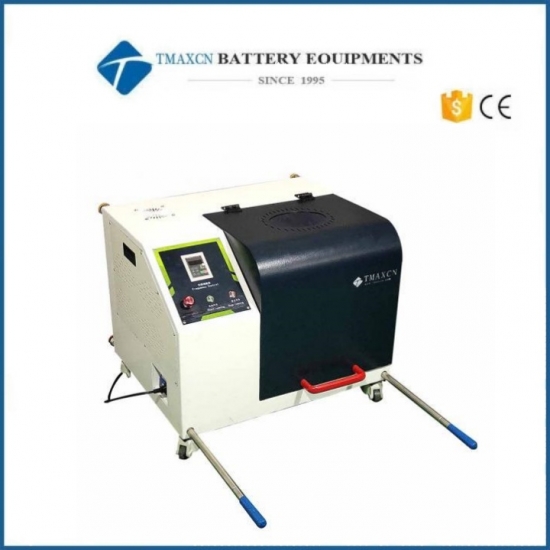

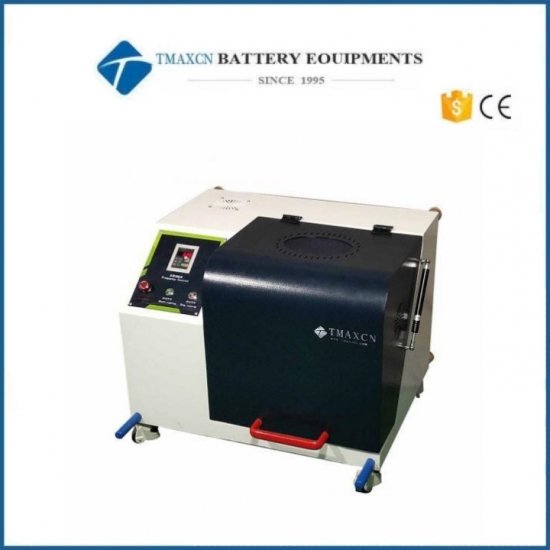

0.4-4L Lab Scale Light Infinitely Adjustable-speed Horizontal Planetary Ball Mill

Model Number:
TMAX-HPBM
Type:
Planetary Ball Mill Machine
Input Power:
0.37KW
Dimension(L*W*H):
570*300*450mm
Max. Loading Capacity:
0.2L-0.4L
Net Weight:
35KG
Compliance:
CE certificate
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days

contact now

Email:David@battery-equipments.com
Whatsapp:+86 18659217588
Wechat:18659217588

DESCRIPTION

0.4-4L Lab Scale Light Infinitely Adjustable-speed Horizontal Planetary Ball Mill

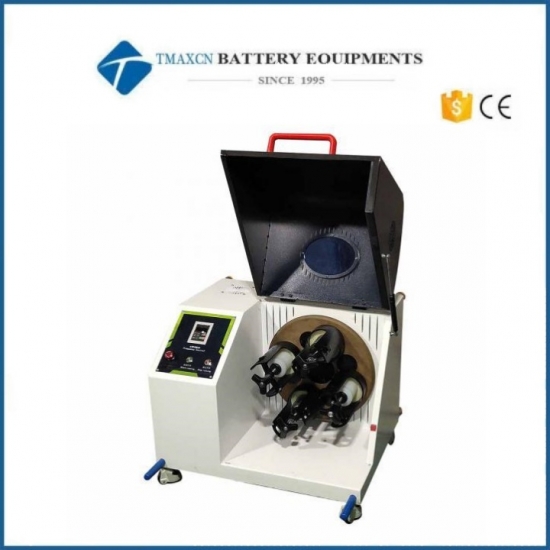

Visual Window

It is convenient to see the running status of the ball mill jar inside the ball mil.

Frequency conversion control

The ideal speed can be set according to the experimental requirements, the speed precision is high, the inverter has undervoltage, over current, overload protection, can be equipped with intelligent panel, easy to operate.

Planetary gear

Integral casting molding main plate, with manual relaxation locking device (optional automatic locking device), the appearance is very beautiful; Stable speed, high efficiency, good safety performance.

Cooling fan hole

High speed operation of the equipment, through a reasonable layout of the fan hole in and out, to achieve the external circulation of air flow inside and outside the equipment, effectively control the temperature rise in the equipment, improve the heat dissipation speed, protect the normal ball mill material, ensure the stability of the equipment.

A. Introduction

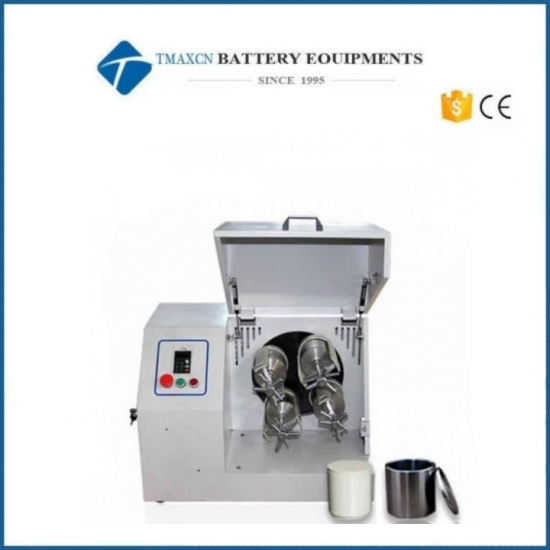

Light horizontal planetary ball mill is mainly aimed at the material proportion is bigger, easy to sink agglomerate and custom, the relative vertical transmission planetary ball mill into 90 ° structure, in the process of grinding materials, tank grinding balls and material in the revolution and rotation of two centrifugal force at the same time, influenced by their weights, speeding up the curve speed grinding balls and material without rules, and improve the effect of ball mill Efficiency. Can better solve the material part of the bottom, agglomeration plate problems. The light horizontal planetary ball mill has the advantages of simple structure and convenient operation, and is suitable for laboratory experiment and research of small batch samples.

B. Character

Equipment through professional appearance modelling design, the shell is made of high precision mold stamping forming, generous and delicate, high-end sedate, planetary disc is made of casting forming, numerical control processing technology on structure component processing, transmission gear combination of high-temperature resistant non-metal and metal precision gear, metal heat treatment process of nitriding, can ensure abrasion resistance to prevent the broken shaft axis of rotation, to ensure that the equipment run time at a high speed Smooth and quiet, can watch the device monitor grinding jar can be self-locked locking synchronization at the same time, the operation is convenient, safe and reliable, increase the handheld flip agencies, convenient user take pot and put the pot, more human operation, the product color shell, new vitality to products, and activate the product new life, in line with the international and domestic aesthetic demand, in line with the ergonomics.

C. Parameter

Mode of transmission	Gear transmission
Mode of working	Two and four ball grinding jars work simultaneously
Mode of transmission	Two thirds of the volume of the ball mill jar
Ball mill tank volume	0.05-1L per jar, total volume 0.2-4L
Feed granularity	Soil material≤10mm, and other materials≤3mm
Granularity of discharge	Up to 1 micron
Mode of speed regulation	Infinitely adjustable-speed

Model	Volume(L)	Configurable ball mill specifications	Qty	Configurable vacuum ball mill volume	Locking device (optional automatic)
HPBM-0.4	0.4L	50-100ml	4	50ml	manual
HPBM-1	1L	50-250ml	4	50-100ml	manual
HPBM-2	2L	50-500ml	4	50-250ml	manual
HPBM-4	4L	250-1000L	4	50-500ml	manual

Model	Power supply (single-phase)	Power(kw)	Total time to run the set(min)	Alternating positive and negative running time(min)	Adjustable speed Revolution(rpm) Rotation(rpm)
HPBM-0.4	Single phase 220V-50HZ	0.75	1-9999	1-9999	35-370	70-740
HPBM-1	Single phase 220V-50HZ	0.75	1-9999	1-9999	35-370	70-740
HPBM-2	Single phase 220V-50HZ	0.75	1-9999	1-9999	35-370	70-740
HPBM-4	Single phase 220V-50HZ	0.75	1-9999	1-9999	35-370	70-740

Model	Standard panel (optional intelligent, touch screen)	Lubrication way	Mode of speed regulation	Weight(kg)	Size(Length * width * height)	Noise≤db
HPBM-0.4	ordinary	grease	Frequency control	88	720570530	55±5
HPBM-1	ordinary	grease	Frequency control	90	720570530	60±5
HPBM-2	ordinary	grease	Frequency control	90	720570530	60±5
HPBM-4	ordinary	grease	Frequency control	92	720570530	60±5
