A. Working principle

HPBM series heavy horizontal planetary grinding machine is equipped with four grinding tanks on the same planetary turntable. When the turntable rotates, the grinding tank rotates around the axis of the planetary turntable while rotating around its own axis, making planetary movement. The grinding balls in the tank collide with each other in high-speed motion to grind and polish the product.



B. Technical parameter

Model number	HPBM-20
Grinding tank volume (L)	5L*4
Tank structure	Sealed, fast clip locking structure (company patent)
Grinding tank material	Optional stainless steel, zirconia, alumina, tetrafluoron, nylon, polyurethane, etc
Maximum loading per tank	The product and mill shall not exceed two thirds of the volume
Rotational speed	The maximum revolution is 25-215rpm and the maximum rotation is 50-430rpm
Speed ratio (revolution: rotation)	1:2
Speed regulation mode	Variable frequency speed regulation
Planetary turntable drive mode	Gear drive
Operating voltage	Three-phase 380V, 50HZ
Motor power and frequency conversion power	4KW
Working mode	Two or four tanks working at the same time
Maximum continuous working time	72 hours (timer 0-9999h)
Program control	Intelligent touch screen PLC control, better human-machine interface integration, can freely set the total fixed, forward, reverse, interval standby time, repeated alternating operation, real-time operation equipment can overcurrent, overvoltage, overload protection alarm.
Lubrication method of planetary mechanism (optional)	Automatic lubricating grease device (company patent) : flexible design time cycle, automatic quantitative filling of lubricating grease, solve the problem of wear caused by not timely lubrication of transmission components, extend the service life of equipment.
How to place and remove tanks	Automatic positioning device: It is convenient for the equipment to place and take tanks in the designated position, which improves the production efficiency.
Braking mode	The dry electromagnetic brake device is used to ensure accurate positioning in the process of placing and taking tanks, which not only improves efficiency but also ensures the personal safety of operators. It solves a series of uncontrollable after-sales problems caused by the use of brake motors to brake, and the after-sales cost is low.
Device host design 2 points of attention	The cover above the motor of the equipment is designed as a movable plate, which is convenient for the installation and replacement of the motor. The middle position of the bottom of the frame is reinforced with reinforced channel steel, which is convenient for forklift trucks to move from both ends of the equipment.
Reference size (MM)	1600（L）*8200（W）*1000（H）
Reference weight (KG)	710



C. Equipment configuration list and main accessories details

1、Equipment configuration list

Name	Equipment type	Qty
Horizontal planetary ball mill	HPBM-20	1 Unit
Grinding tank	5L ball mill tank	4 Pcs
Grinding ball	Provided by customer	4 Set
Self-lubricating system	HPBM-20 for matching (optional)	1 Set
Jacking device	HPBM-20 for matching	4 Set
Hexagonal plate hand		1 Pc
Specification	HPBM-20	1 Portion
Certificate of conformity	HPBM-20	1 Portion
Delivery list	HPBM-20	1 Portion



2、Details of major parts

Serial number	Name	Brand
1	Electric machine	Dedon
2	Frequency changer	Delixi
3	Bearing	Harbin
4	Position proximity switch	Omron
5	Self-lubricating system	TMAXCN



D. Working environment and maintenance

1. Indoor, below 1000 meters above sea level, no corrosive gas, dust and direct sunlight, environment temperature: -10 ~ +50℃, humidity ≤95%.

2. The company provides voltage, air source: three-phase 380V±10%, the lubrication system intake range of 0.6~0.8mpa.

3. Regularly check whether the screws of the moving parts of the equipment structure are loose and misplaced.

4. Regularly check the maintenance of equipment and electrical control line power cables are damaged, wiring terminals are loose.

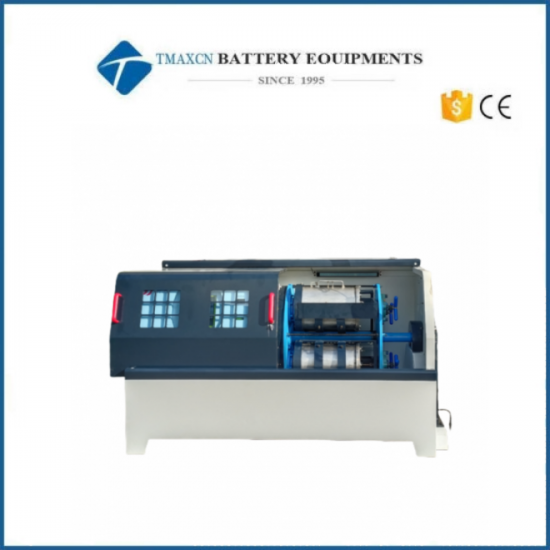

E. Equipment reference picture:
