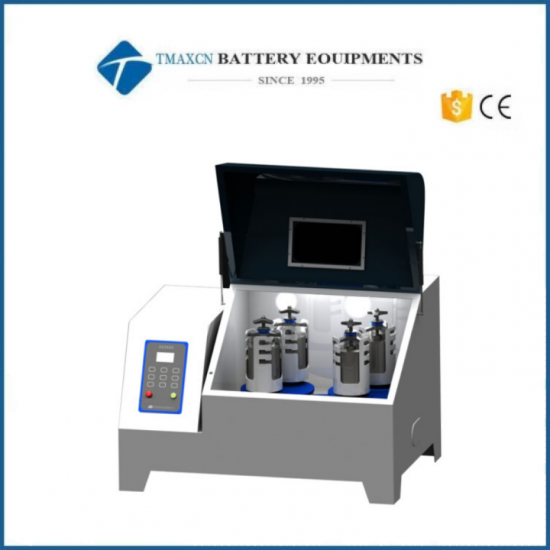

0.4L 1L 2L 4L 6L High-speed Square Double Planetary Ball Mill

0.4L 1L 2L 4L 6L High-speed Square Double Planetary Ball Mill





Intelligent panel control

Personnel fool operation, more convenient, simple, glass touch panel more grade.





Safety cover door

Protect the inside of the ball mill.





Cooling fan hole

High-speed operation, effectively enhance the body air flow speed, heat dissipation speed to ensure the effective long-term stable operation of the machine.





Planetary mechanism

The whole forming main plate, the use of new pressure rod, elegant and beautiful; Stable speed, high efficiency, finer grinding particles.



Introduction

Double planetary structure to realize the large planetary disk drives the small planetary disk movement, the radius of rotation and the rotation speed of the grinding jar compared with the ordinary planetary ball mill with the same specifications has been enlarged, the centrifugal force on the grinding balls increases exponentially, and the collision, shear, friction between the grinding balls increases significantly, which improves the grinding effect and grinding efficiency, and part of the material can be milled to nanometer level. Double planetary ball mill is a typical high-efficiency, high-energy ball mill.



Features

Equipment shell professional appearance design and industrial modeling, the use of thickened steel plate welding molding process, high strength, impact resistance, deformation resistance, atmospheric stability; mechanical parts of the strict heat treatment process, the use of CNC machining process, the transmission gear selection of special materials and precision gears to ensure that the equipment running at high speeds, stable, safe, low noise.



Product performance

Transmission mode	Gear drive
Working method	Two or four ball milling jars work at the same time
Maximum loading capacity	Two thirds of the volume of the ball milling jar
Volume of ball milling jar	Each jar 0.05L-1.5L, total volume 0.2L-6L.
Feeding granularity	Soil material ≤10mm, other materials ≤3mm
Discharge size	Minimum 0.1um
Rotation speed ratio (revolution: rotation)	See the main parameters of planetary ball mill
Speed (rotation)	See the main parameters of planetary ball mill
Speed control mode	Brand frequency converter stepless speed regulation



Product features



1. Equipment shell

Professional appearance design and industrial modeling, the use of thickened steel plate welding molding processing technology, high strength, impact resistance, anti-deformation atmosphere stable, to ensure the consistency and repeatability of the test.



2. Machined parts

The material is strictly heat-treated process, using CNC machining process.



3. Transmission gear

Precision gears made of special materials are selected to ensure smooth, safe and low noise when the equipment is running at high speed.



Model	Volume	Matched jar volume	Amount	Matched jar	Locking device
DPBM-0.4	0.4L	50-100ml	4	50ml vacuum ball milling jars	Self-locking
DPBM-1	1L	50-250ml	4	50-100ml vacuum ball milling jars	Self-locking
DPBM-2	2L	50-500ml	4	50-250ml vacuum ball milling jars	Self-locking
DPBM-4	4L	250-1000ml	4	50-500ml vacuum ball milling jars	Self-locking
DPBM-6	6L	1-1.5L	4	50-1000ml vacuum ball milling jars	Self-locking



Model	Power supply	Motor power(kW)	Run the set total time(min)	Forward and backward alternate running times(min)	Adjustable speed
					Revolution(rpm)	Rotation (rpm)
DPBM-0.4	Single phase 220V-50HZ	1.5	1-9999	1-999	70-560	140-1120
DPBM-1		1.5	1-9999	1-999	70-560	140-1120
DPBM-2		1.5	1-9999	1-999	70-560	140-1120
DPBM-4		1.5	1-9999	1-999	70-560	140-1120
DPBM-6		1.5	1-9999	1-999	70-560	140-1120



Model	Standard panel (touch screen optional)	Lubrication mode	Speed regulation mode	Weight(kg)	Dimension L*W*H(mm)	Noise≤db
DPBM-0.4	Intelligence	Grease	Variable frequency speed regulation	245	920*660*640	65±5
DPBM-1	Intelligence	Grease		245	920*660*640	65±5
DPBM-2	Intelligence	Grease		245	920*660*640	65±5
DPBM-4	Intelligence	Grease		245	920*660*640	65±5
DPBM-6	Intelligence	Grease		245	920*660*640	65±5
