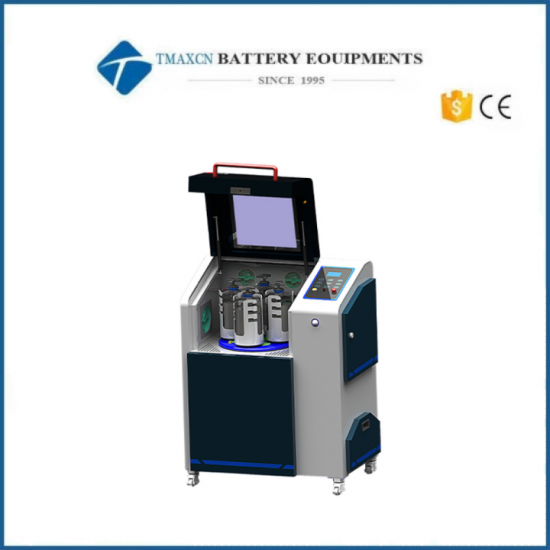

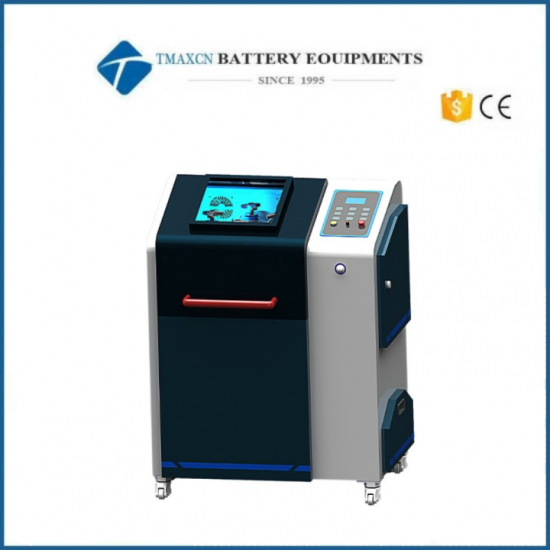

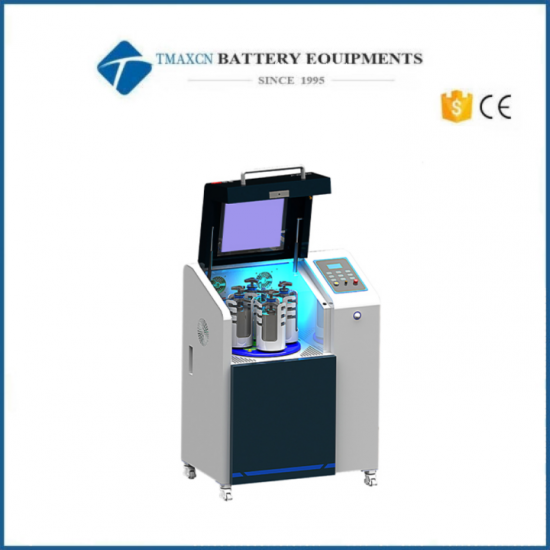

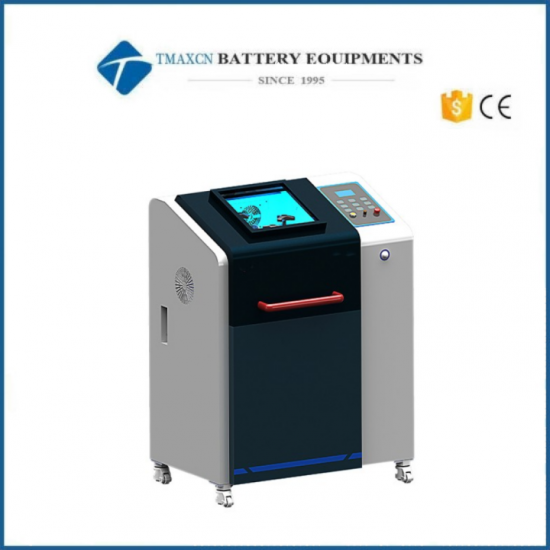

Pull-out Drawer Planetary Fine Grinding Ball Mill Convenient for Storing Materials



1. Sound-absorbing foam to minimize the noise

2. Good cooling effect of ball mill chamber through internal and external convection circulation system.

3. Three-claw self-locking staring device.

4. High load-bearing universal Foma casters, beautiful, convenient to adjust the level of equipment and handling

5. Safety cover door

6. Pneumatic pole

7. Human body sensor light

8. Pull-out drawer, convenient for storing materials, grinding cans and related tools, etc.



Characteristic

Equipment through the professional appearance design, the shell using high-precision mold stamping, high-precision laser cutting, CNC bending molding, generous and delicate, high-end and stable, planetary disk casting molding, structural components processing using CNC machining process, transmission gear selection of high temperature wear-resistant non-metallic and metal combination of precision gears, nitriding metal heat treatment process, to ensure that rotating parts of the axle wear prevention of broken shafts to ensure that the equipment is stable and quiet when running at high speeds. High-speed operation is smooth and quiet, the grinding canister staring device stares at the grinding canister at the same time can be synchronized with the self-locking anti-loosening, easy to operate, safe and reliable, the shell of the product color matching, give the product new vitality, activate the new life of the product, in line with international and domestic aesthetic demand, in line with ergonomics.



Product performance

Transmission mode	Gear drive
Working method	Two or four ball milling jars work at the same time
Maximum loading capacity	Two thirds of the volume of the ball milling jar
Volume of ball milling jar	Each jar 0.05L-3L, total volume 0.2L-12L.
Feeding granularity	Soil material ≤10mm, other materials ≤3mm
Discharge size	Minimum 0.1um
Rotation speed ratio (revolution: rotation)	See the main parameters of planetary ball mill
Speed (rotation)	See the main parameters of planetary ball mill
Speed control mode	Brand frequency converter stepless speed regulation





1. Modeling design

The shell of the equipment adopts high-precision mold stamping molding, generous and exquisite, high-end and stable, for product color matching, giving the product new vitality, in line with ergonomics.



2. Safety electromagnet adsorption door

Equipment door closed electromagnet suction, shutdown manually open the electromagnet disconnect, to prevent the equipment running manually open the cover at the same time to prevent the equipment cavity of foreign objects flying out of the body hurt.



3. Bottom sealing plate protection

The bottom of the equipment is installed with sealing plate and designed with air vent to prevent other materials and belt ash from leaking out and polluting the customer's working environment.

Model	Volume	Matched jar volume	Amount	Matched vacuum jar	Locking device
PBM-C-1	1	50-250ml	4	50-100ml	Self-locking
PBM-C-2	2	50-500ml	4	50-250ml	Self-locking
PBM-C-4	4	250-1000ml	4	50-500ml	Self-locking
PBM-C-6	6	1-1.5L	4	50-1000ml	Self-locking
PBM-C-8	8	1-2L	4	50-1500ml	Self-locking
PBM-C-10	10	1-2.5L	4	50-2000ml	Self-locking
PBM-C-12	12	1-3L	4	1-2L	Self-locking



Model	Power supply	Motor power(kW)	Run the set total time(min)	Forward and backward alternate running times(min)	Adjustable speed
					Revolution(rpm)	Rotation (rpm)
PBM-C-1	220V-50HZ	0.75	1-9999	1-999	35-370	70-740
PBM-C-2	220V-50HZ	0.75	1-9999	1-999	35-370	70-740
PBM-C-4	220V-50HZ	0.75	1-9999	1-999	35-370	70-740
PBM-C-6	220V-50HZ	0.75	1-9999	1-999	35-370	70-740
PBM-C-8	220V-50HZ	1.5	1-9999	1-999	35-320	70-640
PBM-C-10	220V-50HZ	1.5	1-9999	1-999	35-320	70-640
PBM-C-12	220V-50HZ	1.5	1-9999	1-999	35-320	70-640



Model	Standard panel (touch screen optional)	Lubrication mode	Speed regulation mode	Weight(kg)	Dimension L*W*H(mm)	Noise≤db
PBM-C-1	Intelligence	Grease	Variable frequency speed regulation	155	870*550*1150	55±5
PBM-C-2	Intelligence	Grease		156	870*550*1150	55±5
PBM-C-4	Intelligence	Grease		157	870*550*1150	55±5
PBM-C-6	Intelligence	Grease		158	870*550*1150	55±5
PBM-C-8	Intelligence	Grease		175	940*620*1200	60±5
PBM-C-10	Intelligence	Grease		178	940*620*1200	60±5
PBM-C-12	Intelligence	Grease		180	940*620*1200	60±5
