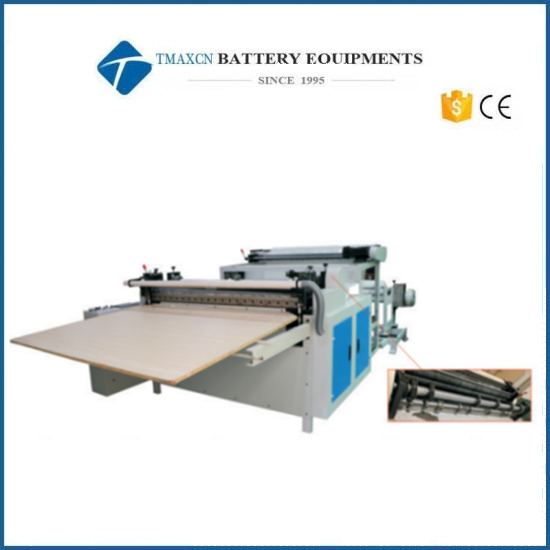

1-1580mm Width Coiled Strips Positioning And Quantitative Cutter Cutting Machine

Model Number:
TMAX-HZX-800
Type:
Automatic
Net Weight:
800-2100KG
Compliance:
CE certificate
Warranty:
One Year limited warranty with lifetime support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 days

contact now

Email : David@battery-equipments.com
Wechat : Wechat 13506084915

DESCRIPTION

1-1580mm Width Coiled Strips Positioning And Quantitative Cutter Cutting Machine

Feature

Features: This machine mainly aims at positioning and quantitative cutting of coiled strips. The equipment is driven by high precision stepping motor and controlled by PLC micro-computer.

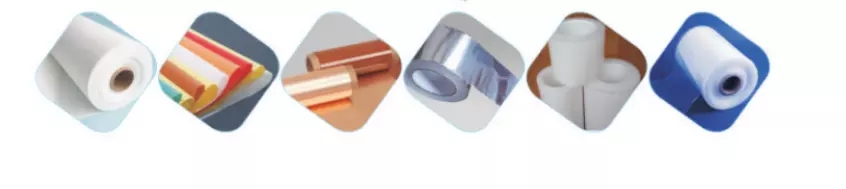

Cuttable materials: PVC film, PE film, non-woven fabric, insulating paper, copper foil, aluminum foil, gold and silver cardboard, plain rainbow paper, plastic sheet, etc.

cutting material

Specification

Model	Cutting Tool	Speed (mm)	Weight(kg)	Cutting Width (mm)	Cutting Length (mm)	Precision (mm)	Cutting Thickness(mm)
HZX-800	Upper and lower knives	5-50	800	1-780	5-50000	0.2	0.05-0.6
HZX-1000	Upper and lower knives	5-60	850	1-980	5-50000	0.2	0.05-0.6
HZX-1200	Upper and lower knives	5-70	1500	1-1180	5-50000	0.2	0.05-0.6
HZX-1400	Upper and lower knives	5-80	2000	1-1380	5-50000	0.2	0.05-0.6
HZX-1600	Upper and lower knives	5-90	2100	1-1580	5-50000	0.2	0.05-0.6

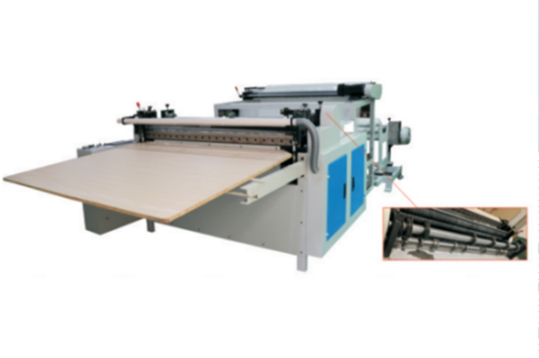

cutting machine

battery equipment
