1-660mm Width Fabric/Foil/PVC/Sheet Cutter Cutting Machine
Model Number:
TMAX-HZX-400DType:
AutomaticDimension(L*W*H):
L800*W650*H390mmNet Weight:
55KGCompliance:
CE certificateWarranty:
One Year limited warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

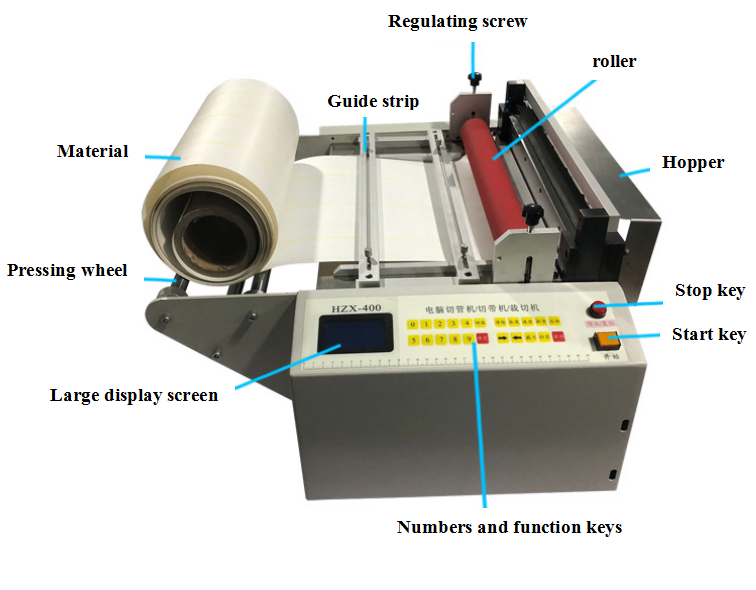

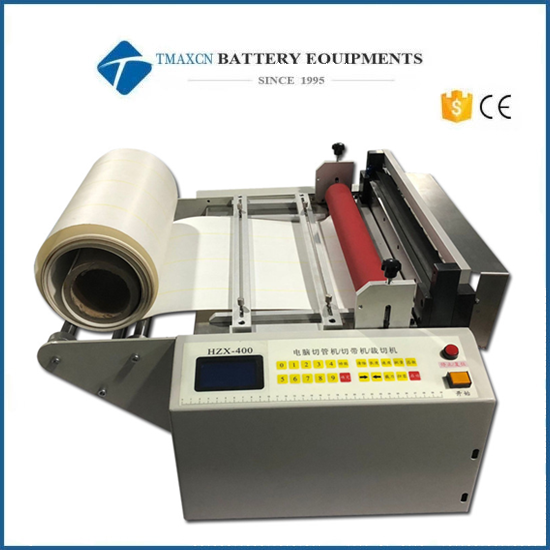

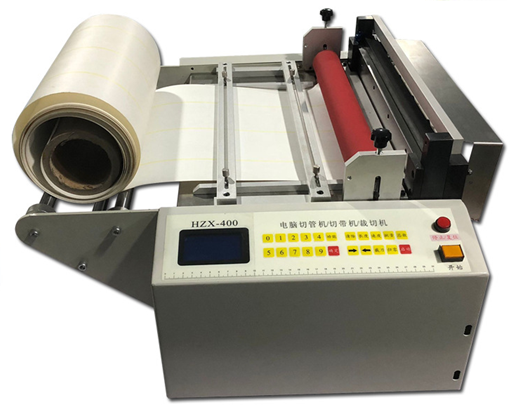

1-660mm Width Fabric/Foil/PVC/Sheet Cutter Cutting Machine
Feature
Cutting speed:100 times per minute (50mm length,for example)
Cuttable materials: non-woven fabric, wallpaper edge, PVC film, reflective film, copper foil, aluminum foil, glass cloth, fiber cloth, mobile phone film, plastic sheet, bubble film, velvet, etc.
Specification
|
Model |
Cutting Tool |
Speed (mm) |
Weight (kg) |
Cutting Width (mm) |
Cutting Length (mm) |
Precision (mm) |
Cutting Thickness (mm) |
|
HZX-400 |
Upper and lower knives |
34 |
50 |
1-360 |
0-9999.9 |
0.1 |
0.5 |
|
HZX-500 |
Upper and lower knives |
34 |
75 |
1-460 |
0-9999.9 |
0.1 |
0.5 |
|
HZX-600 |
Upper and lower knives |
34 |
83 |
1-560 |
0-9999.9 |
0.1 |
0.7 |
|
HZX-700 |
Upper and lower knives |
34 |
92 |
1-660 |
0-9999.9 |
0.1 |
0.8 |
