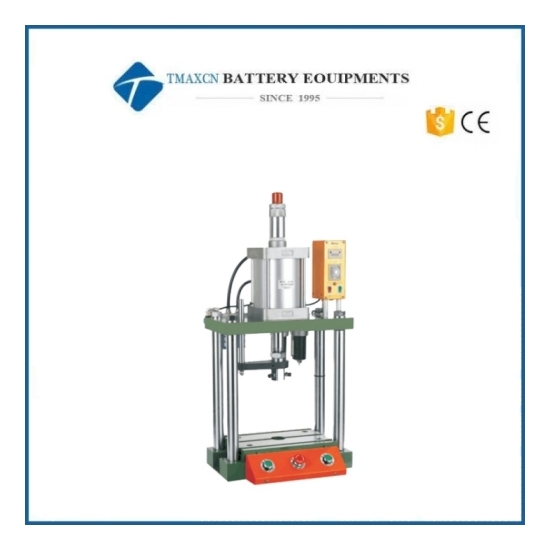

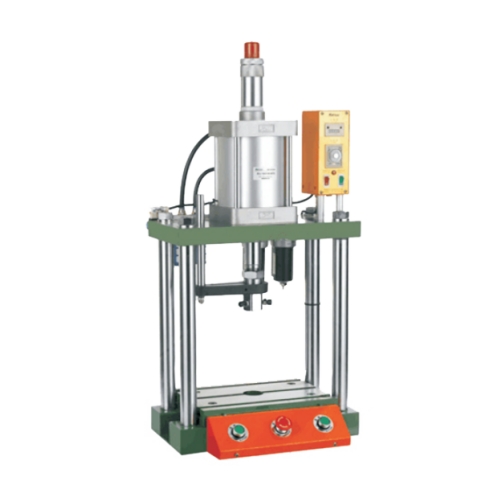

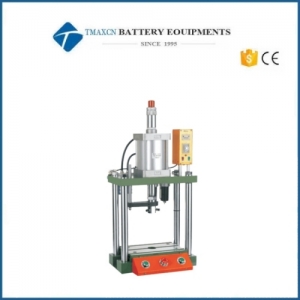

100-2200KG Laboratory Thin Metal Sheet Pneumatic Bending Press Machine
Model Number:
TMAX-BSW01Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
100-2200KG Laboratory Thin Metal Sheet Pneumatic Bending Press Machine
Introduction
Pneumatic press, powered by compressed air, suitable for press fitting of electronics,instruments, instruments cameras, jewelry, hardware, cutting, punching, blanking, forming, bending, thinning, stripping, coiling, Riveting and other processes; suitable for processing of non-ferrous metals.
Technical parameter
|
Model |
BSW01-100kg |
BSW01-300kg |
BSW01-500kg |
BSW01-800kg |
BSW01-1500kg |
BSW01-2200kg |
|
|
Nominal pressure(T) |
0.1 |
0.3 |
0.5 |
0.8 |
1.5 |
2.2 |
|
|
Maximum working pressure of liquid(Mpa) |
0.7 |
0.7 |
0.7 |
0.7 |
0.7 |
0.7 |
|
|
Maximum opening distance mm |
250 |
250 |
250 |
300 |
300 |
300 |
|
|
Maximum stroke mm |
100 |
100 |
100 |
100 |
100 |
100 |
|
|
Workbench size |
Left and right mm |
300 |
300 |
300 |
350 |
350 |
350 |
|
Before and after mm |
200 |
200 |
200 |
250 |
250 |
250 |
|
|
Height of machine mm |
800 |
800 |
850 |
1000 |
1050 |
1100 |
|
