hydraulic press brake

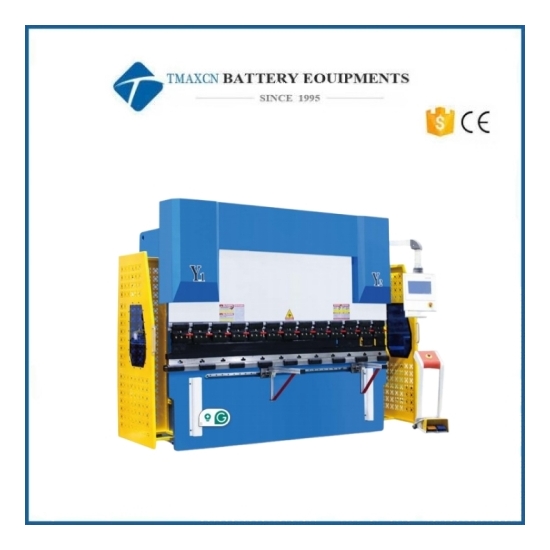

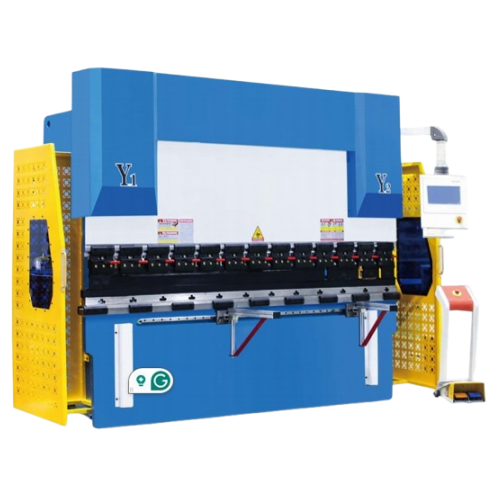

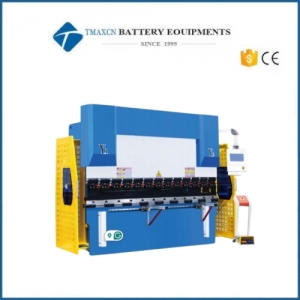

40T-600T Heavy Duty Hydraulic Torsin-Bar CNC Press Brake Bending Machine

Model Number:
TMAX-WC67K
Compliance:
CE certificate
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days

contact now

Email:David@battery-equipments.com
Whatsapp:+86 18659217588
Wechat:18659217588

DESCRIPTION

40T-600T Heavy Duty Hydraulic Torsin-Bar CNC Press Brake Bending Machine

Features

The main machine adopts the structure of series WC67Y hydraulic press brake

High precision,high efficiency CNC Torsion Bar Synchro Press Brakes

Holistic welding structure

Stabilizes left and right balance with help of the mechanical Torsion Bar

Back gauge is drove by servo motor and performance

Ball screw and linear guide

Technical parameter

Specification can be customized as your actual needs!

Model	Nominal force	Worktable length	Columns distance	Throat depth	Slider stroke	Max. height	Power	Dimension
Unit	KN	mm	mm	mm	mm	mm	KW	LWH, mm
40T/2200	400	2200	1870	230	100	320	4	220012001900
40T/2500	400	2500	1960	230	100	320	4	250012001900
50T/2500	500	2500	1960	230	100	320	5.5	250012002000
63T/2500	630	2500	1960	250	120	320	5.5	250013002210
63T/3200	630	3200	2600	250	120	320	5.5	320013002210
80T/2500	800	2500	1960	300	120	320	7.5	250014002300
80T/32000	800	3200	2600	320	120	350	7.5	320015002300
80T/4000	800	4000	3160	320	120	350	7.5	400015002400
