100 mm width Battery Micrometer Adjustable Blade Film Applicator

  • Model Number:

    EQ-Se-KTQ-100
  • Dimension(L*W*H):

    100mm width
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Delivery Time:

    3 days
contact now
DESCRIPTION

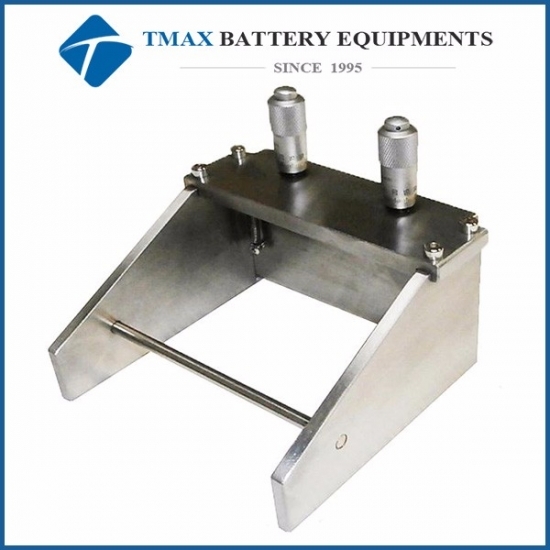

 100 mm width Battery Micrometer Adjustable Blade Film Applicator (Film casting doctor blade)

1. Adjustable Film Applicator - This unique wet film applicator features micrometer heads for knife blade adjustment.
2. The operator sets the blade clearance by adjusting the micrometers. This is excellent tool to make quality film for material research laboratories to make ceramic tape casting, battery electrodes, and various coating at lower cost. Stainless steel knife blade with precision ground edge.

SPECIFICATIONS:

Features

1. 100 mm standard width.
2. Make wet film thickness between 0 - 3500 microns.
3. Micrometer head's controllable accuracy is 10 microns.
4. Made of SS304 stainless steel.

Compliance

CE Certified

Warranty

Two years limited warranty with lifetime technical support

Net Weight

1kg


Film Applicator






1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.




1. Standard exported package: Internal anticollision protection, external export wooden box packaging.

2. Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3. Responsible for the damage during the shipping process, will change the damage part for you for free.
