150mm Width Double Doctor Blade Micrometer Film Applicator Coater

  • Model Number:

    EQ-Se-KTQ-150D
  • Dimension(L*W*H):

    150mm width
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Delivery Time:

    3 days
contact now
DESCRIPTION

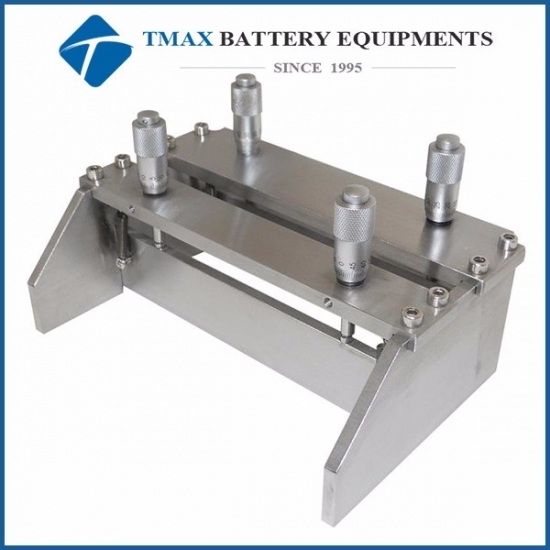

150mm Width Double Doctor Blade Micrometer Film Applicator Coater (Film casting doctor blade)

EQ-Se-KTQ-150D is a double blade wet film applicator with adjsutmentable thickness, which can make film casting more uniform. This is an excellent tool to make higher quality film for tape casting, battery electrodes, and various coating at lower cost. Stainless steel knife blade with precision ground edge.

SPECIFICATIONS:

Features

1. Two blades with adjustable height from 0 - 6 mm;
2. Width: 150 mm;
3. Make wet film thickness between 0 - 6000 microns;
4. Micrometer head's controllable accuracy is 10 microns.

Compliance

CE Certified

Warranty

Two years limited warranty with lifetime technical support



Film Applicator






1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.




1. Standard exported package: Internal anticollision protection, external export wooden box packaging.

2. Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3. Responsible for the damage during the shipping process, will change the damage part for you for free.
