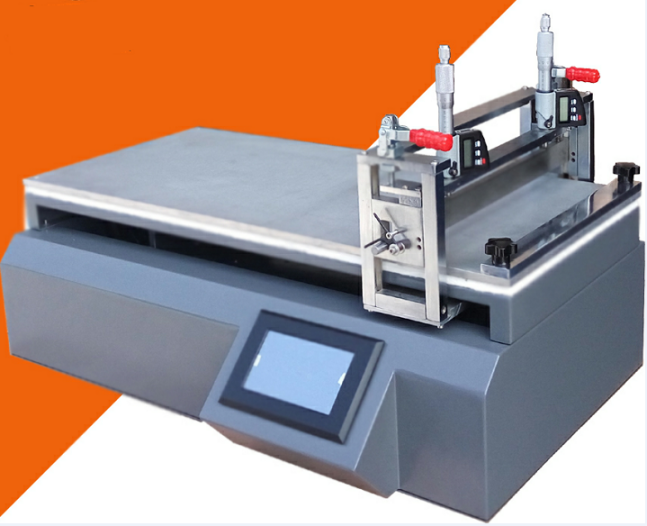

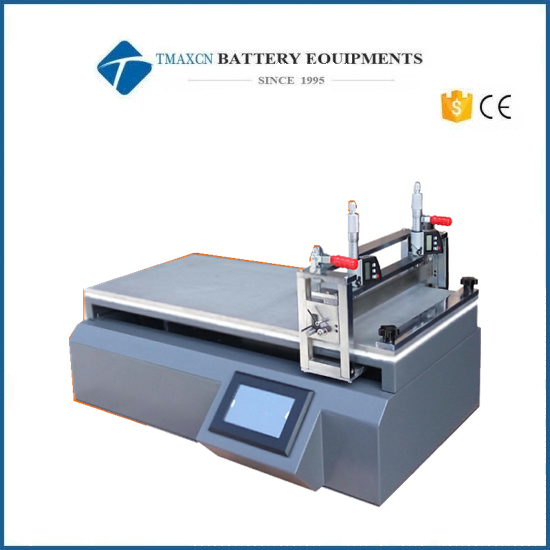

Laboratory Heatable Bar Coater and Film Applicator Coating Machine
Model Number:
TMAX-TB-B1Net Weight:
52KGCompliance:
CE certificateWarranty:
One Year limited warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Laboratory Heatable Bar Coater and Film Applicator Coating Machine
Introduction
Since the main factors affecting the coating film are the coating speed and the pressure applied to the film applicator, the coatings applied manually are often inconsistent, especially the differences between different people are even greater. This brings difficulties to comparing test results between samples. The company's automatic bar/film applicator coater is carefully designed to allow operators to easily coat precise wet films on different substrates, which greatly improves the reproducibility of the film.
By controlling the speed and stable pressure to ensure the coating effect, to ensure the uniformity and stability of the coating, coating experiments can be carried out on various materials such as paper, plastic, metal, PVC, PET, cloth, and aluminum alloy plates.
Technical parameters
|
Control method |
Touch screen control |
|
Applicator accuracy |
0.003mm |
|
Wire rod accuracy |
0.001mm, change the thickness according to the wire rod model |
|
Coating thickness |
0-5mm applicator can be raised and lowered |
|
Coating speed |
2-180mm/sec (infinitely variable speed) |
|
Coating size |
300*400mm |
|
Heating temperature |
Room temperature -200℃ |
|
Coating time |
Digital display, different lengths, different speeds, time precision control |
|
Film applicator |
Length: 400mm; material/stainless steel (the thickness can be changed at will) |
|
Power supply |
Voltage 220V 50HZ |
|
Power |
1200W |
|
Dimensions |
L690*W410*H520 mm |
|
weight |
NT52kg |
