100MM Lab Precision Flat Slot Die Coater Coating Machine With Heating Vacuum Chunk

  • Model Number:

    TMAX-PD100
  • Net Weight:

    30KG
  • Compliance:

    CE certificate
  • Warranty:

    One Year limited warranty with lifetime support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 Days
contact now
DESCRIPTION

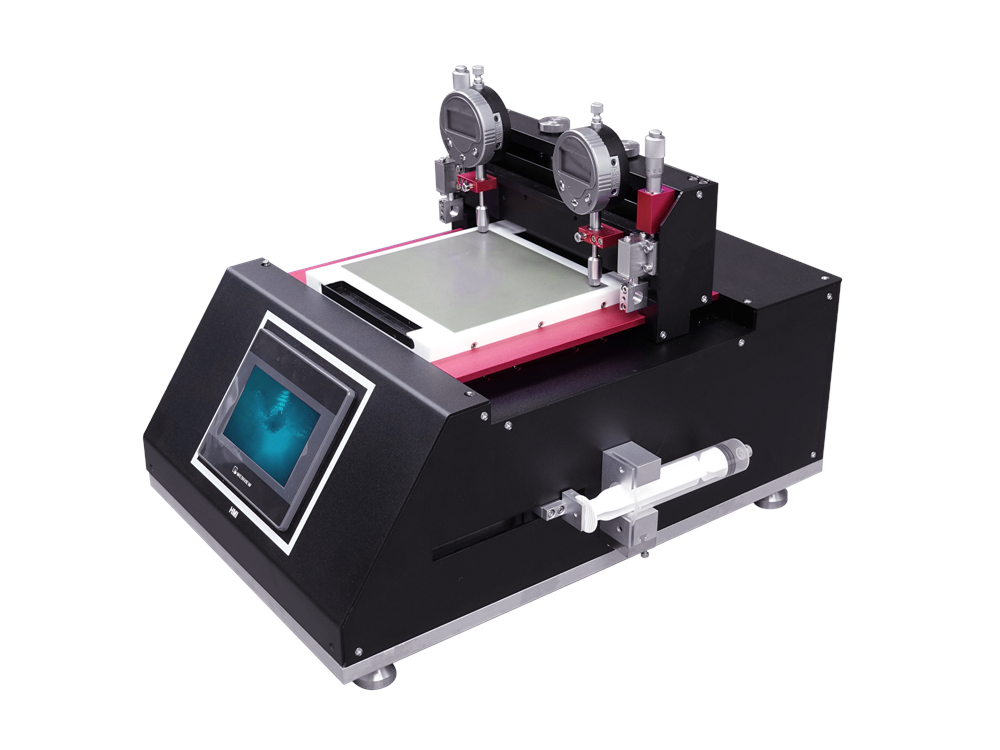

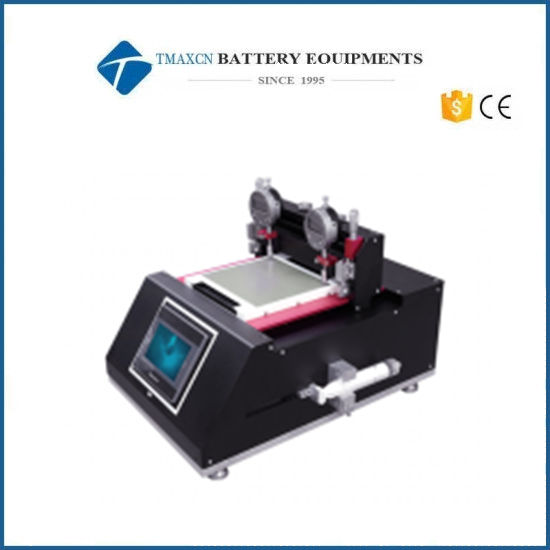

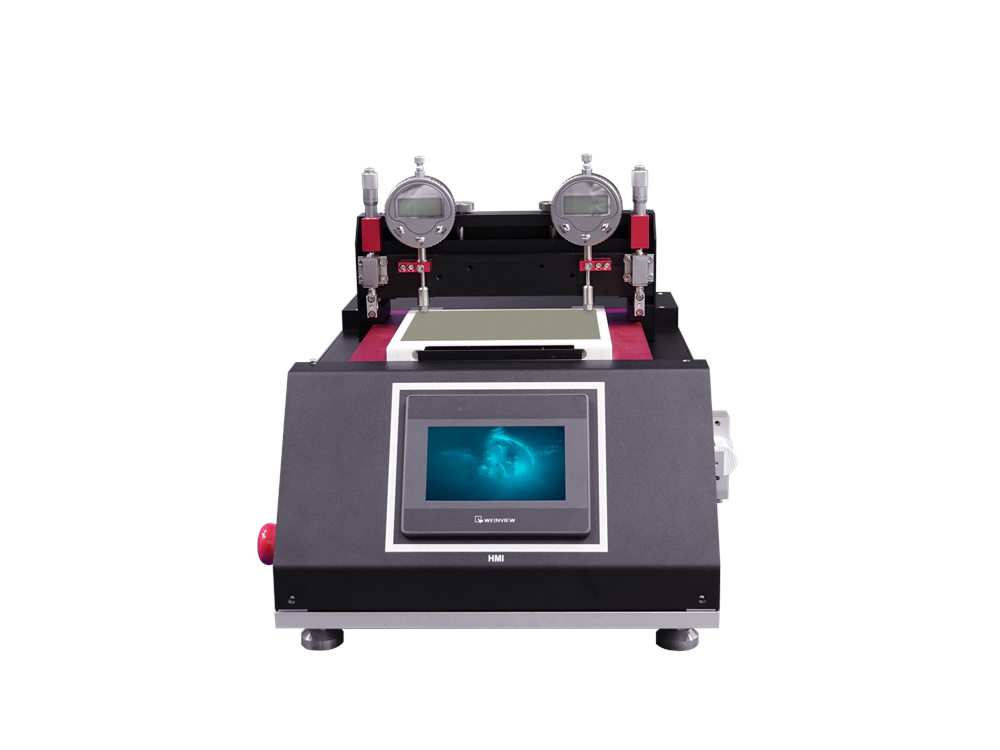

100MM Lab Precision Flat Slot Die Coater Coating Machine With Heating Vacuum Chunk


TMAX-PD100 is a precision flat slot die with a 100 mm width coating head. It is an excellent tool to research film coating for OLED, perovskite solar cells, and fuel cell proton exchange membrane.


SPECIFICATIONS

Working Power

110V - 240V AC 50/60Hz for worldwide use

500W

The machine has 24VDC input and driving by 24VDC motor, which can be used under Ar atmosphere glovebox

Slot Died head

100 mm width slot die head capacity

50 mm and 25 mm width slot coating head is available at the extra cost

Min. coating thickness: 5 microns (depended on slurry viscosity)

Syringe Pump

Built-in syringe pump with the variable speed  at the range from 0.01mm/s to 5.0 mm/s

Three syringe containers are included with 10ml, 20ml, 30ml respectively

Micrometer Head



Two-micrometer heads are built-in travel rod of the coater to adjust the gap between slot die and substrate

Digital micrometer head is available as an option at an extra cost

Tavel Speed & Length

Travel Speed: 1 - 10 mm/sec variable via touch screen control panel

Max. Coating area: 100 mm W x 100 mm L

Heated Vacuum Chunk



1. Vacuum chuck made of aluminum alloy with the small hole

2. The small vacuum pump is built inside coater driven by 24DC motor

3. Vacuum chuck Area:  150mm (L) x 130mm (W)

4. Heating elements are installed inside chuck which can reach 120ºC Max.

5. Precision digital temperature controller with +/- 1ºC accuracy

6. One high temperature temped glass plate is put on the vacuum chuck, and substrate will be put on the top

Control Panel

4" color touch screen panel to set coating speed, heating temperature, and slurry pump speed

Product Dimensions

440mm L x 340mm W x 300mm H

Net Weight

26 kg

Shipping Weight

50 Kg
