10T Manual Hydraulic Lab Press Machine

  • Model Number:

    TMAX-2Z10T
  • Dimension(L*W*H):

    230*170*380mm
  • Net Weight:

    About 20kg
  • Compliance:

    CE certificate
  • Warranty:

    Two years limited warranty with lifetime support
  • Delivery Time:

    3 days
contact now
DESCRIPTION

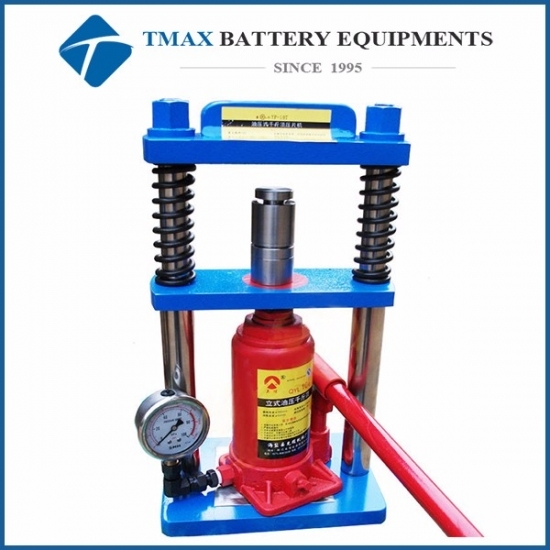

10T Manual Hydraulic Lab Press Machine

TMAX-2Z10T is an economic manual pressing machine up to 10 metric tons for materials / chemistry research laboratories to prepare the compound ceramic sample. YLJ-10 has built in Hydraulic jack with auto return function. It is suitable to be operated in a glove-box under oxygen and inert gas.

SPECIFICATIONS:

Max. Pressure

10 metric tons Max.
Pressure gauge is built in

Gauge Pressure Value to Force Conversion

1.       Notes:

2.       Displayed Pressure Value to Actual Applied Force Conversion: 1 MPa = 0.6 Ton

3.       The actual force applied on the Hydraulic Cylinder (Ton) equal to the force applied on your working piece

4.       For calculating the actual pressure (MPa) applied on your working piece, please follow the equations in below:

          P = T/(πr^2) x g x 10

1.       P: Pressure (MPa) applied on your working piece

2.       T: Force (Ton) applied on the Hydraulic Cylinder

3.       g: Standard gravity. g ≈ 9.8 m/s2

4.       π: ~3.14

5.       r: Radius (cm) of the working piece

6.       *1 Metric Ton = 1000 kg; 1 MPa ≈ 10 kgf/cm2

Pump

Build-in Hydraulic Pump

Warranty

Two years limited warranty with lifetime support

Bottom Hydraulic Cylinder Travel Distance

Standard 0-120 mm, opitional other distance

Max Lifting Height

120mm

Dimensions of Machine

230*170*380mm

Compliance

CE Certified

Net Weight

20 kg

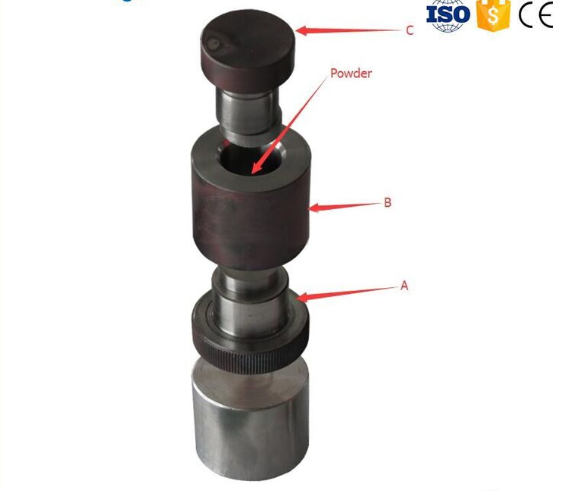

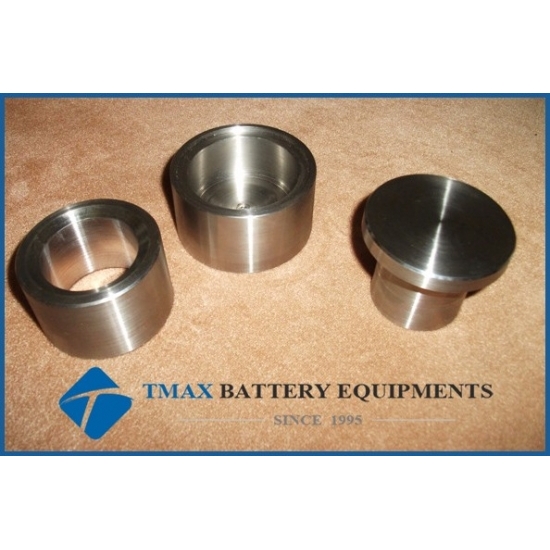

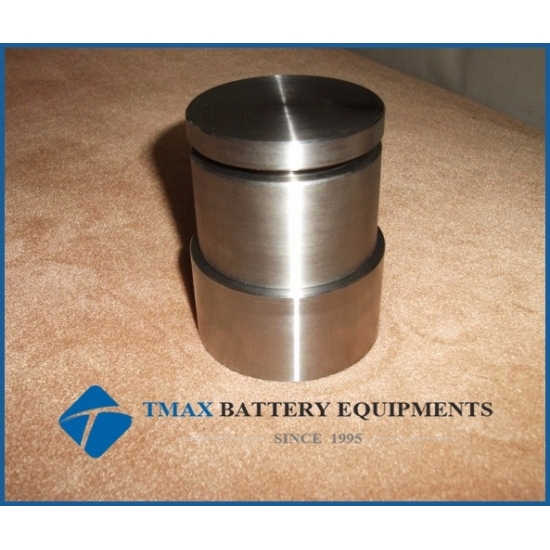

Press Dies

Pressing dies with various diameters(6-60mm Dia) are available upon request

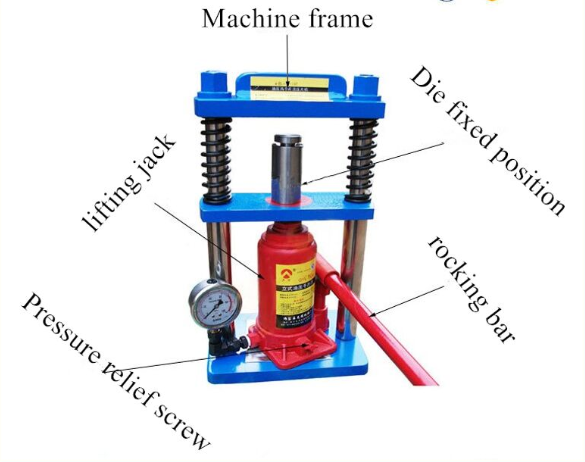

   Hydraulic Press Machine






 battery equipment

1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
