20T Desktop Electric Hydraulic Laboratory Press Machine

  • Model Number:

    YLJ-20AH
  • Dimension(L*W*H):

    340mm(L) x 390mm(W) x 490mm(H)
  • Net Weight:

    About 36kg
  • Compliance:

    CE certificate
  • Warranty:

    Two years limited warranty with lifetime support
  • Delivery Time:

    3 days
contact now
DESCRIPTION

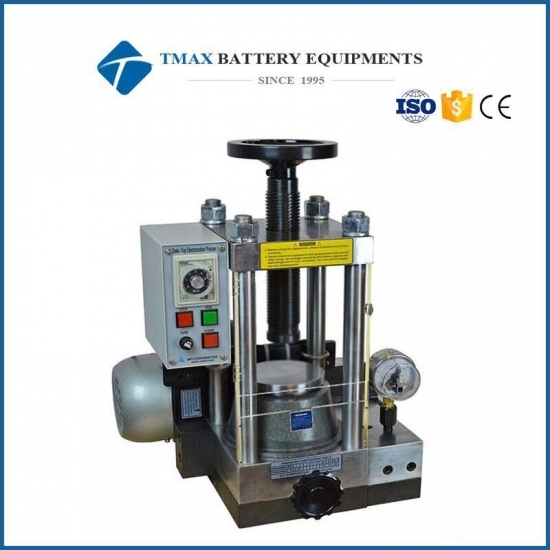

20T Desktop Electric Hydraulic Laboratory Press Machine


YLJ-20AH is a electric hydraulic pressing machine with pressure capability up to 20 metric tons for preparing compound or ceramic sample faster and easier. YLJ-20AH has a built-in electric hydraulic pump with automatic pressure limit switch and timer.

It is an excellent tool for material / ceramic / chemistry laboratories to make larger pellet samples.


SPECIFICATIONS:

Normal Working Pressure Range

0~20 Metric Tons

Gauge Pressure Value to Force Conversion





Gauge Displayed Pressure Value (Mpa)

5

10

15

20

25

30

35

40

Actual Force Applied on the Hydraulic Cylinder (ton)

2.5

5

7.5

10

12.5

15

17.5

20

Notes:

·         Displayed Pressure Value to Actual Applied Force Conversion: 1 MPa = 0.5 Ton

·         The actual force applied on the Hydraulic Cylinder (Ton) equal to the force applied on your working piece

·         For calculating the actual pressure (MPa) applied on your working piece, please follow the equations in below:

          P = T/(πr^2) x g x 10

o    P: Pressure (MPa) applied on your working piece

o    T: Force (Ton) applied on the Hydraulic Cylinder

o    g: Standard gravity. g ≈ 9.8 m/s2

o    π: ~3.14

o    r: Radius (cm) of the working piece

o    *1 Metric Ton = 1000 kg; 1 MPa ≈ 10 kgf/cm2

Pressure Stability

1MPa /10min

Power

·         Standard: 220V AC 50/60Hz ( single phase ) 180W

·         Optional: Please order 1000W 110V-220V transformer for using under 110V

Electric Hydraulic Pump

·         Pressure gauge with built in pre-stable pressure switch ( accuracy +/-0.5% FS)

·         Pressure load will stop when pressure reaches pre-setting point

Bottom Hydraulic Cylinder TravelDistance

0 - 20 mm

Top Support Screw Adjustable Height

180 mm


Protection Cover

·         Transparent plastic for safety

·         Note: Must close the protection door during pressing

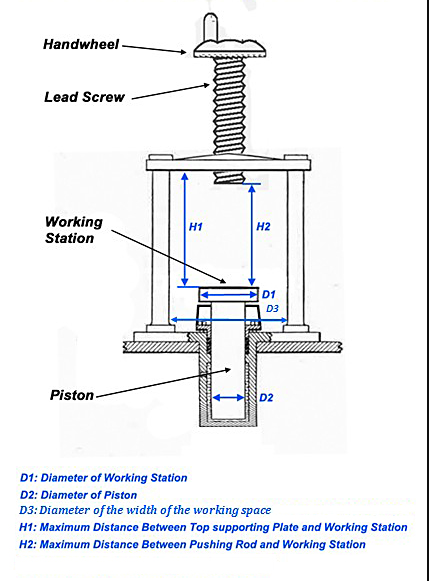

Dimensions of Working Space Under Frame


D1: 98mm
D2: 87mm
D3: 105mm
H1: 150mm
H2: 120mm

Overall Dimension

340mm(L) x 390mm(W) x 490mm(H)

Net Weight

36 kg

Press Dies

·         Pressing dies with various diameters are available upon request at extra cost

Warranty

·         Two years limited warranty with lifetime support

Compliance

·         CE Certified

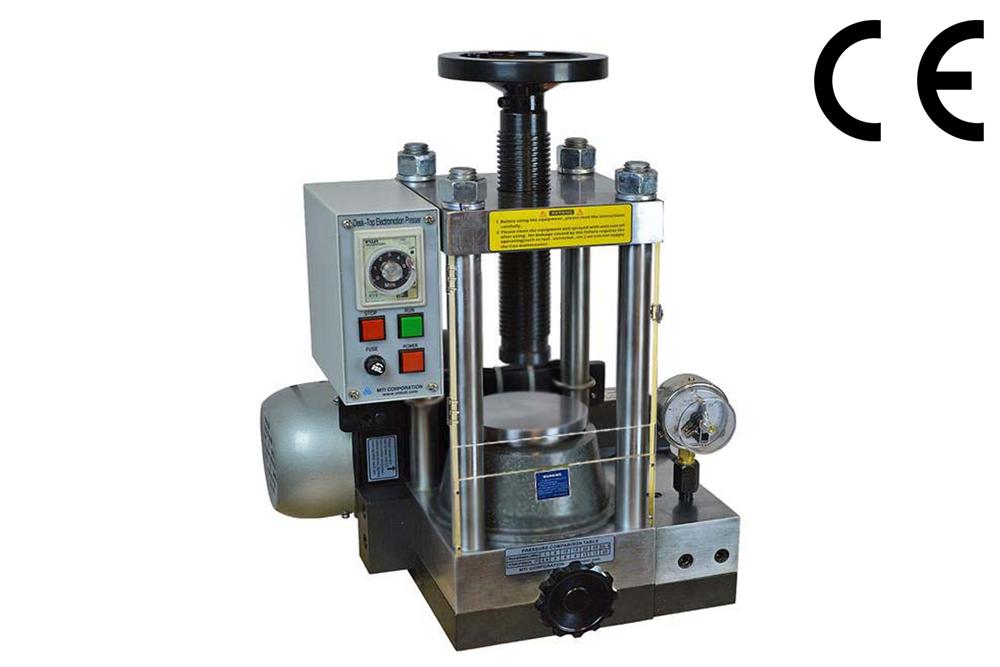

   Hydraulic Press Machine




 battery equipment

1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
