40T Desktop Manual Hydraulic Laboratory Dry Pressing Machine

  • Model Number:

    TMAX-40T
  • Net Weight:

    About 55kg
  • Compliance:

    CE certificate
  • Warranty:

    Two years limited warranty with lifetime support
  • Delivery Time:

    3 days
contact now
DESCRIPTION

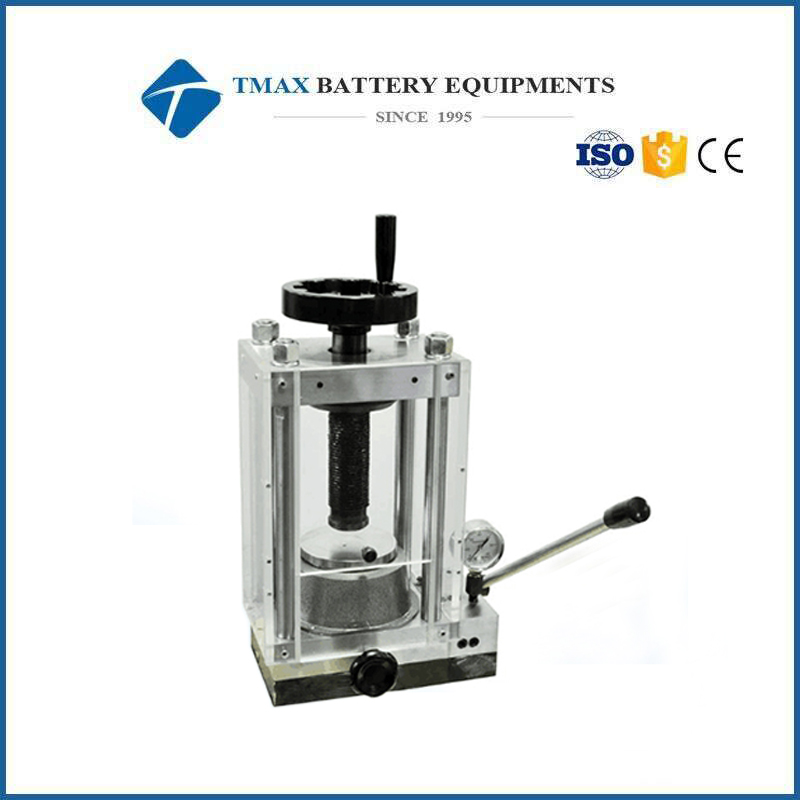

40T Desktop Manual Hydraulic Laboratory Dry Pressing Machine


TMAX-40T is a manual hydraulic pressing machine able to generate up to 40 metric tons. It has a built-in hydraulic pump with an auto-reset function to return the stage to the original position. It is an excellent tool for material & chemistry laboratories to prepare compound or ceramic pellet samples.


Max. Pressure

40 Metric Tons

Bottom Hydraulic Cylinder Travel Distance

0 - 25 mm

Top Support Screw Adjustable Height

130 mm

Protection Cover


 ·         Polycarbonate Safety Shield is included in standard package.



·         Note: Door must be closed during use

Dimension of Working Space Under Frame


D1: 120mm
D2: 110mm
H1: 200mm
H2: 170mm

Dimensions of Machine

170mm(L) x 340mm(W) x 480mm(H)

Net Weight of Machine

55 Kg (121 lbs)

Shipping Dimensions

40"(L) x 32"(W) x 36"(H)

Shipping Weight

190 lbs

Press Dies

Pressing dies with various diameters are available upon request at extra cost

Application Notes

Caution: Customers must always wear protection goggles during operation !

Warranty

·         The pressing machine was quality inspected, lifetime support is provided

·         two years limited standard warranty with lifetime support



   Hydraulic Press Machine



 battery equipment


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.



1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
