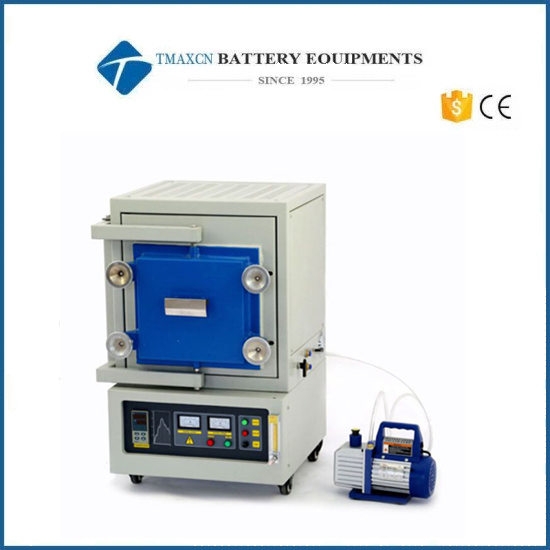

1100℃ Hydrogen Atmosphere Furnace

Model

GF11Q-B-H-I

GF11Q-B-H-II

GF11Q-B-H-III

Power

4KW

9KW

16KW

Furnace Structure

1. It adopts a double-layer shell structure and is equipped with fan air cooling.

2. The inner tank adopts imported 310S stainless steel material.

3. A water cooling system is installed at the door of the furnace to reduce the sealing temperature of the O-ring.

4. Installed with combustion system (including: igniter, combustion controller, burner).

5. An explosion-proof valve is installed (the valve opening pressure can be set freely).

6. A hydrogen detector is installed to detect hydrogen leakage.

Chamber size

(DXWXH, mm)

300X200X200

380X280X280

480X380X380

Dimensions (WXDXH)

480X590X 712

580X690X930

680X 790X950

Voltage

220V

380V

Phase

Single phase

Three phase

Heating element

Sweden Canthal A1 imported resistance wire, the surface temperature can reach 1420℃

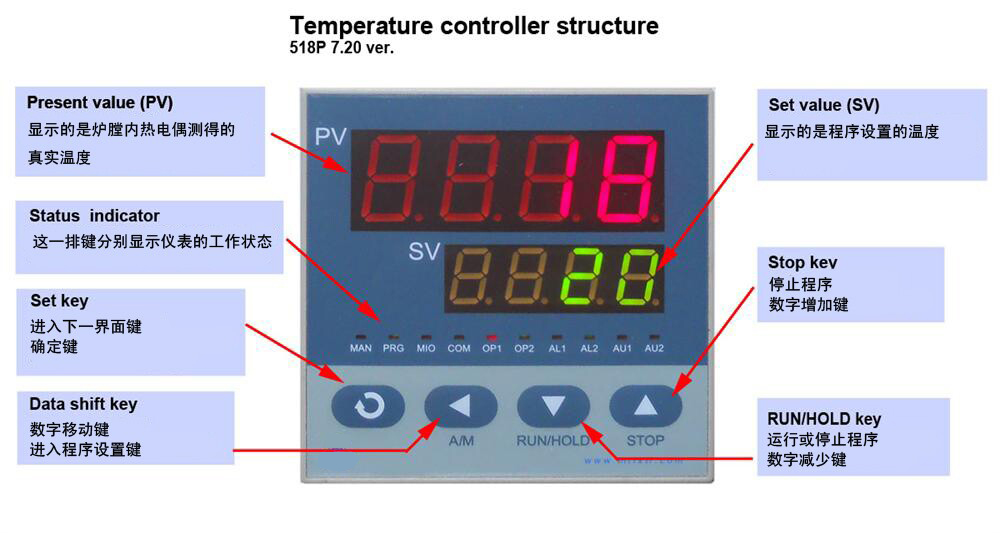

Controller

YUDIAN Controller(Standard)

1. 30-stage program temperature control intelligent PID adjustment.

2. With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken, (when the electric furnace temperature exceeds 1200 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace).

3. With 485 communication interface (standard when purchasing software)

4. With power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure.

5. The meter has the function of temperature self-tuning

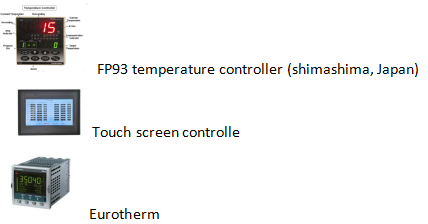

If you want to get an imported temperature controller, you may have the following choices for replacement with extra fees.

Furnace Material

1. High-quality and high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration.

2. Molded with Japanese technology.

3. The spacing and pitch of the resistance wires in the furnace are all arranged according to the best thermal technology in Japan, and the temperature field is simulated by thermal software

4. Adopt 4-sided heating (left, right, up and down), the temperature field is more balanced

control accuracy

+/- 10 ℃

Trigger

Phase shift trigger

Electrical appliances

Zhejiang Chint

maximum temperature

900 ℃

Rated temperature

800 ℃

Thermocouple model

K Type

Heating rate

≤20 ℃/ Min(Can be modified as required)

Recommended heating rate

≤10 ℃/ Min

Thyristor

106/16E Siemens Germany

Vacuum

In the cold state, it can reach -0.1MPa. Because stainless steel will deform at high temperatures, it can only be sintered in an atmosphere at high temperatures, and the pressure must not exceed 0.02MPa.

Surrounding surface temperature

≤45℃

Limit switch

Opening the door will automatically power off

Liner material

4mm 310S stainless steel
