1200℃ Hydrogen Atmosphere Furnace

  • Model Number:

    TMAX-GF12Q-II
  • Compliance:

    CE certificate
  • Warranty:

    One year limited warranty with lifetime technical support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

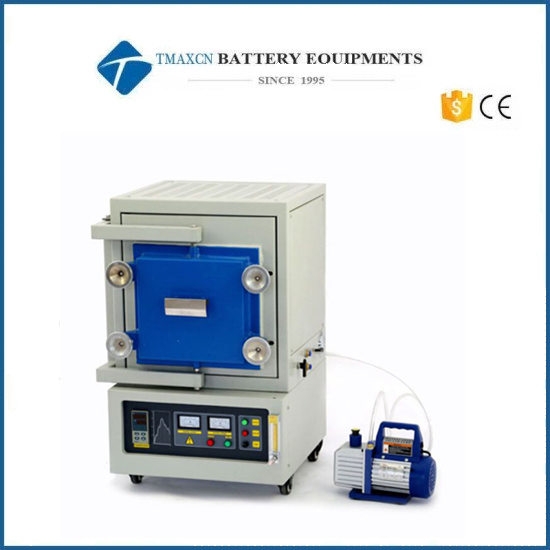

1200℃ Hydrogen Atmosphere Furnace


This box-type atmosphere furnace uses Swedish Kanthal resistance wire as the heating element, adopts a double-layer shell structure and a 30-segment program temperature control system, phase-shifting trigger, and SCR control. The furnace uses alumina polycrystalline fiber material, double-layer The furnace shell is equipped with an air-cooling system, which can quickly rise and fall in temperature. The shell is sealed as a whole, the cover is sealed with silica gel mud, the furnace door is made of silica gel pads and has a water cooling system, and the gas enters and exits from the breech after a flow meter. There are many places There are burners at the air inlet and outlet of the washing furnace, which can be pre-evacuated and can pass hydrogen, argon, nitrogen, oxygen, carbon monoxide, ammonia decomposition gas and other gases. The furnace has a balanced temperature field, low surface temperature, and rising and falling temperatures The advantages of fast speed and energy saving are ideal products for universities, research institutes, industrial and mining enterprises for atmosphere protection sintering and atmosphere reduction.


Specification

Model

GF12Q-II

GF12Q-IV

GF12Q-V

Power

4KW

9KW

16KW

Chamber size

(DXWXH, mm)

300X200X200

400X300X300

500X400X400

Dimensions (WXDXH)

520X610X765

700X 700X880

810X850X1060

Voltage

220V

380V

Phase

Single phase

Three phase

Heating element

Resistance wire Sweden Kanthal A1 (The resistance wire can be guaranteed for 2 years)

Controller

YUDIAN Controller(Standard)

1. 30-stage program temperature control intelligent PID adjustment.

2. With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken, (when the electric furnace temperature exceeds 1200 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace).

3. With 485 communication interface (standard when purchasing software)

4. With power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure.

5. The meter has the function of temperature self-tuning

 muffle furnace

If you want to get an imported temperature controller, you may have the following choices for replacement with extra fees.


 muffle furnace


Furnace Material

1. High-quality and high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration.

2. Molded with Japanese technology.

3. The spacing and pitch of the resistance wires in the furnace are all arranged according to the best thermal technology in Japan, and the temperature field is simulated by thermal software

control accuracy

+/- 1 ℃

Trigger

Phase shift trigger

Electrical appliances

Zhejiang Chint

maximum temperature

1200 ℃

Rated temperature

1100 ℃

Thermocouple model

K Type

Heating rate

≤20 ℃/ Min(Can be modified as required)

Recommended heating rate

≤15 ℃/ Min

Thyristor

106/16E Siemens Germany

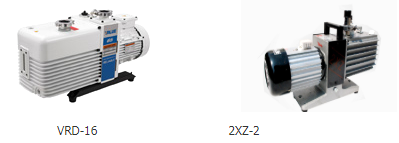

Vacuum Pump(Optional)

 vacuum pump


Surrounding surface temperature

≤45℃

Open cover protection system

The furnace is equipped with a travel switch, and the relay will automatically cut off the main power when the furnace cover is opened, effectively ensuring the safety of users
