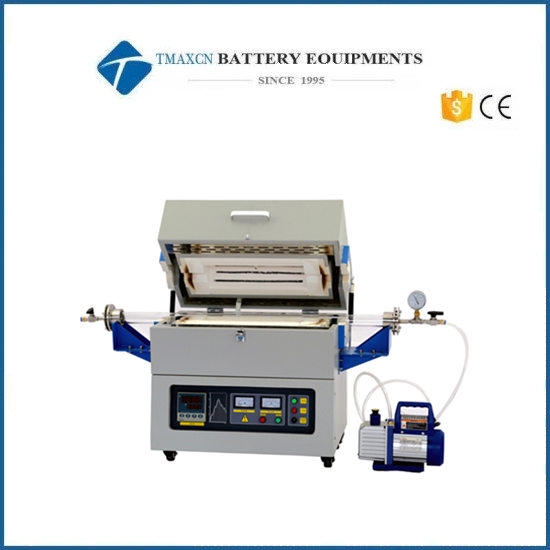

1200℃ Dual Zone Sliding Tube Furnace
Model Number:
TMAX-TL1200-1200Compliance:
CE certificateWarranty:
One year limited warranty with lifetime technical supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
1200℃ Dual Zone Sliding Tube Furnace
This split tube furnace uses resistance wire as heating element, adopts double-layer shell structure and 30-segment program temperature control system, phase-shifting trigger, thyristor control, furnace chamber adopts alumina polycrystalline fiber material, with temperature field balance , The advantages of low surface temperature, fast temperature rise and fall, energy saving, etc., are ideal products for universities, scientific research institutes, and industrial and mining enterprises for high-temperature atmosphere sintering, atmosphere reduction, CVD experiments, and vacuum annealing.
Specification
Model |
TL1200-1200-I |
TL1200-1200-II |
TL1200-1200-III |
Power |
3.6KW |
3.6KW |
3.6KW |
Chamber size (DXH) |
Dia 60(OD) X1500mm |
Dia80(OD)X1500mm |
Dia100(OD)X1500mm |
Dimension |
1700X490X600 |
1700X490X600 |
1700X490X600 |
Voltage |
220V |
||
Phase |
Single phase |
||
Heating element |
Domestic high-quality resistance wire (optional Sweden Kanthal A1 imported resistance wire) |
||

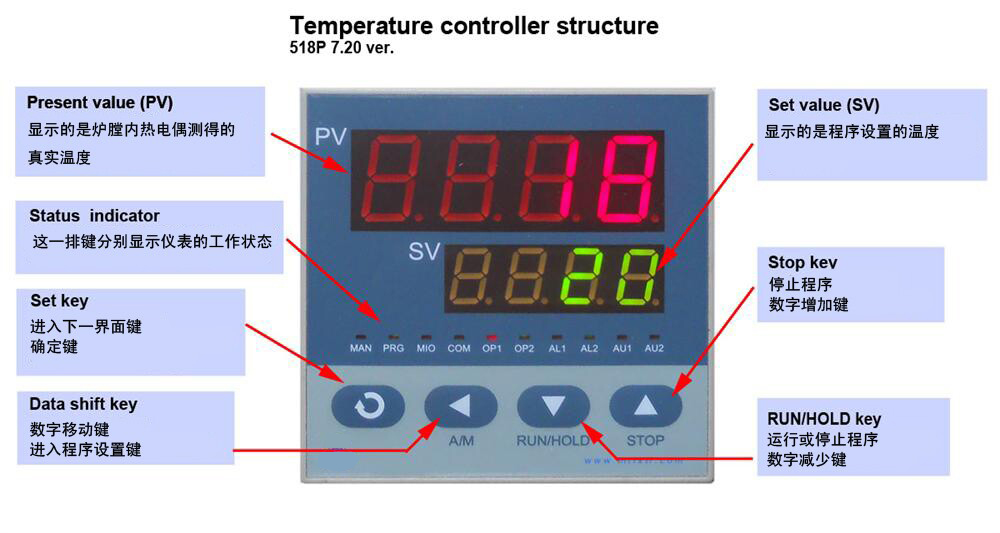

Controller |
YUDIAN Controller(Standard) 1. 30-stage program temperature control intelligent PID adjustment. 2. With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken, (when the electric furnace temperature exceeds 1200 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace). 3. With 485 communication interface (standard when purchasing software) 4. With power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure. 5. The meter has the function of temperature self-tuning
If you want to get an imported temperature controller, you may have the following choices for replacement with extra fees.
|
||
Furnace Material |
1. High-quality and high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration. 2. Molded with Japanese technology. 3. The spacing and pitch of the resistance wires in the furnace are all arranged according to the best thermal technology in Japan, and the temperature field is simulated by thermal software |
||

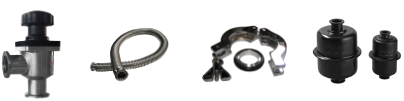

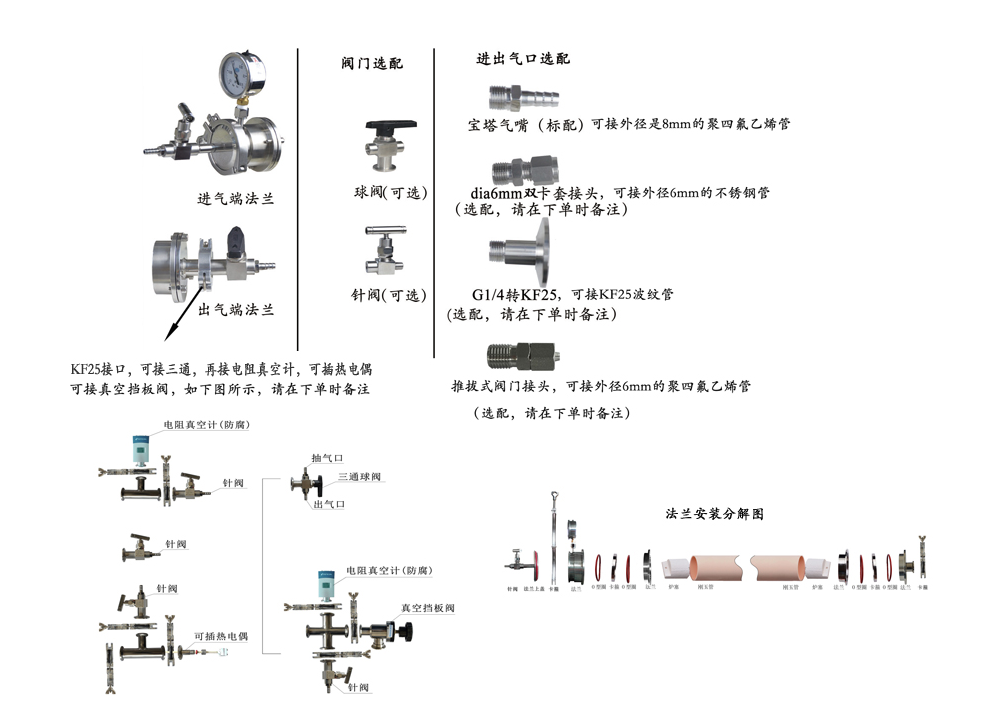

Valve and flange |
|
||
control accuracy |
+/- 1 ℃ |
||
Trigger |
Phase shift trigger |
||
Electrical appliances |
Zhejiang Chint |
||
Thyristor |
106/16E Siemens Germany |
||
Maximum temperature of the first temperature zone and the second temperature zone |
1200 ℃ |
||
Rated temperature of the first temperature zone and the second temperature zone |
1100 ℃ |
||
Length of heating section in the first temperature zone |
205mm |
||
Length of heating section in the second temperature zone |
205mm |
||
Length of the first temperature zone constant temperature section |
80-100mm |
||
Length of the second temperature zone constant temperature section |
80-100mm |
||

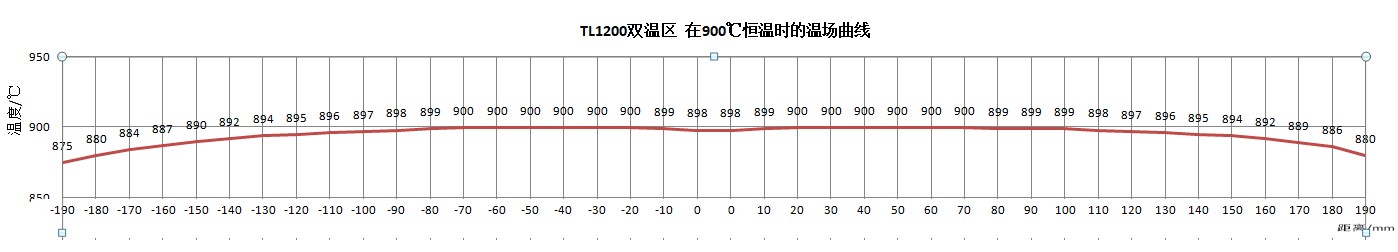

Temperature field curve |
|
||

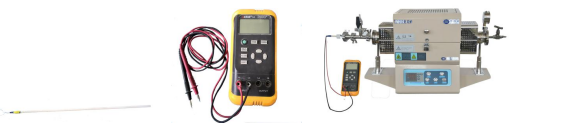

Temperature calibration (optional) |
Regular temperature calibration of the tube furnace can maintain the accuracy and uniformity of the furnace temperature. You can purchase a set of simple calibration tools from our company to assist you in this task. A complete calibration kit includes standard thermocouples, temperature calibrators, and compensation wires.
|
||
Heating rate |
≤100 ℃/ Min (can be modified as required) |
||
Thermocouple model |
K Type |
||
Surrounding surface temperature |
≤45℃ |
||
Door opening protection system |
This furnace is equipped with a travel switch. When the furnace door is opened and taken out, the main electric furnace of the electric furnace will automatically power off |
||

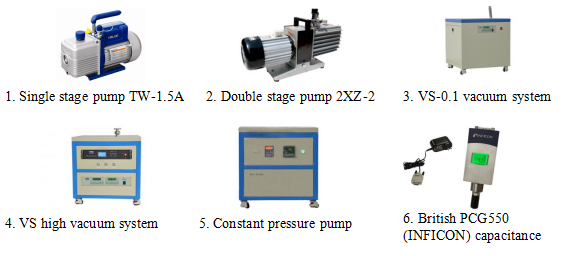

Vacuum pump(Optional) |
1. Generally, use a rough vacuum to drive out the gas in the furnace tube: TW-1.5A single-stage pump is enough. 2. Two-stage pump 2XZ-2 vacuum pump can pump the vacuum degree of the tube furnace tube to about 10Pa. 3. The VS-0.1 vacuum system can pump the vacuum in the tube furnace to 0.1Pa (with a resistance vacuum gauge display). 4. VS high vacuum system (the system is composed of molecular and mechanical pumps) can pump the vacuum in the tube furnace to 10-3 Pa. 5. Constant pressure pump (this system can control the pressure in the pipe between -100.0KPa~100.0KPa). 6. British (INFICON) capacitance vacuum gauge (measurement range 3.8x10-5 -1125 Torr, can detect various gases, including mixed gases, accurate measurement, good repeatability, anti-corrosion type PCG554 optional)
|
||

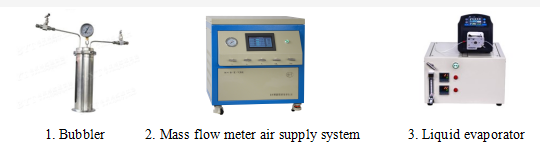

Gas supply system(Optional) |
|
Warranty
One year warranty, lifetime technical support
Special tips:
1. Consumable parts such as heating elements, quartz tubes, sample crucibles, etc. are not within the warranty period.
2. Damage caused by the use of corrosive gas and acid gas is not covered by the warranty.
Precautions
1. The pressure in the furnace tube cannot be higher than 0.02MPa2. Due to the high internal pressure of the gas cylinder, a pressure reducing valve must be installed on the gas cylinder when gas is introduced into the furnace tube. In order to ensure safety, it is recommended to use a pressure lower than 0.02MPa
3. When the furnace body temperature is higher than 1000℃, the furnace tube must not be in a vacuum state, and the air pressure in the furnace tube must be equal to the atmospheric pressure
4. The gas flow into the furnace tube must be less than 200SCCM to avoid the impact of cold air flow on the hot furnace tube
5. For the sample heating experiment, it is not recommended to close the exhaust valve and intake valve at the flange end of the furnace tube. If you need to close the gas valve to heat the sample, you need to pay attention to the indication of the pressure gauge at all times. If the pressure indication is greater than 0.02MPa, you must open the exhaust valve immediately to prevent accidents (such as furnace tube rupture, flange flying, etc.)
