1200℃ Pit Furnace

Model

JSL1200-I

JSL1200-II

Power

2.5KW

15KW

Chamber size

(DXH)

Dia240X200mm

Dia450X600mm

Heating surface

Four-sided Heating

Voltage

220V

380V

Phase

Single phase

Three phase

Heating element

Domestic high-quality resistance wire (optional Sweden Kanthal A1 imported resistance wire)

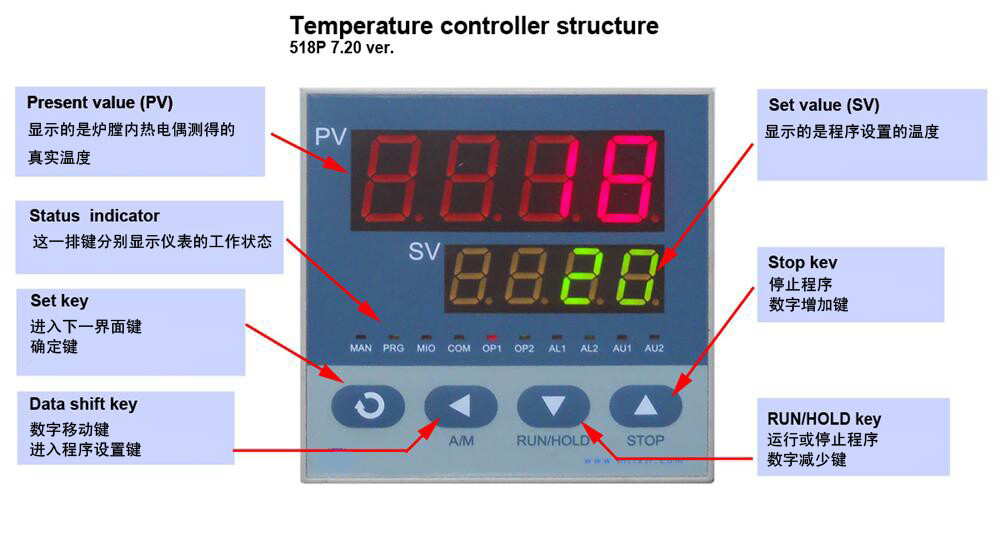

Controller

YUDIAN Controller(Standard)

1. 50-stage program temperature control intelligent PID adjustment.

2. With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken, (when the electric furnace temperature exceeds 1200 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace).

3. With 485 communication interface (standard when purchasing software)

4. With power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure.

5. The meter has the function of temperature self-tuning

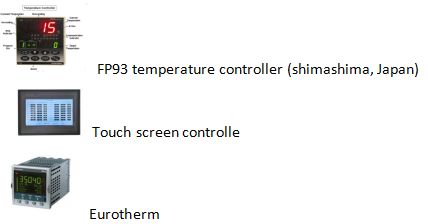

If you want to get an imported temperature controller, you may have the following choices for replacement with extra fees.

Furnace Material

1. High-quality and high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration.

2. Molded with Japanese technology.

3. The spacing and pitch of the resistance wires in the furnace are all arranged according to the best thermal technology in Japan, and the temperature field is simulated by thermal software

4. Using 4 weeks of heating, the temperature field is more balanced

control accuracy

+/- 1 ℃

Trigger

Phase shift trigger

Electrical appliances

Zhejiang Chint

maximum temperature

1200 ℃

Rated temperature

1150 ℃

Thermocouple model

K Type

Heating rate

≤20 ℃/ Min(Can be modified as required)

Recommended heating rate

≤10 ℃/ Min

Thyristor

106/16E Siemens Germany

Safety protection system

The furnace is equipped with safety and air switch. When the current exceeds the rated current of the air switch, the empty meeting will automatically trip, effectively protecting the electric stove.

Surrounding surface temperature

≤35℃

Door opening protection system

This furnace is equipped with a travel switch. When the furnace door is opened and taken out, the main electric furnace of the electric furnace will automatically power off

Warranty

One year warranty, lifetime technical support

Special tips: 1. Consumable parts such as heating elements, quartz tubes, sample crucibles, etc. are not within the warranty period.

2. Damage caused by the use of corrosive gas and acid gas is not covered by the warranty.
