1200℃ Two Zone Split Alumina Quartz Tube Furnace

Model

1200-1200-I

1200-1200-II

1200-1200-III

1200-1200-IV

Power

3.6KW

3.6KW

3.6KW

5.2KW

Tube size(OD)(mm)

Dia60(OD)X1000mm

Dia80X1000

Dia100X1000

Dia150X1000

Dimensions

1140X460X695

1140X460X695

1140X460X695

1110X530X647

Tube

High purity quartz pipe: 60 / 80 / 100 / 150 * 1000mm (selectable tube diameter)

A furnace plug shall be placed on both sides. The furnace plug can block the heat radiation in the center of the furnace tube. It must be placed in the correct position of the furnace before heating

Supply voltage

220V

Phase

single phase

Heating element

Resistance wire imported from Sweden Kanthal A1 (resistance wire guaranteed for 2 years)

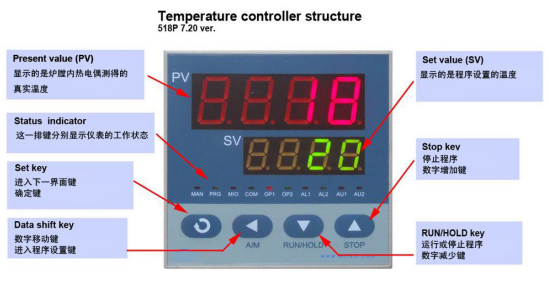

Temperature control

UAV program temperature control instrument (standard)

1, 30-stage program temperature control intelligent PID adjustment.

2. With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken, (when the electric furnace temperature exceeds 1200 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace).

3, with 485 communication interface (standard when purchasing software)

4, with power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure.

5, the meter has the function of temperature self-tuning

Furnace material

1. High-quality high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration.

2. Formed by Japanese technology.

3. The spacing and pitch of the resistance wires in the furnace are all arranged according to the best thermal technology in Japan, and the temperature field is simulated by the thermal software.

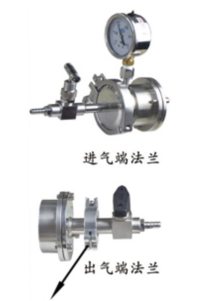

Flange

Control accuracy

+/- 1 ℃

Trigger

Phase-shifted trigger

Electric appliance

Zhejiang chint

Silicon controlled

106/16E Simenkang, Germany

The highest temperature in the first and second temperature zones

1200 ℃

Rated temperature in the first and second temperature zones

1100 ℃

Length of heating section in the first temperature zone

205mm

Length of heating section in the second temperature zone

205mm

Length of constant temperature section in the first temperature zone

80mm

Length of constant temperature section in the second temperature zone

80mm

Heating rate

≤30 ℃/ Min (it can be modified as required)

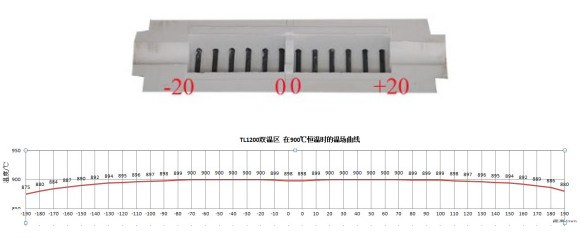

Temperature field curve

Recommended rate of temperature rise

≤15  ℃/ Min

Thermocouple Type

K Type

Constant temperature length

150mm

Peripheral surface temperature

≤45℃

Open cover protection system

When the furnace cover is opened, the relay will automatically cut off the main power supply, effectively ensuring the safety of the user
