1700℃ Dual Zone Split Tube Furnace

  • Model Number:

    TMAX-1700DZF
  • Compliance:

    CE certificate
  • Warranty:

    One year limited warranty with lifetime technical support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

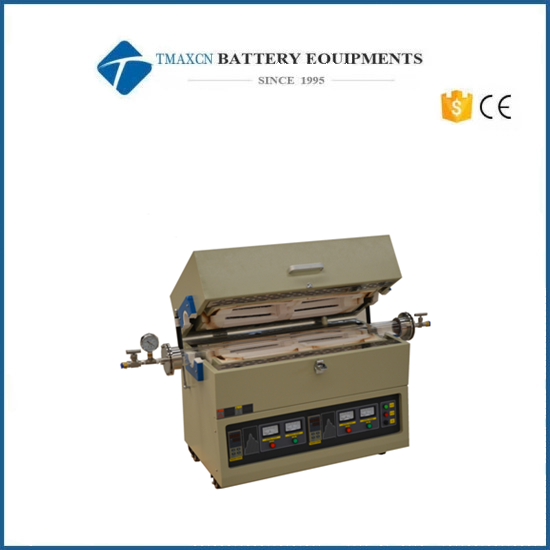

1700℃ Dual Zone Split Tube Furnace


A.Overview

This tube furnace uses double-layer shell structure and 30-stage program temperature control system, phase shift triggering, thyristor control, and furnace polycrystalline fiber material. It has the advantages of temperature field balance, low surface temperature, fast temperature rise and fall, energy saving, etc. It is an ideal product for high-temperature atmosphere sintering, atmosphere reduction, CVD experiment and vacuum annealing in universities, research institutes and industrial and mining enterprises.



B.Specification

Model

TL1700-1700-I

TL1700-1700-II

TL1700-1700-III

TL1700-1700-IV

Power

7KW

7KW

10KW

10KW

Tube size(OD)(mm)

Dia60(OD)X1250mm

Dia80X1250

Dia60X1300

Dia80X1300

Supply voltage

220V/380V

Phase

single phase

Heating element

1800 type silicon molybdenum rod

Temperature control

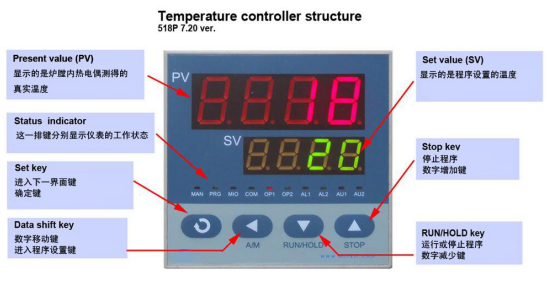

UAV program temperature control instrument (standard)

1, 50-stage program temperature control intelligent PID adjustment.

2. With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken, (when the electric furnace temperature exceeds 1720 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace).

3, with 485 communication interface (standard when purchasing software)

4, with power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure.

5, the meter has the function of temperature self-tuning

 dual zone tube furnace

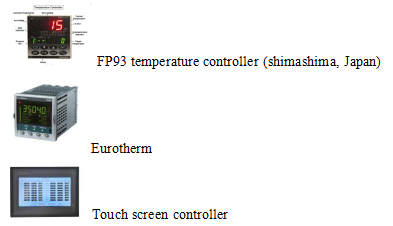

       If you want to get an imported temperature controller, you may have the following choices for replacement with extra fees.

dual zone tube furnace



Furnace material



1. High-quality high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration.

2. Formed by Japanese technology.

dual zone tube furnace


Control accuracy

+/- 1 ℃

Trigger

Phase-shifted trigger

Electric appliance

Zhejiang chint

Silicon controlled

106/16E Simenkang, Germany

The highest temperature in the first and second temperature zones

1700 ℃

Rated temperature in the first and second temperature zones

1650 ℃

Heating Rate

  ≤20 ℃/ Min (Can be customized as customers request)

Recommended Heating Rate

 ≤10 ℃/ Min

Thermocouple model of the first and second temperature zone

B Type

Heating section length

210+210mm

Constant section length

250-300mm

Temperature calibration (optional)

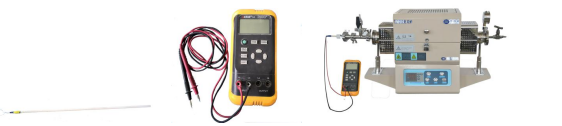

Regular temperature calibration of the tube furnace maintains the accuracy and uniformity of the furnace temperature. You can purchase a simple calibration tool from the company to assist you with this work. The complete calibration kit includes a standard thermocouple S-type, temperature calibrator.

 dual zone tube furnace



Vacuum system (optional)

dual zone tube furnace

1) Generally, the gas in the furnace tube can be pumped out by roughly vacuumizing:TW-1.5A single-stage pump would be fine

2)  The double-stage pump 2XZ-2 vacuum pump can pump the vacuum degree of tube furnace tube to about 10Pa.

3) The VS-0.1 vacuum system can pump the vacuum degree in the tube furnace to 0.1Pa (with resistance vacuum meter display).

4) VS high vacuum system (composed of molecular and mechanical pump) can pump the vacuum degree in the tube furnace to 10-3 Pa.

5) Constant pressure pump (the system can control the pressure in the pipe within - 100.0KPa ~ 100.0KPa).

6)  British (INFICON) capacitance vacuum gauge (measuring range: 3.8x10-5 -1125 Torr, it can detect various gases, including mixed gases, with accurate measurement, good repeatability, and optional anti-corrosion type: PCG554)



Valve and flange









dual zone tube furnace



Peripheral surface temperature

≤45℃

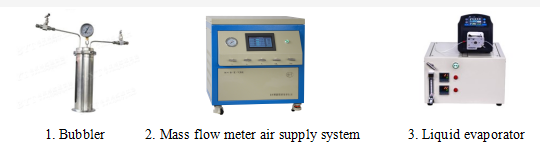

Gas supply system (optional)



 dual zone tube furnace


Open cover protection system

When the furnace cover is opened, the relay will automatically cut off the main power supply, effectively ensuring the safety of the user

tube furnace



 battery equipment
