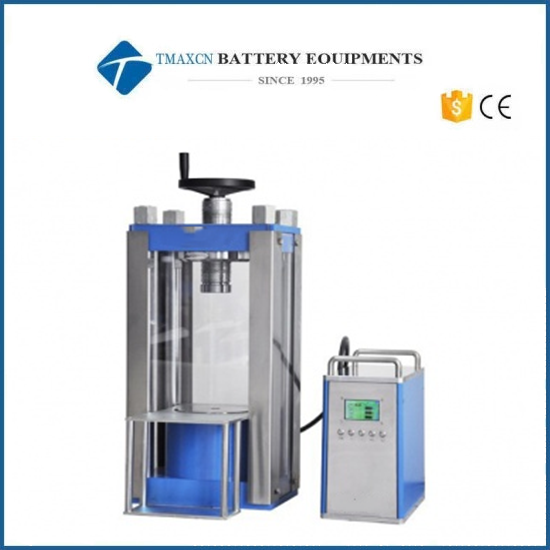

150T Lab Electric Hydraulic Press Machine
Model Number:
TMAX-DYP150TFZCompliance:
CE certificateWarranty:
Two years limited warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
150T Lab Electric Hydraulic Press Machine
DYP-TZ series electric powder tablet presses are mainly used for samples that require high pressure to form, such as ceramics, metal powder and other large-scale molds. The hydraulic press adopts a split structure and fully automatic program operation: program pressurization/slow pressurization-pressure maintenance-pressure compensation-timed pressure relief, etc., using liquid crystal display, the operation is more intuitive and simple, and all are equipped with machine glass protective cover, operation The production is safer and more assured, the pressure is stable, and the operation is convenient. It is another masterpiece developed by TMAX following the small tonnage tablet press.
Technical parameters
|
Model |
DYP-100TFZ |
DYP-150TFZ |
|
Pressure range |
1-100T/0.1t |
1-150T/0.1t |
|
Piston diameter |
Φ200mm chrome-plated cylinder |
Φ250mm chrome-plated cylinder |
|
Max. cylinder stroke |
50mm |
|
|
Pressure method |
Electric pressure |
|
|
Pressurization process |
Intelligent and automatic, program pressure/slow pressure-program pressure maintenance-program pressure compensation-timing pressure relief |
|
|
Display method |
4.3 inch LCD display |
|
|
compress time |
0-999.59 (minutes. seconds) |
|
|
Pressure conversion |
The program automatically converts and displays the pressure of the mold sample (Mpa) |
|
|
Equipment protection |
Steel plate protection, equipped with machine glass protection door |
|
|
Equipment structure |
Split structure |
|
|
Equipment power |
220V (50Hz/60Hz) |
|
|
Workstation diameter |
260×400mm(W*H) |
285×460mm(W*H) |
|
over dimension |
850×500×1100mm |
950×600×1100mm |
|
Weight |
525kg |
625kg |
|
Standard configuration |
1 electric tablet press, molds are purchased separately |
|
Remarks: Some of the indicators are unique to TMAX, which can be customized or improved according to customer needs.
