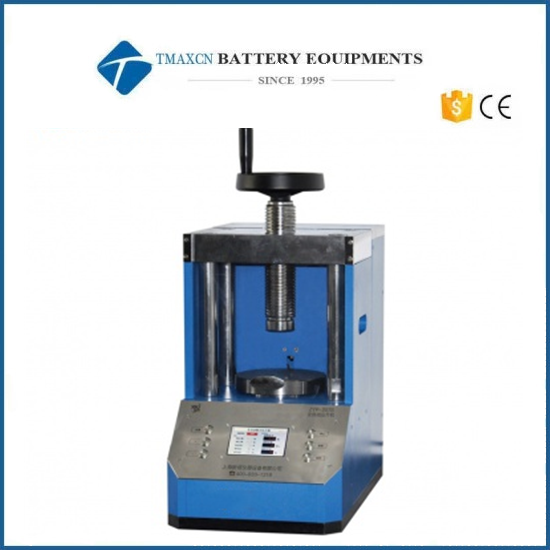

20T Lab Automatic Hydraulic Press Machine For XRF Research

Model Number:
TMAX-ZYP20TS
Compliance:
CE certificate
Warranty:
Two years limited warranty with lifetime support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 days

contact now

Email : David@battery-equipments.com
Wechat : Wechat 13506084915

DESCRIPTION

20T Lab Automatic Hydraulic Press Machine For XRF Research

The fully automatic tablet press is a brand new intelligent laboratory tablet press developed by our company on the basis of combining existing manual and electric tablet presses, with the advice and support of some college teachers, and equipped with appropriate molds. Accessories, can meet the user's requirements for powder sample pressure forming, widely used in the analysis and research of new materials such as X fluorescence, calcium-iron analysis, superconductivity, building materials, powder ceramics, cement, etc. It is an existing manual and electric tablet press The alternative products are well received by users.

Compared with the traditional powder press, the ZYP-TS series laboratory hydraulic press has carried out a number of improvements and innovations, and realized the intelligent operation of the large LCD screen, pressurization/slow pressurization-pressure maintaining-pressure compensation-relief, etc. The programmed control is realized, and the limit protection of the oil cylinder is realized, so as to avoid the occurrence of machine failure caused by the oil cylinder being raised too high due to the user's operation error. With the help of the microcomputer intelligent program, the automatic conversion of the pressure of the mold sample is realized, which eliminates the need for manual conversion, and the operation is more intelligent and user-friendly, saving time, effort and worry, suitable for high-end laboratory use.

Technical parameters

Model	ZYP-20TS	ZYP-30TS	ZYP-40TS	ZYP-60TS	ZYP-100TS	ZYP-150TS
Pressure range	1-20T/0.1t	1-30T/0.1t	1-40T/0.1t	1-60T/0.1t	1-100T/0.1t	1-150T/0.1t
Cylinder stroke	30mm	30mm	50mm	50mm	50mm	50mm
Pressure method	Electric pressure
Pressurization process	Intelligent and automatic, program pressure/slow pressure-program pressure maintenance-program pressure compensation-timing pressure relief
Display method	4.3 inch LCD display
compress time	0-999.59 (minutes. seconds)
Pressure conversion	The program automatically converts and displays the pressure of the mold sample (Mpa)
Limit protection	When the oil cylinder rises to the limit height, the pressure is automatically released to protect the oil cylinder
Equipment protection	Steel plate protection, equipped with machine glass protection door
the whole frame	One-piece structure
Equipment power	220V (50Hz/60Hz)
Workstation diameter	140×160mm	140×160mm	175×180mm	185×220mm	185×250mm	200×260mm
over dimension	230×390 ×420mm	230×390 ×420mm	280×460 ×550mm	300×520 ×580mm	330×580 ×620mm	400×620 ×620mm
Weight	90kg	95kg	150kg	180kg	240kg	380kg
Standard configuration	1 tablet machine host, mold selection

Remarks: Some of the indicators are unique to TMAX, which can be customized or improved according to customer needs.
