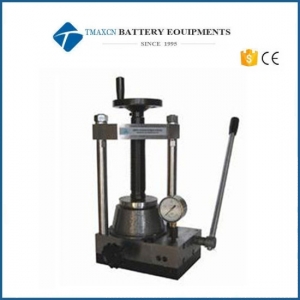

15T Hydraulic Pellet Press Machine For Glove Box

  • Model Number:

    YLJ-15
  • Dimension(L*W*H):

    270mm×200mm×450mm
  • Net Weight:

    About 30kg
  • Compliance:

    CE certificate
  • Warranty:

    Two years limited warranty with lifetime support
  • Delivery Time:

    3 days
contact now
DESCRIPTION

15T Hydraulic Pellet Press Machine For Glove Box


YLJ-15T press is widely used in new materials, superconducting materials, powder ceramics, new power supply materials, building materials and other fields. When the press works, it relies on the hydraulic press to exert pressure on the sample in the mould, which makes the upper and lower sides of the sample subject to relative pressure in the direction, so that a small number of samples are pressed into sheets or a large number of samples into columns. YLJ-15T press can also press materials into various sheets, columns, profiles and assemblies with specific dies for scientific research. It can also be used with Ca-Fe analyzer, infrared spectroscopy (IR) analyzer and X-ray fluorescence (XRF) analyzer to analyze the pressed samples. YLJ-15T pressure machine is widely used in Colleges and research institutes because of its compact size, simple operation and easy cleaning and maintenance. According to the size of the sample and the required pressure, different types of press can be selected to press the sample.

SPECIFICATIONS:

Product name

YLJ-15T micro-press

Model

YLJ-15T

Features

1. Small design.

2. The upper cross beam can be adjusted up and down freely according to the size of the die, so it is flexible and convenient to use.

3. It is very suitable for sample preparation and material forming in laboratory.

Technical parameter

1. Pressure range: 0-15T

2. System pressure: 0-25 MPa (250kgf/cm2)

3. Pressure stability: <1MPa/10min

4. Cylinder stroke: 0-20mm

5. Workspace: 105mm x 105mm x 150mm

6. Motion mode: with fast pre-tightening

Product Specification

Dimensions270mm×200mm×450mm

Net Weight30kg









 battery equipment

1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
