20T Desktop Electric Hydraulic Laboratory Press

  • Model Number:

    YLJ-20T
  • Dimension(L*W*H):

    450×440×570 mm
  • Net Weight:

    About 65kg
  • Compliance:

    CE certificate
  • Warranty:

    Two years limited warranty with lifetime support
  • Delivery Time:

    3 days
contact now
DESCRIPTION

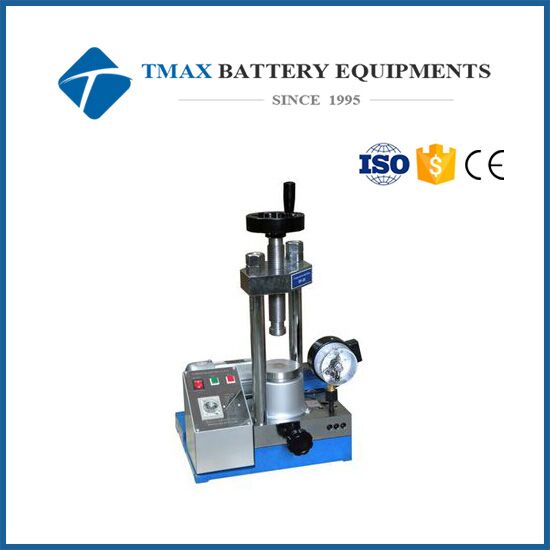

20T Desktop Electric Hydraulic Laboratory Press


YLJ-20T is a electric hydraulic pressing machine with pressure capability up to 20 metric tons for preparing compound or ceramic sample faster and easier. YLJ-20T has a built-in electric hydraulic pump with automatic pressure limit switch and timer. It is an excellent tool for material / ceramic / chemistry laboratories to make larger pellet samples.


SPECIFICATIONS:

Normal Working Pressure Range

0~20 Metric Tons

Gauge Pressure Value to Force Conversion



Gauge Displayed Pressure Value (Mpa)

5

10

15

20

25

30

35

40

Actual Force Applied on the Hydraulic Cylinder (ton)

2.5

5

7.5

10

12.5

15

17.5

20

Notes:

1.       Displayed Pressure Value to Actual Applied Force Conversion: 1 MPa = 0.5 Ton

2.       The actual force applied on the Hydraulic Cylinder (Ton) equal to the force applied on your working piece

3.       For calculating the actual pressure (MPa) applied on your working piece, please follow the equations in below:

          P = T/(πr^2) x g x 10



1.       P: Pressure (MPa) applied on your working piece

2.       T: Force (Ton) applied on the Hydraulic Cylinder

3.       g: Standard gravity. g ≈ 9.8 m/s2

4.       π: ~3.14

5.       r: Radius (cm) of the working piece

6.       *1 Metric Ton = 1000 kg; 1 MPa ≈ 10 kgf/cm2

Pressure Stability

1MPa /5min

Power

1.       Standard: 220V AC 50/60Hz ( single phase ) 180W

2.       Optional: Please order 1000W 110V-220V transformer for using under 110V

Electric Hydraulic Pump

1.       Pressure gauge with built in pre-stable pressure switch ( accuracy +/-0.5% FS)

2.       Pressure load will stop when pressure reaches pre-setting point

Bottom Hydraulic Cylinder TravelDistance

0 - 20 mm

Top Support Screw Adjustable Height

180 mm


Protection Cover

1.       Transparent plastic for safety

2.       Note: Must close the protection door during pressing

Dimensions of Working Space Under Frame

D1: 100mm
D2: 88mm
D3: 105mm
H1: 155mm

H2: 145mm

Dimensions

450×440×570 mm

Net Weight

65KG

Press Dies

Pressing dies with various diameters are available upon request at extra cost

Warranty

1.  The pressing machine was quality inspected in the USA, lifetime support is provided

2.  Two years limited warranty with lifetime support

Compliance

CE Certified
