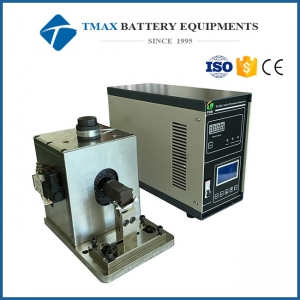

18650 Cylindrical Battery Cap Ultrasonic Metal Spot Welder Machine For Tab
Model Number:
TMAX-VS-40AInput Power:
3000WDimension(L*W*H):
Welding Area: 6mm*6mm It can be customizedCompliance:
CE certificateWarranty:
1 Year with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
18650 Cylindrical Battery Cap Ultrasonic Metal Spot Welder Machine For Tab
SPECIFICATION:
1 TMAX-VS-40A Ultrasonic Spot Welding Machine is an ultrasonic metal welder use for cylinder cell Aluminum tab and Cap welding.
2 TMAX-VS-40A Ultrasonic welding machine is with Automatic frequency tracking function, you don’t need to setting frequency always, simple operation.
3 Advantages with laser welding :
3.1 Laser welding need to weld after electrolyte filling, need to wipe the tab. TOB-VS-50A welding cap before electrolyte filled, more simple.
3.2 Laser welding is about 2-3% NG because of burning through tab, Our VS-50A close to 0%.
3.3 Ultrasonic welding can weld 2-40 layers Tab to Cap
3.4 High efficiency, Low cost, Small volume, simple operation
|
Model |
TMAX-VS-40A |
|
Source voltage |
AC220V, 50HZ, can be customized |
|
Power |
2000W |
|
Warranty |
One Year limited warranty with lifetime support |
|
Type |
Ultrasonic spot welding machine |
|
Frequency |
50KHZ |
|
Welding time |
0.05-9.99s |
|
Air supply |
0.2-0.8MPa |
|
Welding effect |
Single layer or multi-layer Aluminum tab and Al Cap welding , belt melt, welding firmly |
|
Welding ability |
1 Materials : Al Tab and cylinder cell cap (18650, 26650 and so on) 2 Al tab thickness : 0.08-0.18mm 3 Welding mode : according to your requirements 4 Welding area : can be customized |
|
Dimension (L*W*H) |
Power box : 400*170*300mm Welding machine : 300*200*270mm |
