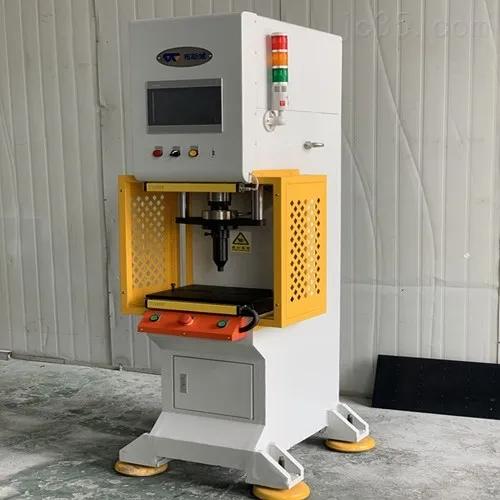

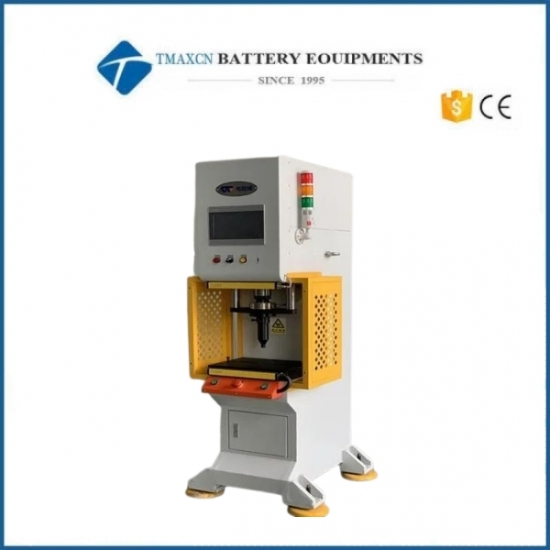

1T Laboratory Electrolytic Bath Pressure Controlled Fuel Cell Servo Press Equipment
Model Number:
TMAX-BSW08-1TCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
1T Laboratory Electrolytic Bath Pressure Controlled Fuel Cell Servo Press Equipment
Introduction
The main approach is to use a servo press, which can precisely control the pressure level. The input is made through a touch screen, allowing you to set the desired pressure. The speed can be either fast or slow.
The most important point is that the press-fitting process can maintain a constant pressure for an hour or even longer.
Features
The main functions of the fuel cell electrolytic cell servo press equipment
Precise position control
Precise pressure control
Display pressure and position online
The press-fitting process can maintain pressure, keep the pressure constant, and multiple press-fitting stages can be set
Technical parameter
|
Model |
BSW08-0.5T |
BSW08-1T |
BSW08-2T |
BSW08-5T |
BSW08-10T |
BSW08-20T |
|
|
Nominal pressure(T) |
0.5 |
1 |
2 |
5 |
10 |
20 |
|
|
Surface height(E) mm |
850 |
850 |
850 |
850 |
850 |
850 |
|
|
Maximum opening distance(H)mm |
300 |
350 |
350 |
400 |
500 |
500 |
|
|
Deep throat(s) mm |
150 |
150 |
175 |
200 |
225 |
250 |
|
|
Maximum stroke mm |
200 |
200 |
200 |
200 |
200 |
200 |
|
|
Workbench size |
Left and right (L) mm |
400 |
400 |
400 |
500 |
550 |
600 |
|
Before and after (W) mm |
300 |
300 |
350 |
400 |
450 |
500 |
|
|
Speed |
Rated load speed mm/s |
≤160 |
≤160 |
≤160 |
≤100 |
≤100 |
≤100 |
|
Working speed mm/s |
≤35 |
≤35 |
≤35 |
≤35 |
≤35 |
≤35 |
|
|
Main frame size mm |
600x700x1800 |
650x750x1950 |
650x850x2100 |
680x950x2300 |
850x1000x2500 |
950x1100x3200 |
|
|
Power KW |
0.75 Kw |
1.3 Kw |
3Kw |
4.4 Kw |
7.5 Kw |
15 Kw |
|
