Introduction

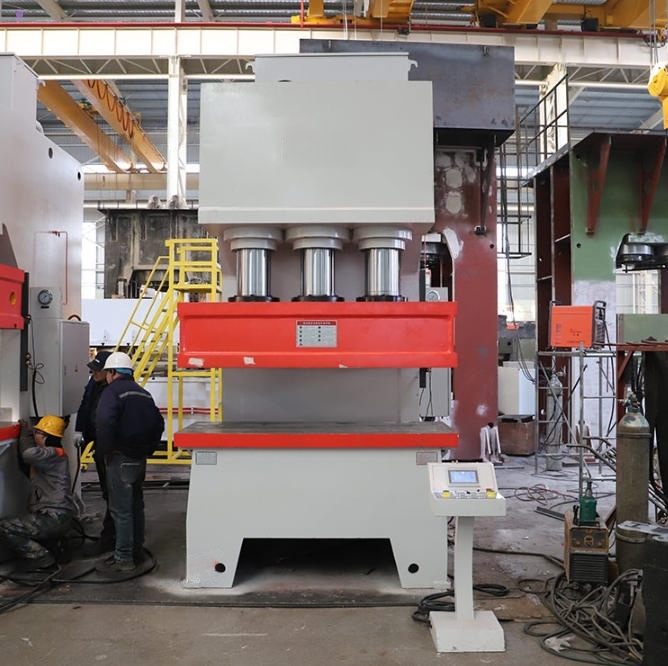

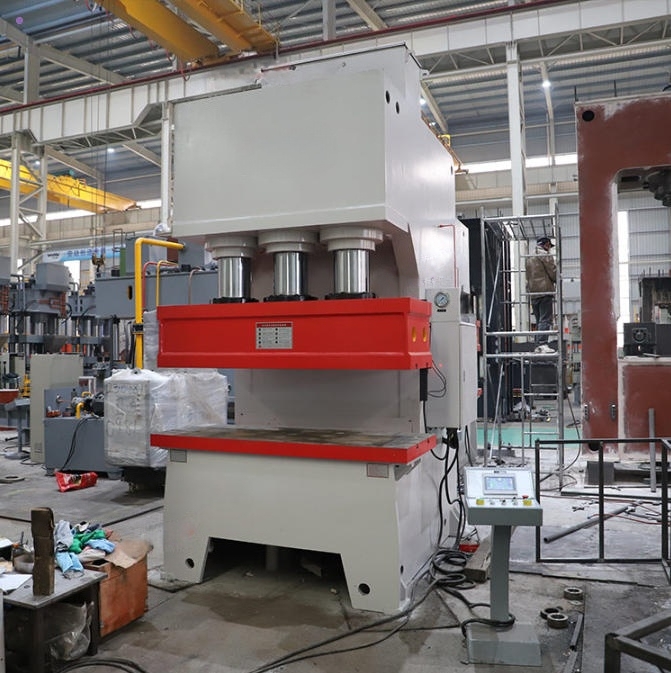

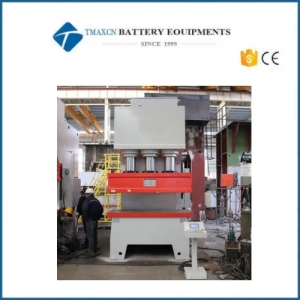

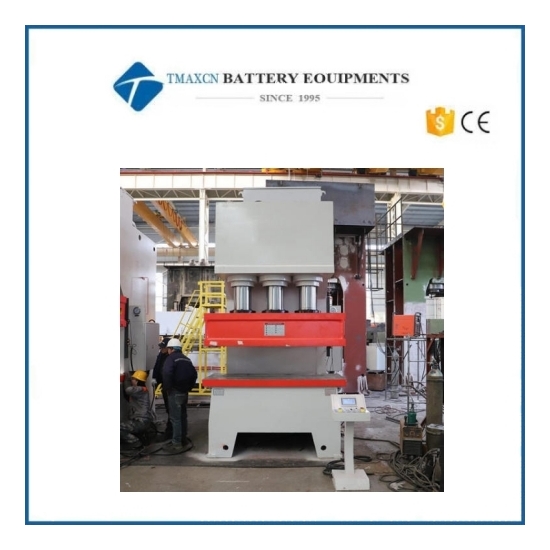

The 500-ton single-arm hydraulic press, also known as the 500-ton single column oil press or 500-ton single-column press, is a custom-made model. The machine body adopts a C-shaped single-arm structure and is welded by submerged arc welding. After welding, it undergoes vibration treatment to ensure the quality of the machine

The degree of non-deformation of the body. The wave pressure system is located inside the machine body, with an attractive appearance and convenient operation.

Structure

The structure of the 500-ton single-column hydraulic press: The main body structural components of the 500-ton single-column hydraulic press are all made of steel plate interlocking structure. After interlocking, they are tempered in a tempering furnace to eliminate the interlocking force, ensuring that the machine body is not prone to deformation during long-term use. The hydraulic system is composed of cartridge valves, integrated oil circuits, pump sets and oil tanks, etc. The electrical control system is composed of a control box and various control components, etc. The control box is equipped with a PLC programmable control system, which can complete the control of all the actions of the machine. The operation console can complete the operation of all the actions of the machine. The operation console is equipped with operation buttons for the actions of each part of the hydraulic press, function transfer switches, start and stop buttons for each motor, and alarms for each part. Monitor the indicator light, press the buttons with both hands, and press the return and emergency stop buttons.

Parameters
