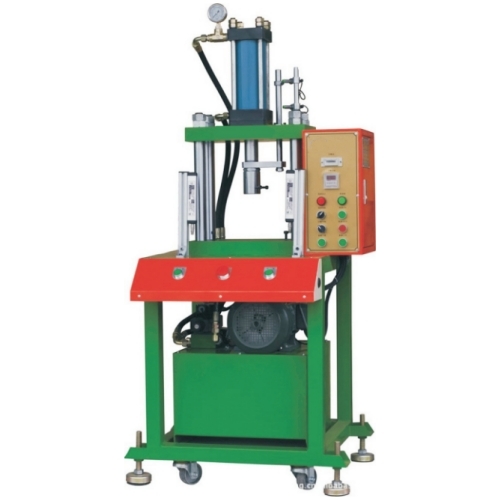

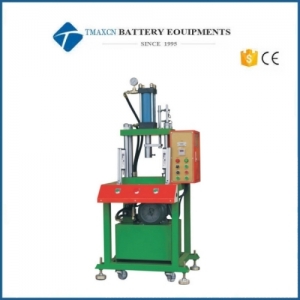

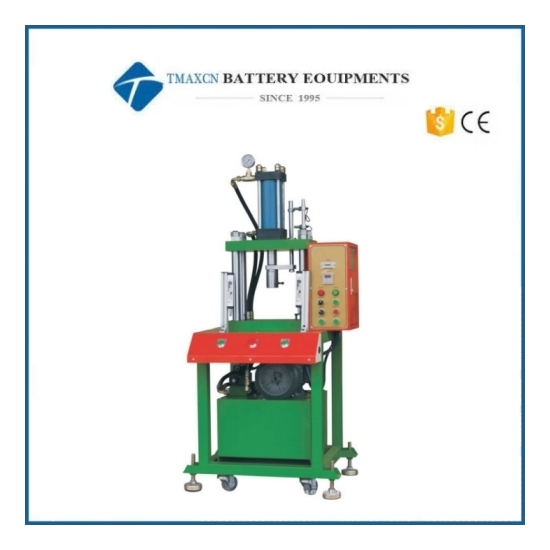

3T Small Laboratory Powder Hydraulic Press Equipment

3T Small Laboratory Powder Hydraulic Press Equipment

Introduction
This series of hydraulic presses are suitable for component press-fit, part calibration and riveting; also suitable for plastic material forming, such as blanking, punching, shaping, bending, shearing, drawing, stamping etc, Various uses such as pressing of powder products,The press adopts the two-button operation mode, the pressure and stroke are adjustable, and the jog and semi-automatic modes are adopted. The timing and stroke switch control can be selected according to the product, and the operation is convenient., safe and reliable.

Features
1. Adopting four-column and three-plate structure, the movable plate has high parallelism with the working surface, and the surrounding precision guide bushing has high vertical precision.

2. The cylinder stroke is adjustable, there is a hard limit, and the weight loss accuracy is 0.01mm.

3. The equipment structure is integrated, the hydraulic combination is inside the frame, the structure is compact.and the appearance is beautiful and generous.

4. There are foot cups or casters under the workbench for convenient and flexible movement.

5. The upper and lower working plates can be equipped with heating plates, and the intelligent temperature control system is installed in the electronic control. The temperature control is precise. After the heating plate and the temperature control system are installed, the cutting and hot pressing can be realized.

Technical parameter
