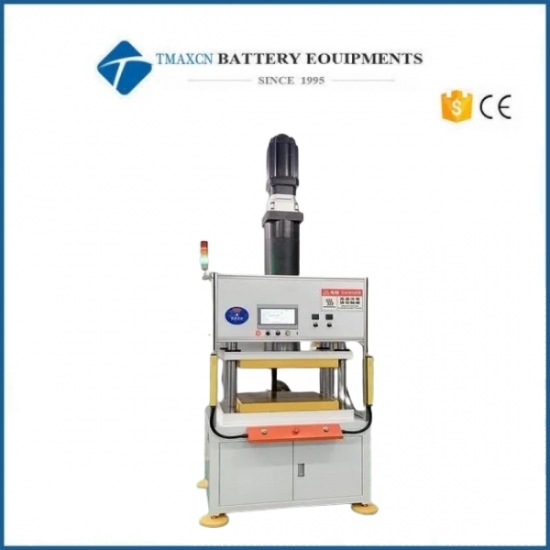

5T Single Column Hydraulic Servo Press-Fitting Equipment For Fuel Cell Making
Model Number:
TMAX-BSW08-5TCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days

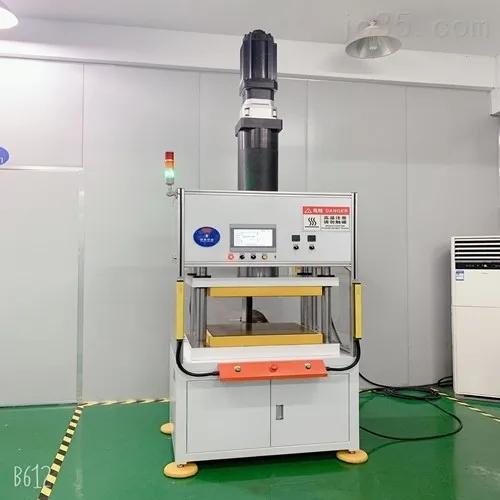

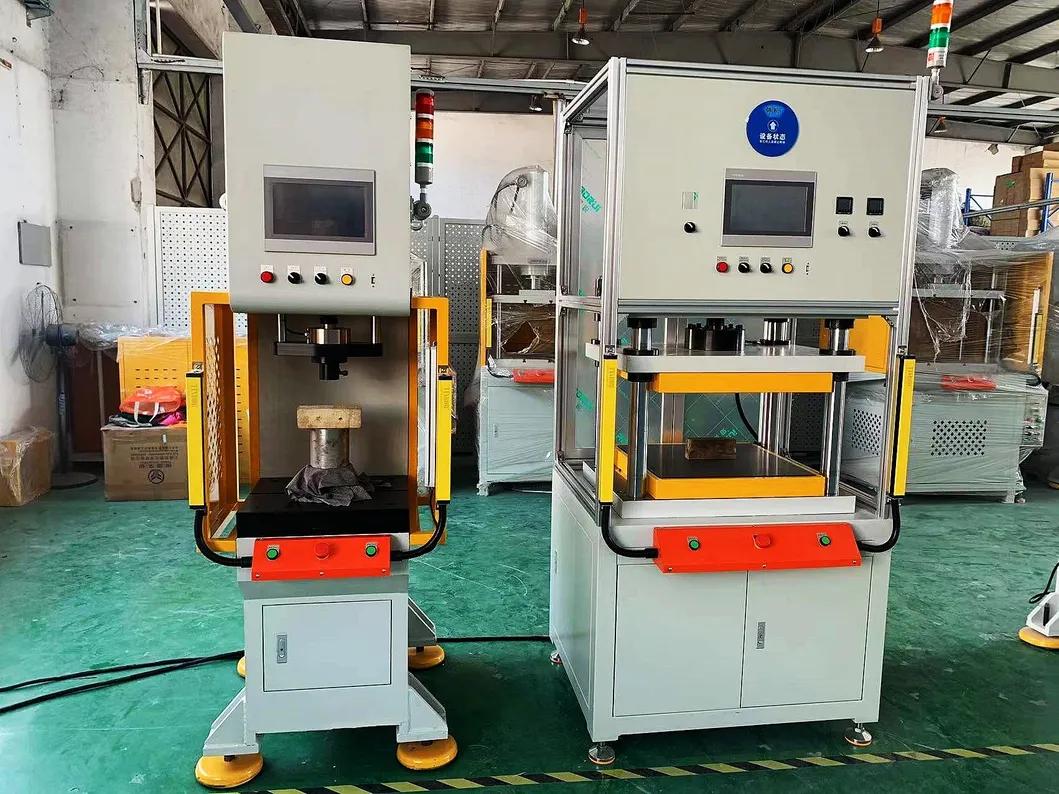

5T Single Column Hydraulic Servo Press-Fitting Equipment For Fuel Cell Making
Introduction
Fuel cell servo hot press: It is driven by a servo motor to perform precise pressure assembly operations with high-precision ball screws. It can achieve full-process closed-loop control of press-fitting force and press-in depth in pressure assembly operations. Compared with traditional pneumatic and hydraulic presses, it has an energy-saving effect of over 80%, is more environmentally friendly and safe, and can meet the equipment usage requirements in dust-free workshops.
Features
1. All values such as press-fitting force, press-in depth, press-fitting depth, and holding time can be input on the operation panel. The interface is user-friendly and the operation is simple.
2. Compared with traditional pneumatic and hydraulic presses, the energy-saving effect is over 80%, and it is more environmentally friendly, safe, and can meet the equipment usage requirements in dust-free workshops.
3. You can customize, store and call up 100 sets of press-fitting programs. Three press-fitting modes are available to meet your different process requirements.
4. Through the USB interface, the press-fitting data can be stored on a flash drive, ensuring the traceability of product processing data and facilitating production quality control and management.
Technical parameter
|
Model |
BSW08-0.5T |
BSW08-1T |
BSW08-2T |
BSW08-5T |
BSW08-10T |
BSW08-20T |
|
|
Nominal pressure(T) |
0.5 |
1 |
2 |
5 |
10 |
20 |
|
|
Surface height(E) mm |
850 |
850 |
850 |
850 |
850 |
850 |
|
|
Maximum opening distance(H)mm |
300 |
350 |
350 |
400 |
500 |
500 |
|
|
Deep throat(s) mm |
150 |
150 |
175 |
200 |
225 |
250 |
|
|
Maximum stroke mm |
200 |
200 |
200 |
200 |
200 |
200 |
|
|
Workbench size |
Left and right (L) mm |
400 |
400 |
400 |
500 |
550 |
600 |
|
Before and after (W) mm |
300 |
300 |
350 |
400 |
450 |
500 |
|
|
Speed |
Rated load speed mm/s |
≤160 |
≤160 |
≤160 |
≤100 |
≤100 |
≤100 |
|
Working speed mm/s |
≤35 |
≤35 |
≤35 |
≤35 |
≤35 |
≤35 |
|
|
Main frame size mm |
600x700x1800 |
650x750x1950 |
650x850x2100 |
680x950x2300 |
850x1000x2500 |
950x1100x3200 |
|
|
Power KW |
0.75 Kw |
1.3 Kw |
3Kw |
4.4 Kw |
7.5 Kw |
15 Kw |
|
