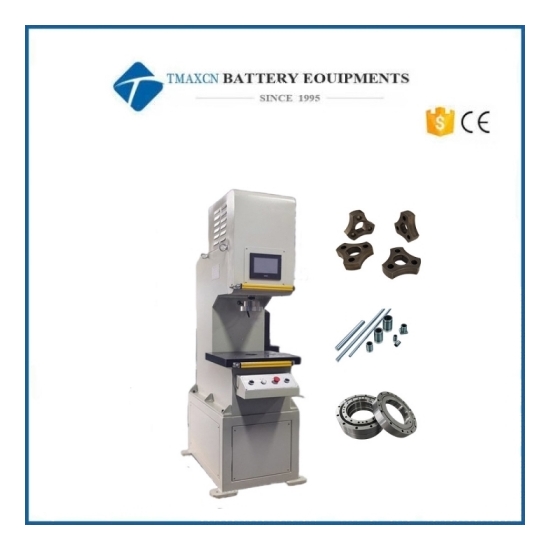

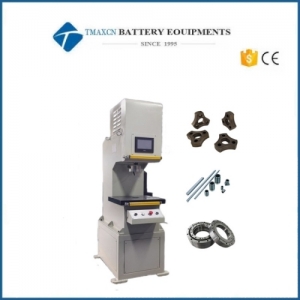

1T Laboratory Small Tonnage CNC Electric Servo Press-Fitting Machine

Model Number:
TMAX-EPC
Compliance:
CE certificate
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days

contact now

Email:David@battery-equipments.com
Whatsapp:+86 18659217588
Wechat:18659217588

DESCRIPTION

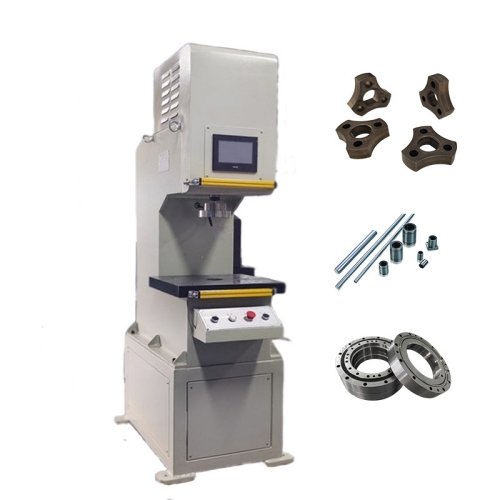

1T Laboratory Small Tonnage CNC Electric Servo Press-Fitting Machine

Introduction

The servo press, also known as the CNC servo electronic press or precision electric cylinder press-fitting machine, is abbreviated as the electronic press. Its working principle is that the servo motor drives the high-precision ball screw to perform precise pressure assembly operations, and the entire process realizes the closed-loop control of the press-fitting force and the press-in depth. It can also be configured with functions such as heating, real-time pressure curve display, multi-station, scanning code, and automation.

Product features

1. The position control accuracy of the common electric cylinder is ±0.01mm, and that of the new type of electric cylinder is ±0.001mm

2. The speed of a common electric cylinder is 30 to 50mm/s, while that of a new type of electric cylinder is over 100mm/S

3. The new type of electric cylinder adopts direct drive technology, reducing energy consumption by 30% without a reducer

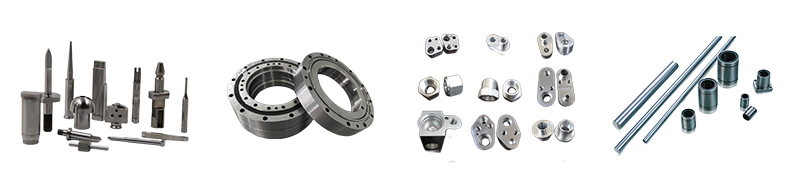

Equipment application:

1) Assembly, forming and riveting of precision components

2) Stamping blanking of films, metal sheets and plastics

Scope of application

Applicable industries: automotive industry, motor industry, electronics industry, new energy industry, etc

Technical parameter

Item		Unit	EPC Single column/EPC 4 column
Rated output (press-fitting force)		T	0.448	1	2	3.5	6.12	9	13
Maximum force (punching force)		T	1.2	2	4.5	7	12	18	26
Motor power		KW	00.93	1.2	2.3	3.7	6	9	6
Lead screw diameter		mm	40			50	80
Equipment speed	Maximum fast-forward speed	mm/s	1-330	1-250	1-250	1-250	1-200	1-200	1-200
	Maximum working speed	mm/s	1-165	1-125	1-125	1-125	1-100	1-100	1-100
Control accuracy		mm	Control accuracy 0.008/ Repeatability accuracy 0.001
Maximum opening height		mm	350		400		450	500
The upper slider stroke		mm	180	230	285	310	390	425	390
Dimensions of the lower worktable	Left and right (inside the column	mm	500		500		600		600
	Front and back (including columns	mm	400		400		500		500
The height of the workbench from the ground		mm	750		750		750		750
Optimize the external dimensions		mm	～650		～650		～750		～750
Front and rear external dimensions		mm	～550		～550		～650		～650

battery equipment
