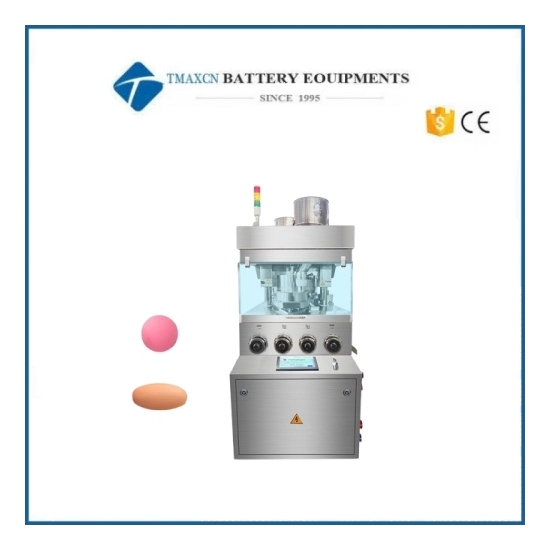

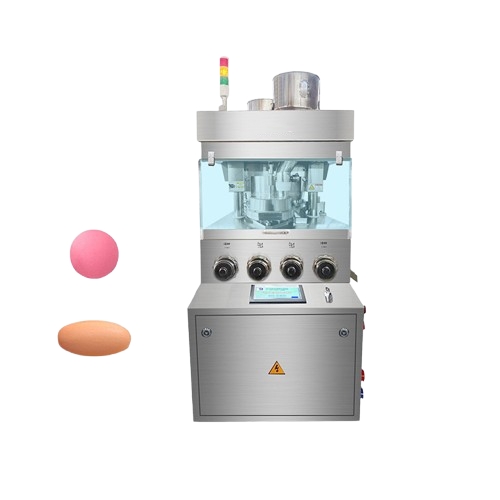

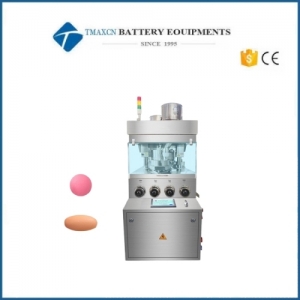

200000pcs/H Automatic Rotary Pharmaceutical Powder Tablet Compression Press Machine
Model Number:
TMAX-ZP-45Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
200000pcs/H Automatic Rotary Pharmaceutical Powder Tablet Compression Press Machine
Introduction
The multi-punch tablet press is a new type of intelligent tablet press developed by our company. It features high pressure, easy operation and maintenance. The multi-punch rotary tablet press is suitable for the pharmaceutical, chemical and food industries. The multi-punch tablet press can press pharmaceutical tablets, tablets and health products. The stainless steel rotary tablet press has stable tablet weight and sensitive adjustment. The medium-sized tablet press equipment has high precision and smooth operation. The mold, hopper, feeding device, tablet discharge port, scraper and other components of the granular tablet press are easy and quick to disassemble, and are easy to clean and maintain. The equipment is well-configured, with excellent performance of the core components, a long service life and few malfunctions.
Application
It is applicable to industries such as pharmaceuticals, health products, food, and daily chemicals.
Technical parameter
Model
ZP-45
Structured and modular design
Easy to disassemble, maintain and replace.
Output
200000 pcs/h
Raw materials suitable for pressing
Powder, granules
The types of tablets that can be compressed
Circular, irregular, two-color and ring-shaped
Maximum pressure
100KN
The maximum diameter of tablets that can be compressed
13mm, special-shaped piece 16mm
Maximum tablet thickness
8mm
Comply with GMP requirements
Non-toxic, odorless and anti-corrosion handwheel adjustment
Accuracy
The sensitivity reaches 0.1mm
Power supply
380/220V 50Hz
Power
5.5KW
Weight
1800kg
Size
1100*940*1755 mm
