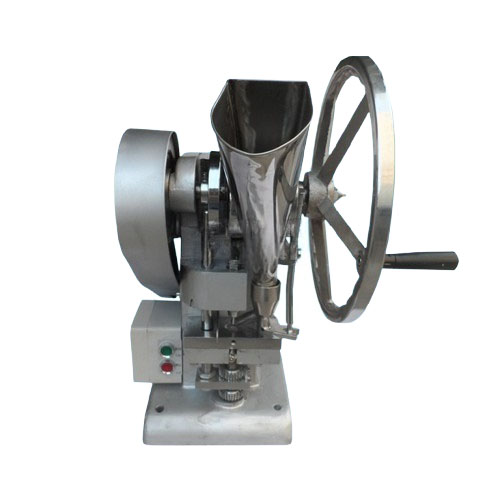

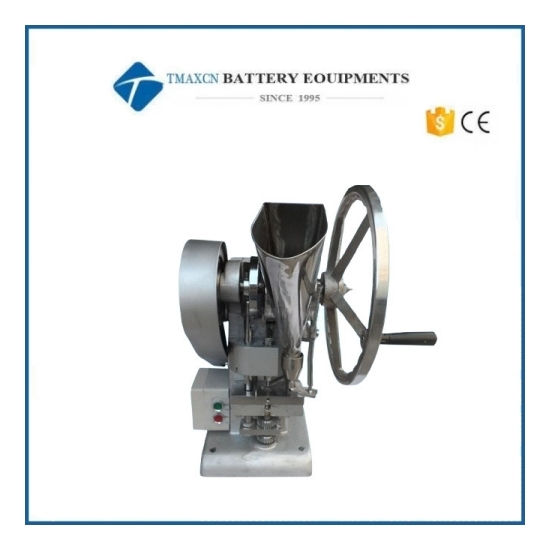

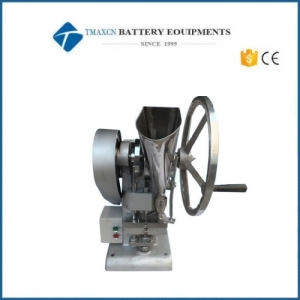

Product Introduction

The single-punch tablet press machine can compress powder and granular raw materials into tablets. This machine has excellent performance, strong adaptability, is easy to use, convenient to maintain, small in size, light in weight, and can also be operated by hand when there is no electricity. This machine is equipped with only one set of punches and dies. The filling depth of the material and the thickness of the tablet can be adjusted. It can meet the requirements of the pharmaceutical industry for pressing various Chinese and Western medicine preparations and the requirements of other industries for pressing similar products. It is widely welcomed by users in various industries.

Working principle

This machine is a small desktop electric continuous tablet press. The lower punch of the tablet press (with its working position facing upwards) extends into the middle die hole from the lower end, sealing the bottom of the middle die hole. The medicine is filled into the middle die hole by a feeder. The upper punch of the tablet press (with its working position facing downwards) falls into the middle die hole from the upper end and descends for a certain distance to press the powder into tablets. The upward punch lifts the exit hole. The lower punch rises to push the tablet out of the middle die hole, completing one tablet pressing process. The lower punch returns to its original position, preparing for the next filling.

Application scope

It is applicable to pharmaceutical factories, chemical plants, hospitals, research institutions, laboratories for trial production and small-scale production.

Processing range

The small single-punch tablet press is generally suitable for the forming processing of Chinese and Western medicine powders, metal powders, ceramic powders, electronic components, and chemical raw materials

The commonly used die specifications for 1.5-ton single-punch tablet presses range from 4mm to 12mm. The company has all the above ready-made dies available for selection. The commonly used die specifications for 5-ton single-punch tablet presses range from 4mm to 18mm. The company has all the above ready-made dies available for selection. The commonly used die specifications for 6-ton single-punch tablet presses range from 4mm to 25mm. Our company has all the above ready-made dies available for selection.

Application industries

The single-punch tablet press can press round tablets, irregular-shaped tablets and tablets with characters, which is very suitable for laboratories to develop new products.

Unlike DYP-1.5T and DYP-5, The pressure of the DYP-6T single-punch tablet press is 60kn, which is greater. The tablets produced have accurate content, small weight difference, appropriate hardness, beautiful appearance and good color. They are suitable for pharmaceuticals, chemicals, food, health care and pesticides. Small-scale production of traditional Chinese medicine tablets, Western medicine tablets, calcium tablets, lozenges, spirulina tablets, milk tablets, candy tablets, effervescent tablets, chewable tablets, seasoning blocks, chicken essence blocks, camphor balls (mothballs), aromatic tablets, disinfectant tablets, fertilizer tablets, pesticide tablets, button batteries, electronic components, metallurgical powder, ceramics, etc. in industries such as electronic batteries, metallurgy and ceramics.

Pharmaceutical industry: Traditional Chinese medicine tablets, Western medicine tablets, nutrient tablets, etc

2. Food industry: candy chips, coffee chips, throat lozenges, chocolate beans, seasoning blocks, etc

3. Health care products industry: lozenges, milk tablets, calcium tablets, propolis tablets, etc

4. Electronic battery industry: electronic components, button batteries, etc

5. Chemical industry: aromatic balls, fertilizer tablets, mosquito repellent tablets, catalysts, disinfectant tablets, powder cakes, etc

6. Metallurgical and ceramic industry: catalysts, metallurgical powder particles, ceramic particles, metal sheets, etc

Technical parameters
