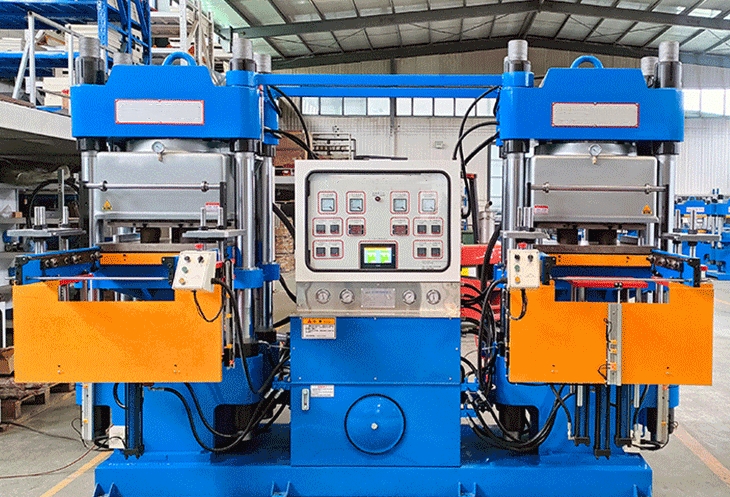

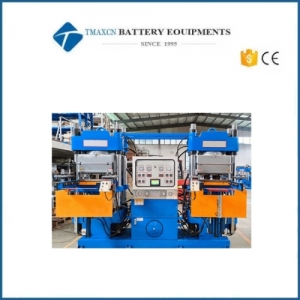

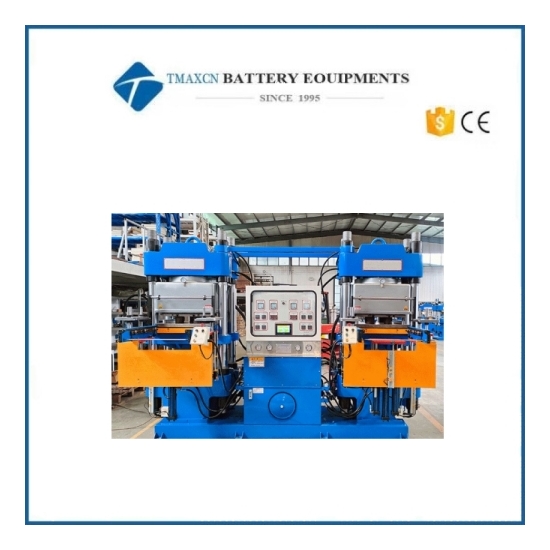

200T Industrial Double Workstation Automatic Rubber Vulcanizing Moulding Press Machine

Model

200T

250T

300T

350T

Clamping force (T)

200

250

300

350

Stroke (mm)

300

300

300

300

Hot plate distance (mm)

300-430

300-430

300-430

300-430

Work platform (mm)

Upper: 510*510

Lower: 560*560

Upper: 600*600

Lower: 650*650

Upper: 600*600

Lower: 650*650

Upper: 700*700

Lower: 750*750

Main cylinder diameter (mm)

360

400

450

475

Vacuum chamber travel (mm)

200

200

200

300

Motor power (KW)

9.5*2

9.5*2

9.5*2

11*2

Electrical power (KW)

16*2

18*2

18*2

21*2

Vacuum pump (KW)

Double heads(200m2/h)

Single  heads(100m2/h)

~

~

~

Weight (KG)

Double head 9000

11300

13300

16500

Type of mold opening

Rise/Fall - Mold entry and exit - front ejection mold opening - (Middle mold opening - ejection device)

Dimensions (L*W*H, m)

3.2*2.4*2.6

3.45*2.6*2.75

3.45*2.6*2.75

4.5*2.8*2.95
