24T Lab Manual High Temperature Hydraulic Lamination Heat Press Machine
Model Number:
TMAX-RT-24DNet Weight:
58kgWarranty:
One year warranty,one stop service,provide full solutionsPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days

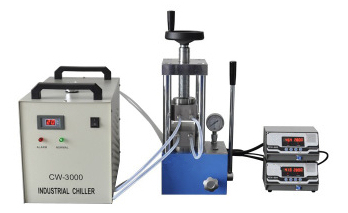

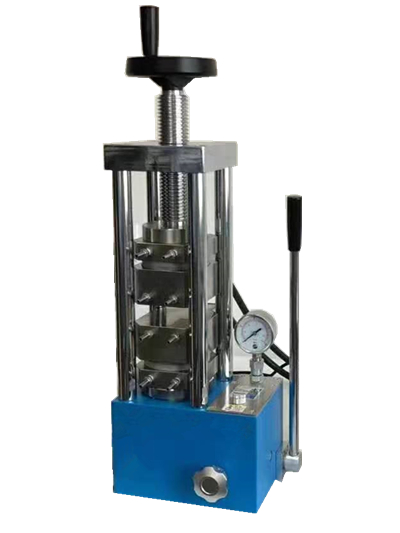

24T Lab Manual High Temperature Hydraulic Lamination Heat Press Machine
The maximum temperature of the double-plate hot press can reach 300℃ or 500℃, and the thickness of the pressed film is 50um-500um.
It is suitable for the study of polymer materials and other thin film materials, and can be used as a small plate vulcanizer.
It is suitable for rubber, plastics, leather, chemical industry, pigments, electronics, electrical appliances, textiles, hardware and other fields.
It is a matching equipment for engineering technicians of colleges and institutes to carry out spectral detection and qualitative analysis. The machine can be used as a multi-purpose machine with suitable dies. It can be used as an ordinary manual powder tablet press. At the same time, it can also be used as a press in other work situations where the corresponding pressure is required. It can also be used as a press to test the pressure resistance of various objects and so on.
Technical parameters
|
Product Name |
Lab Press Machine |
|
Module |
TMAX-RT-24D |
|
Pressure range |
0-24T（0-34MPa） |
|
Piston diameter |
Chrome plating cylinder |
|
Standard pressure gauge type |
Analog type, Ton and Mpa double-scale display |
|
Optional pressure gauge |
Digital display 0.00-40.00 MPa, accuracy 0.01 MPa at extra fee |
|
Pressurization method |
manually pressurization |
|
Temperature Controller Type |
PID Temperature Controller (Double Temperature Controller) |
|
Temperature Control Range |
RT-600.0℃ |
|
Heating Temperature of Die |
RT-300.0℃(can be customized to 500℃ high temperature die) |
|
Control accuracy |
0.1℃ |
|
Insulation mode |
Imported insulation plate |
|
Cooling mode |
Rapid cooling by water cooling (water cooler is optional) |
|
Overall structure |
Integral structure patented technology, no sealed connection of equipment, reduce oil leakage point |
|
Heating Die Size |
Double Heating Plate 100 x 100mm |
|
Power supply power |
220V/1000W |
|
Main Machine Size |
405 x 260 x 525mm (excluding optional) |
|
Size of the whole machine |
1000×470×500mm |
|
Weight |
About 58kg |
|
Instrument description |
Workspace can be increased, special hot press can be customized according to user needs |

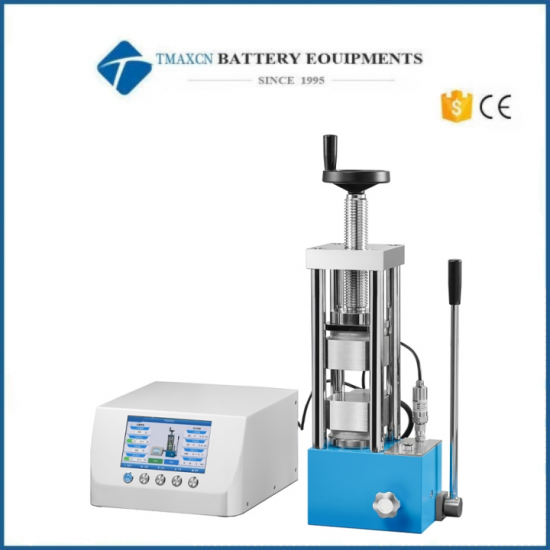

Related Products
