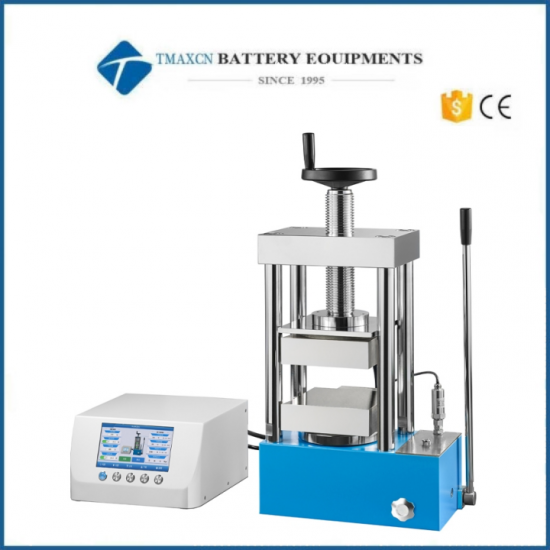

300℃ 30T Lab Manual High Temperature Heating Press Machine

  • Model Number:

    TMAX-RT-600D
  • Net Weight:

    180kg
  • Warranty:

    One year warranty,one stop service,provide full solutions
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 Days
contact now
DESCRIPTION

300℃ 30T Lab Manual High Temperature Heating Press Machine


The maximum temperature of the double-plate hot press can reach 300℃ or 500℃, and the thickness of the pressed film is 50um-500um.

It is suitable for the study of polymer materials and other thin film materials, and can be used as a small plate vulcanizer.

It is suitable for rubber, plastics, leather, chemical industry, pigments, electronics, electrical appliances, textiles, hardware and other fields.

It is a matching equipment for engineering technicians of colleges and institutes to carry out spectral detection and qualitative analysis. The machine can be used as a multi-purpose machine with suitable dies. It can be used as an ordinary manual powder tablet press. At the same time, it can also be used as a press in other work situations where the corresponding pressure is required. It can also be used as a press to test the pressure resistance of various objects and so on.


Technical parameters

Product Name

Lab Hot Press Machine

Module

TMAX-RT-600D

Pressure range

0-30T(0-34MPa)

Piston diameter

φ150mm Chrome plating cylinder

Standard pressure gauge type

Indicator/pointer type, Ton and Mpa double-scale display

Optional pressure gauge

Digital display

0.00-40.00 MPa, accuracy 0.01 MPa

Pressurization method

manually pressurization

Temperature controller

PID temperature controller

Temperature control range

RT-600.0℃

Heating temperature of die

RT-300.0℃

(can be customized to 500℃ high temperature die)

Temperature control accuracy

0.1℃

Insulation plate

Imported insulation plate

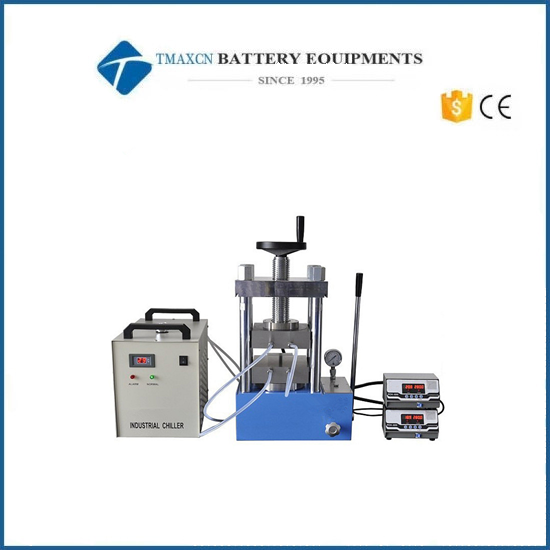

Cooling mode

Water cooling (water cooler is optional)

Overall structure

Integral structure patented technology, no sealed connection of equipment, reduce oil leakage point

Heating die size

Double Heating Plate, 180 x 180mm or 200 x 200mm

Power supply power

220V/1000W

Main machine dimensions

405 x 260 x 525mm (excluding optional parts)

Overall dimensions

970 x 470 x 525mm

Machine weight

About 180kg

Note

Workspace can be increased according to customer's actual needs. Special hot press can be customized according to user needs
