250mm Width Lab Heat Roller Press Calender Machine

  • Model Number:

    TMAX-JS
  • Dimension(L*W*H):

    Diameter 100/200
  • Net Weight:

    55kg(180lbs)
  • Warranty:

    One year warranty,one stop service,provide full solutions
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

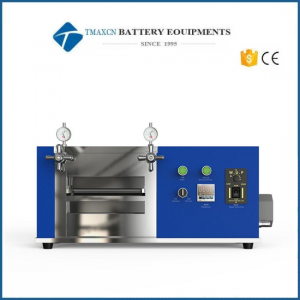

250mm Width Lab Heat Roller Press Calender Machine


1.Used in lithium battery material,metal in Lab
2.Easy to operate
3.Roll width: 100/150/200/250mm

4.One year warranty,one stop service,provide full solutions



TMAX-HR100 Small Calendar machine is mainly applied to laboratory battery materials, a small amount of gold and silver and other precious metals, copper and other nonferrous materials at a certain temperature, electric hot rolling, rolling thickness adjustable, easy to operate. Particularly suitable for clean energy materials lithium plate thinning and increased density.


ITEM

Unit

Data

Size(L*W*H)

mm

390x250x356

Weight

kg

55

Roll Width

mm

100

Hot rolling width

mm

100

Calendering thickness

mm

0~2

Dial Gauge Accuracy

mm

0.01

Rolling Speed

mm/sec

0~10

Roller Surface Max. Tem

°C

130

Surface hardness of rollers



HRC60-62

Total Power



AC220V,720W
