25L Digital Vacuum Ovens With High Temperature Controller & Inner Chamber

  • Model Number:

    TMAX-6020
  • Compliance:

    CE certificate
  • Warranty:

    Two Years limited warranty with lifetime support
  • Delivery Time:

    3 days
contact now
DESCRIPTION

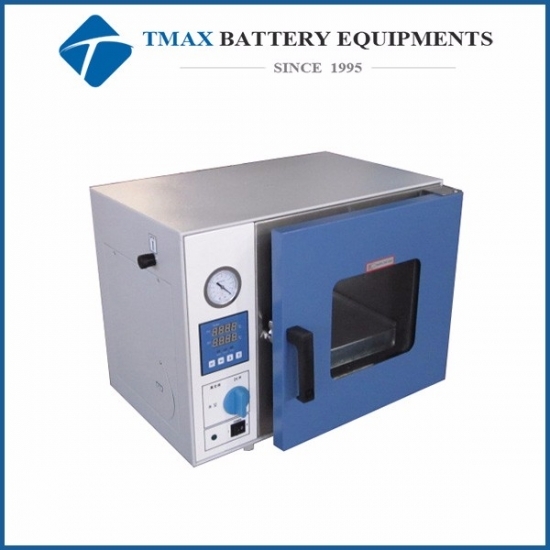

25L Digital Vacuum Ovens With High Temperature Controller & Inner Chamber


Power Supply

Standard 220 V AC  50 Hz.

Power

400 W

Inner Chamber size

300 mm x 300 mm x 275mm    ( 12 x 12 x 11",  25 Liter )

Outside size

605mm x 490mm x 450mm(without vacuum pump)

Vacuum

< 133pa

Shipping size

650mm x 550mm x 500mm

Shipping weight

170 Lbs


In addition ,we can also provide the follows :

Model

DZF-6020

DZF-6050

DZF-6090

DZF-6090

Working Room Size(mm)

300*300*275

415*370*345

450*450*450

560*600*640

Overall Size(mm)

605*490*450

710*560*550

610*660*1400

720*820*1750

Loading Shelf/Bracket

1 layer

2 layer

2 layer

3 layer

Temperature range

RT+10~250 C

Temperature resolution

±0.1°C

Constant temperature volatility

±1°C

Achieved vacuum degree(pa)

-133

Time range

1~9999M

Total power

450W/1450W/1400W/2200W

Power supply requirements

AC220V ± 10% 50 ± 0.5HZ (Single-phase three-wire system)

AC220V ± 10% 50 ± 0.5HZ (Single-phase three-wire system)



                  High Temperature Vacuum Oven



                  High Temperature Vacuum Oven



                 High Temperature Vacuum Oven




 battery equipment


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.



1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
