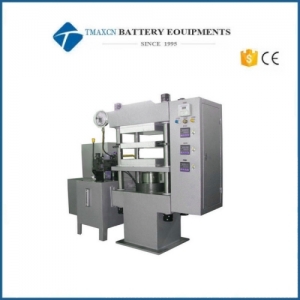

25T Laboratory Hydraulic Rubber Vulcanizing Press Machine
Model Number:
TMAX-ZB-910Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days

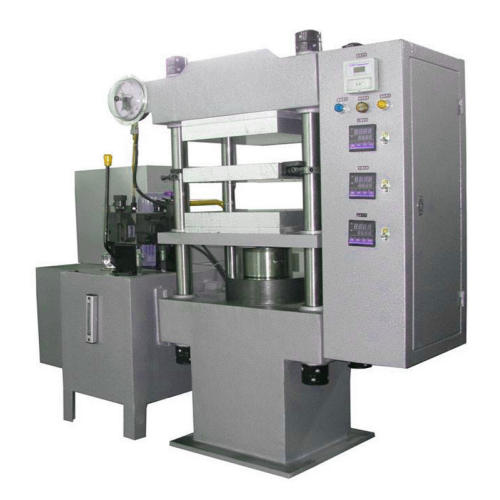

25T Laboratory Hydraulic Rubber Vulcanizing Press Machine
Applications
The ZB-910 small flat vulcanizing machine is suitable for pressing various molded products, such as rubber and plastic, and is also applicable to thin sheet products.
Performance characteristics
The main unit is of a four-column integral structure, with an upward pressing type. It is divided into three parts: the main unit, the oil tank and the electrical control box. The electric heating is controlled by an automatic temperature controller in three channels, which can be adjusted freely within the range of 20 to 200 degrees. Once the temperature is reached, the circuit can automatically maintain a constant temperature. After the set vulcanization time is achieved, an automatic alarm will sound.
Main Technical
|
Nominal clamping force |
0.25MN (i.e., 25 tons) |
|
Hot plate size |
350*350mm |
|
Hot plate spacing |
150mm |
|
Number of working layers |
2 layers |
|
Maximum hydraulic pressure |
14.5MPa |
|
Maximum stroke of the plunger |
250mm |
|
Heating power |
7.2KW |
|
Motor power |
2.2KW |
|
Dimensions |
1250x550x1420 mm |
|
Net weight |
Approximately 1T |
|
Note |
This equipment requires 25 liters of 46# hydraulic oil, which should be prepared by the user. |
