3-15T Two Column Manual Powder Press Machine with Optional Digitale Pressure Gauge
Model Number:
TMAX-SYPDimension(L*W*H):
245*245*450(mm)Net Weight:
50kgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportDelivery Time:
3 Days
3-15T Two Column Manual Powder Press Machine with Optional Digitale Pressure Gauge
New SYP-TS digital display series
SYP-TS series protective hydraulic press is based on SYP-T pointer series upgrade and optimize the pressure display series, using XNNETS "S" type digital display pressure gauge, display accuracy of 0.01MPa, is very suitable for safety and pressure control precision requirements of the laboratory use.
With a specific mold, it can be pressed into shape for all kinds of powder samples. It is a common supporting equipment for calcium and iron analysis, infrared spectroscopy (IR), X-ray fluorescence (spectrometer) and other analytical instruments.
At the same time the machine is also suitable for other need corresponding pressure in the workplace, as the use of press, testing the pressure degree of various objects, etc., the application is very wide.
Main Parameter
|
Model |
SYP-3BS |
SYP-5BS |
SYP-12BS |
SYP-15BS |
|
Pressure range |
0-3T(0-28.8Mpa) |
0-5T(0-31.4Mpa) |
0-12T(0-30Mpa) |
0-15T(0-30Mpa) |
|
Pressure conversion |
1T=9.6Mpa |
1T=6.28Mpa |
1T=2.5Mpa |
1T=2.0Mpa |
|
Piston diameter |
Φ35 chrome plated cylinder |
Φ45 chrome plated cylinder |
Φ70 chrome plated cylinder |
Φ80 chrome plated cylinder |
|
Maximum piston stroke |
30mm |
30mm |
30mm |
30mm |
|
Type of pressure gauge |
XNNETS "S" digital pressure gauges, range 0.01-40.00 MPa, accuracy 0.01MPa |
|||
|
Pressure mode |
Manual pressurization/manual slow pressurization |
|||
|
Pressure stability |
≤1MPA/10min |
|||
|
Overall structure |
One-piece structure, tightly connected equipment, reduce oil leakage points |
|||
|
Worktable diameter |
Φ80mm |
Φ80mm |
Φ80mm |
Φ90mm |
|
Working space |
96*130mm |
96*130mm |
96*130mm |
140*150mm |
|
Overall dimension |
225*155*380mm |
225*155*380mm |
225*155*380mm |
245*175*390mm |
|
Weight |
28kg |
28kg |
28kg |
38kg |
|
Note |
Two column tablet press, column height can be customized; Optional "S" digital pressure gauge; Optional mold; Accuracy 0.01 MPa, more accurate pressure control |
|||

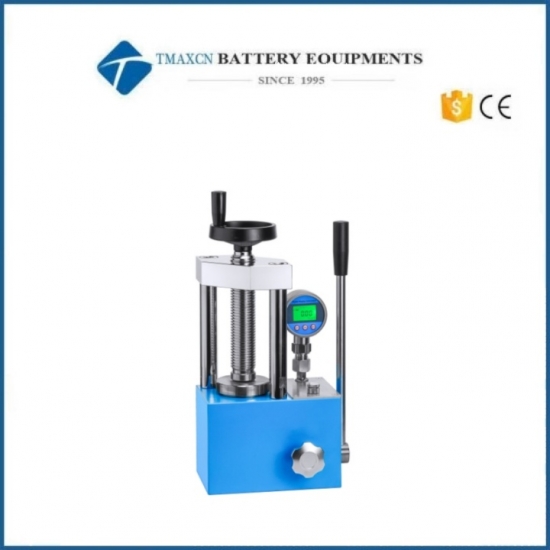

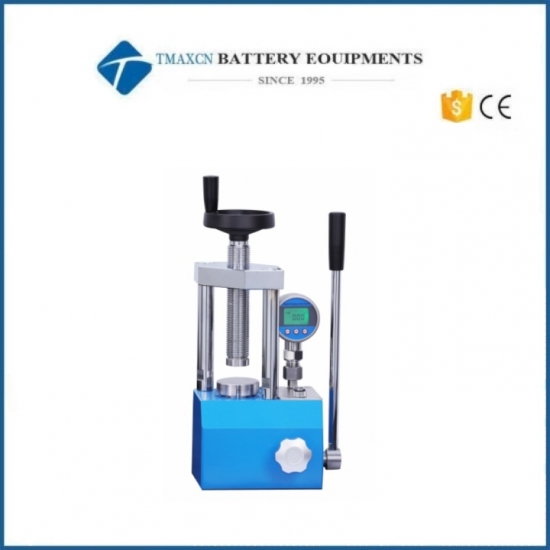

Two Columns; Digital Pressure Guage

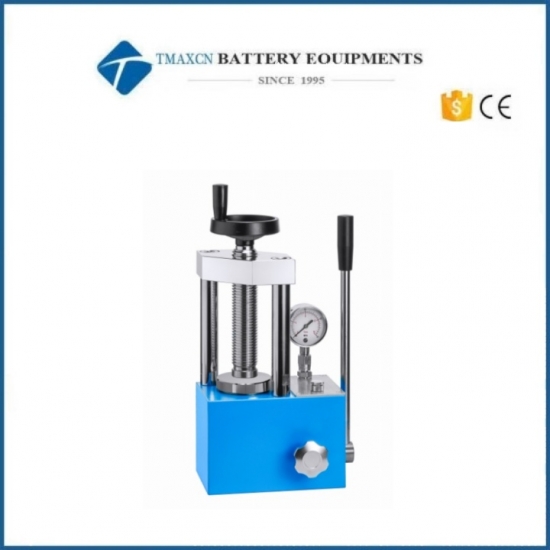

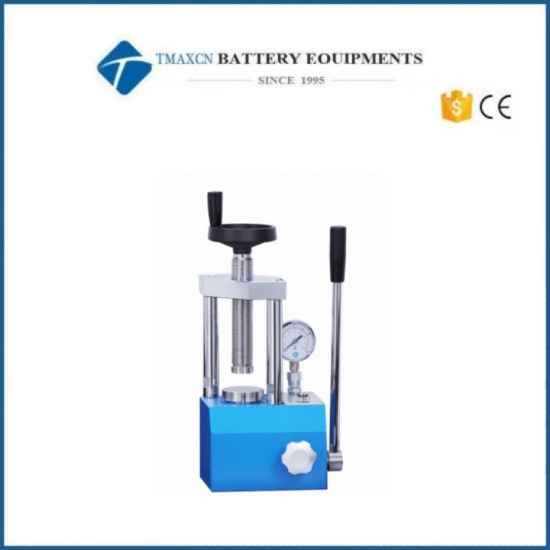

Two Columns; Pointer Pressure Guage
Four Columns; Pointer Pressure Guage
Four Columns; Digital Pressure Guage

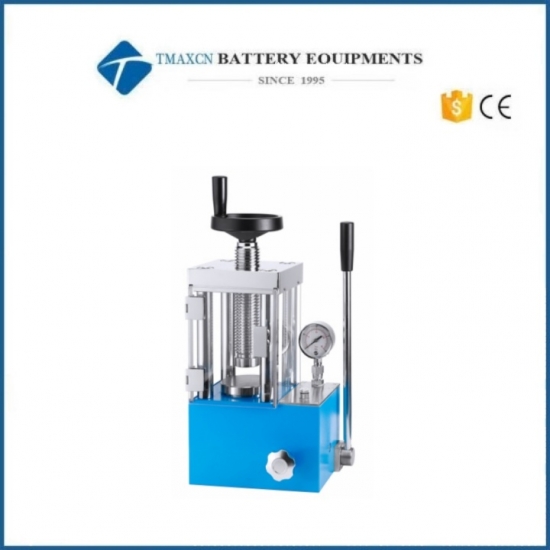

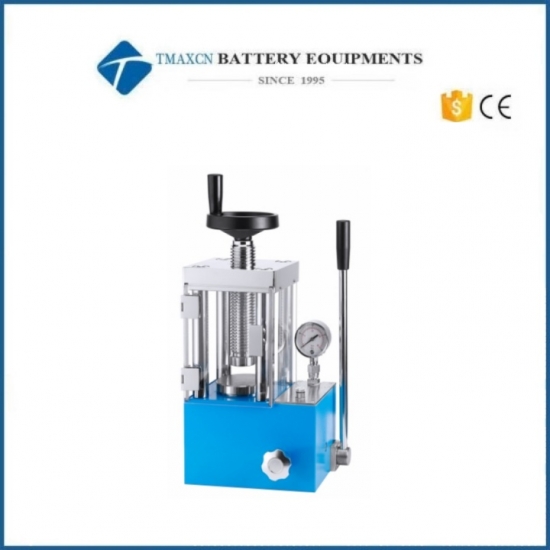

Four Columns; Pointer Pressure Guage; Plexiglass shield
1. We supply machines with battery technology support.
2. We supply full set of lithium battery equipment for lab research, pilot scale research and production line.
|
|
|
|
|
|
|
|
|
|
|
Lab Mixer Machine |
|||
|
|
|
|
|
1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
