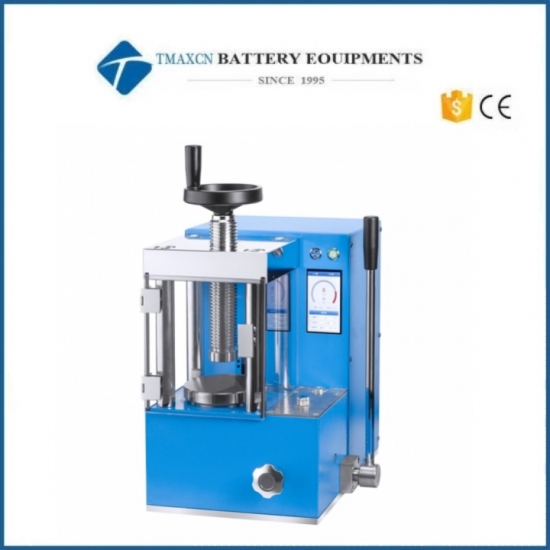

Lab 20T Electric or Manual Dual-purpose Tablet Press
Model Number:
TMAX-PCD-20SDimension(L*W*H):
245*245*450(mm)Net Weight:
50kgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportDelivery Time:
3 Days
Lab 20T Electric or Manual Dual-purpose Tablet Press
Operating interface
Parameter setting: Click Parameter setting to enter the Setting menu.
Pressure settings: The pressure applied can be set.
Time setting: Set pressure timing, when the holding time is up. The device will alert you that pressure can be relieved.
Sample size: Set the shape and size of the sample, the device will automatically calculate the pressure of the sample according to the size you set, so as not to cause overpressure.
Start button: Click the start button and the device starts to operate according to the set parameters. When the pressure reaches the set value, the pressure will automatically stop, and the automatic pressure will start. The "Start" button becomes "Stop"
Stop button: Click the stop button, the device exits the pressure retaining program. Then open the oil stem to remove the pressure.
Operating interface
Technical parameter
|
Instrument type |
PCD-20S |
|
Pressure range |
0-20T(0-28MPa) |
|
Piston diameter |
Chrome plated cylinder Φ95mm(d) |
|
Overall structure of subject |
Utility model patent 201320040218.0 |
|
Manometer |
Digital display 0.0 to 40.0MPa |
|
Maximum piston stroke |
30mm(T) |
|
Pressure stability |
≤1MPa/10min |
|
Pressure mode |
Electric pressure/manual pressure |
|
Supplementary pressure system |
Automatic pressure replenishment/manual slow pressure |
|
Table diameter |
Ф 105 mm (D) |
|
Number of columns |
4 pillars |
|
Column spacing |
80X150mm(MXN) |
|
Overall dimension |
245X415X415mm(LxWXH) |
|
Power source |
220V(50Hz/60Hz) |
|
Equipment weight |
58Kg |
|
Powder tablet press size diagram |
|
Pressure conversion
Tip: The general system pressure should not exceed 35MPa, otherwise it will affect the service life of the equipment.
1. We supply machines with battery technology support.
2. We supply full set of lithium battery equipment for lab research, pilot scale research and production line.
|
|
|
|
|
|
|
|
|
|
|
Lab Mixer Machine |
|||
|
|
|
|
|
1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
