300 mL Lab Vacuum Planetary Centrifugal Mixer with Two Containers & Optional Independent Speed Control
Model Number:
TMAX-TP300SDimension(L*W*H):
650L*580W*550HNet Weight:
95KGCompliance:
CE certificateWarranty:
2 years warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

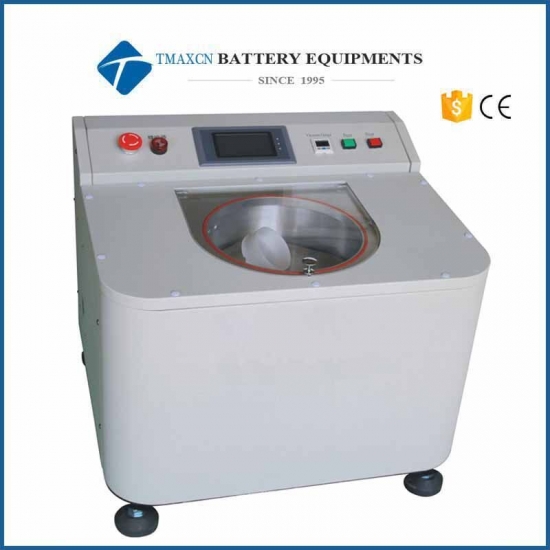

300 mL Lab Vacuum Planetary Centrifugal Mixer with Two Containers & Optional Independent Speed Control
The planetary centrifugal vacuum mixer is designed for mixing and deaerating various kinds of liquid, slurry, paste, and powder materials. It could be used for mixing and homogenizing nanopowders, nanotubes, ceramics powders, battery powder/slurry, metal powders, and especially high viscosity slurry/paste. The vacuum mixing capability is integrated for best mixing results. The standard package includes containers and counter-weights.
Specification
|
Name |
300 mL Vacuum Planetary Centrifugal Mixer
|
|
Equipment type |
TMAX-TP300S
|
|
Container Capacity |
300ml*2（Cup) |
|
The optimal capacity of mixing material |
2-180ml*1（Cup) |
|
Operation Type |
Human-machine Interaction Mode |
|
Revolution Speed |
100-2000RPM |
|
Rotation Speed |
Invariableness |
|
Vacuum |
60L/min、About -98KPa 60/Minute,APROX.-98KPa |
|
Storage Program |
5 storage programs (each program can be set to five steps) |
|
Protection |
Door Cover ,Breakdown, Overload |
|
Dimension(mm) |
650L*580W*550H |
|
Voltage |
0.5-1.0KW,220V |
|
Weight |
120KG Net Weight:95KG |
|
Power Supply |
（Uniphase),AC220V.50-60Hz |
|
Clamp |
Option |
|
Syringe |
Max30CC |
