Centrifugal Stirring Defoaming Machine with Stainless Steel Swing-out Rotor Kit

  • Model Number:

    TMAX-EQ-DM-0636
  • Type:

    Swing-out Rotor Kit
  • Dimension(L*W*H):

    364 mm L x 280 mm W x 266 mm H
  • Net Weight:

    40 kg
  • Compliance:

    CE certificate
  • Warranty:

    2 Years with lifetime support
  • Delivery Time:

    3 days
contact now
DESCRIPTION

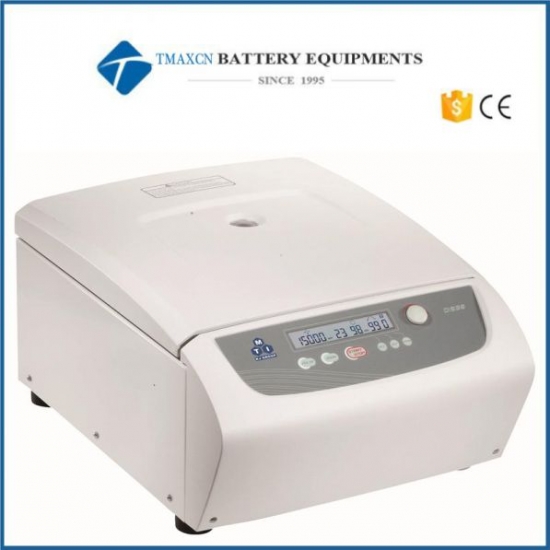

Centrifugal Centrifugal Stirrng Defoaming Machine with Stainless Steel Swing-out Rotor Kit



The centrifugal TMAX-EQ-DM-0636 is designed for separating dense substances from the media along the radial direction. It could be used for high throughput sample preparation.

SPECIFICATIONS:

Features


  • The centrifugal is suitable for tubes with caps
  • The swing-out bucket rotor is compatible with standard tubes up to 100 mL
  • Speed Range from 300 rpm to 6,000 rpm
  • Maximum capacity of the mixing and mill: 100 mL x 4
  • 9 programmable segments; store up tp 9 programs in memory
  • Maintenance-free brushless DC motors

Voltage Input

  • AC 110V or AC 220V, single phase, 50 / 60 Hz
  • Please select the working voltage from product options

Power

  • Maximum 1200 W

Rotating Speed

  • Brushless DC motor
  • 9 programmable segments; store up to 9 programs in memory
  • Max reactive centrifugal force: 4300xg
  • Speed from 300 rpm to 6,000 rpm
  • Increment: 10 rpm
  • Speed accuracy: +/- 20 rpm

Tube Container Capacity

  • Swing-out rotor: Maximum 100 mL x 4
  • Optional Angle fix rotor: Maximum: 50 mL x 6

Timer

  • 1 - 99 minutes
  • The centrifugal process could be held and continued

Safety and Protection

  • Dual door safety interlock
  • Over-speed protection
  • Chamber and motor over-temperature protections
  • Imbalance detector

Dimension

  • 364 mm L x 280 mm W x 266 mm H

Net Weight

  • 40 kg

Compliance

  • NRTL Certified

Warranty

  • Two years limited warranty with lifetime support
Swing-out Rotor Kit




 battery equipment


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.



1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
