3000W Ultrasonic Metal Cap Welder With Touch Screen Controller

  • Model Number:

    TMAX-VS-24A
  • Input Power:

    3000W
  • Compliance:

    CE certificate
  • Warranty:

    One Year Limited Warranty With Lifetime Support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

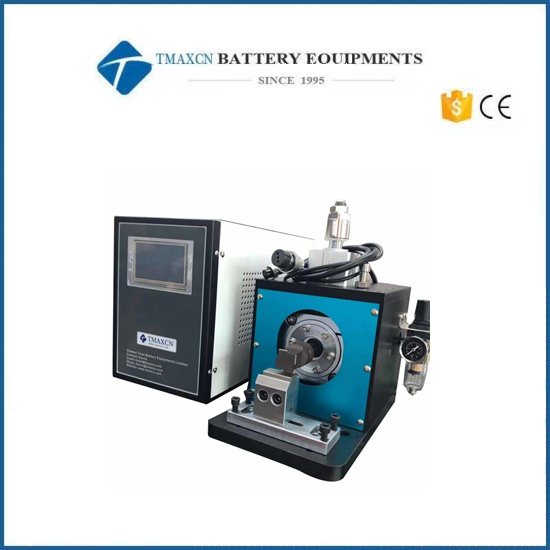

3000W Ultrasonic Metal Cap Welder With Touch Screen Controller


TMAX-VS-24A is a CE Certified ultrasonic metal welder with touch-screen controller. It is designed for welding stacked electrode foils/sheets and tabs onto current collectors to prepare Li-ion pouch cells & cylindrical cells.


The 3000w battery welder can weld stacked electrode with 10-35 layers aluminum foil or copper foil with Al tab and Nickel tab.



Note:If you are not quite clear about what welder would be suitable for you,please consult the sales manager with following parameters,they will find a solution for you:

1. Weld material
2. Thickness of the material

3. Layer number of material


Features

Preset welding programs selectable for Al and Cu (Note: Welding power can be readjusted to fit the needs for welding other types of metals such as Au, Fe, Ni, Ag...).

Input Voltage

AC 110V  or 220V +/-10%, 50/60Hz

Max. Power Consumption

3000W→can be customized

Welding Area

4mm(L) x 4mm(W)→can be customized

Welding Head

The welding heads and welding base are included for welding both aluminum & copper current collectors from 2 to 40 layers

Ultrasonic Frequency

24K Hz→can be customized

Product Dimensions

1.     Controller: 360mm(L) x 480mm(W) x 200mm(H)

2.     Welder: 200mm(L) x 460mm(W) x 270mm(H)

Net Weight

70kg

Compliance

CE Certificate

Warranty

One Year limited warranty with lifetime support

 Recommendation

For the pouch cell assembly, we also recommend you the following items:

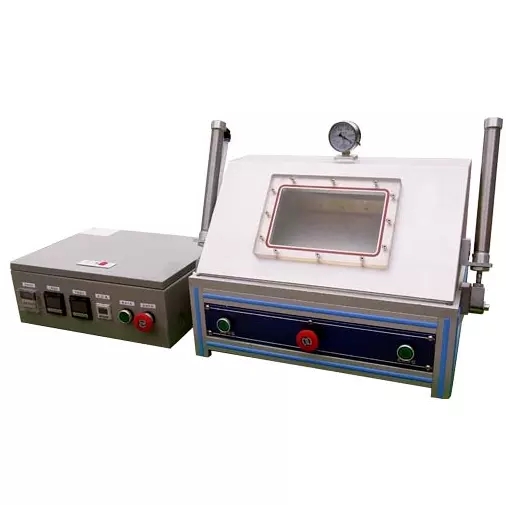

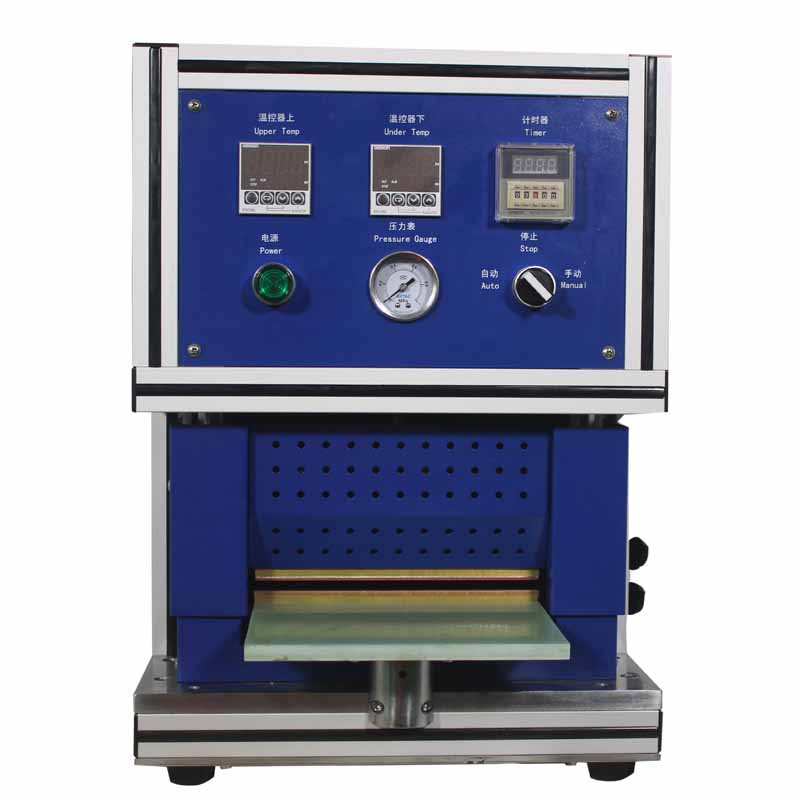

        forming machine           hot sealer              vacuum sealer

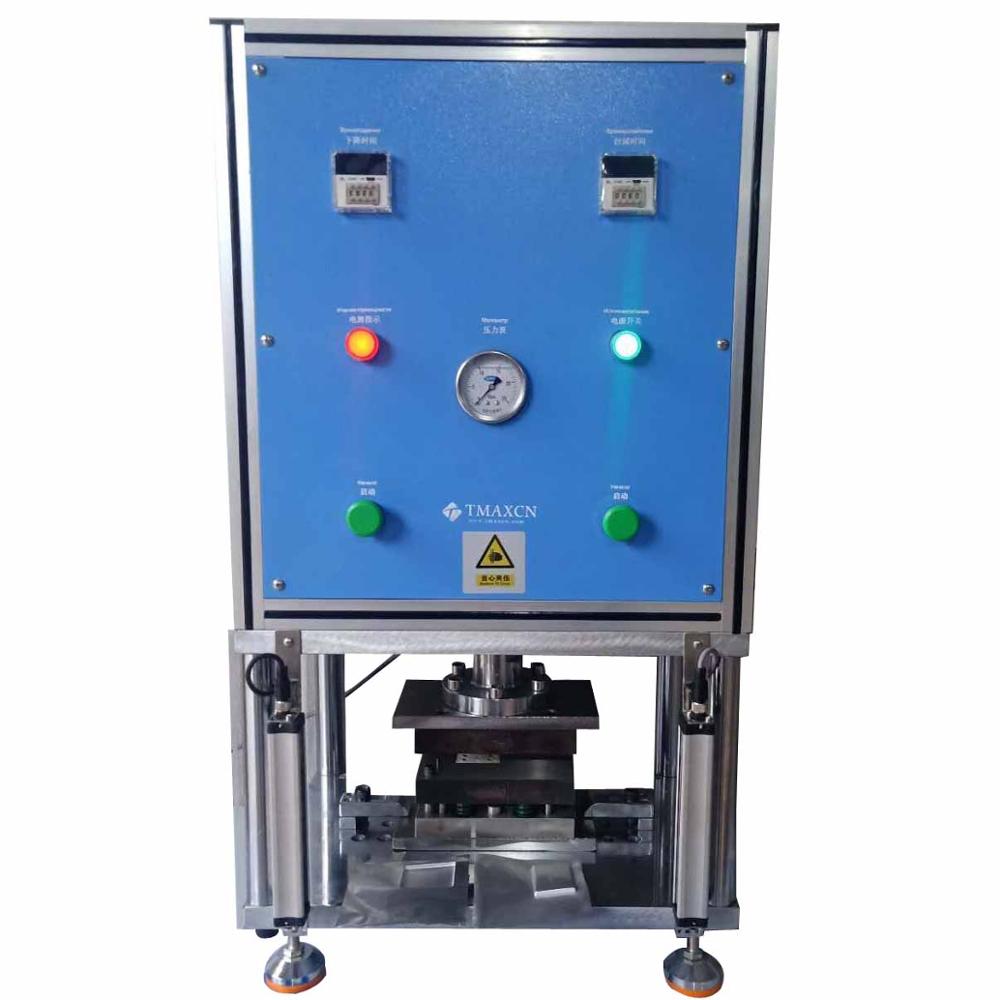

   Forming machine             Hot sealer with tab          Vacuuming seal     stacker             die cutter           aluminum film

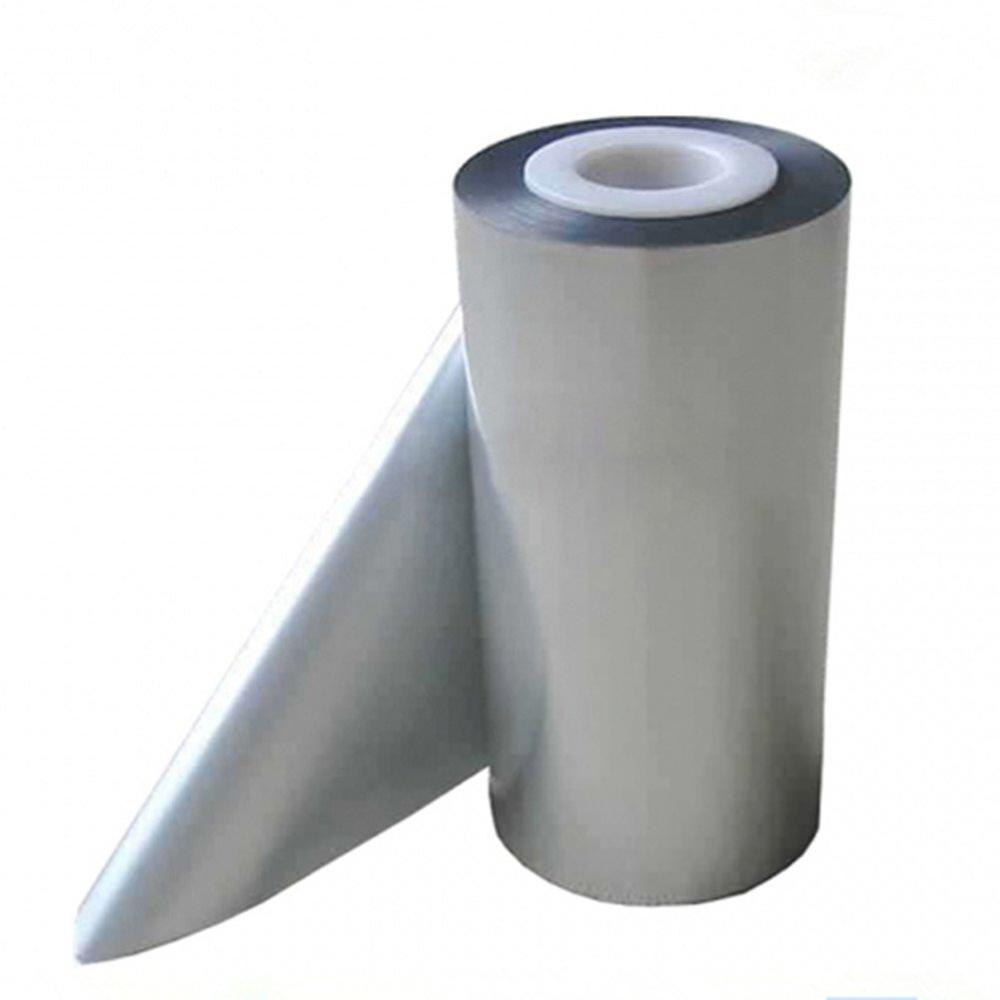

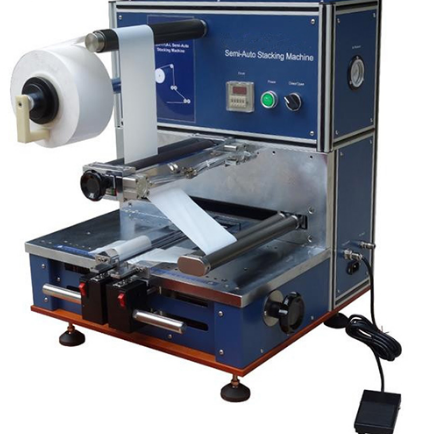

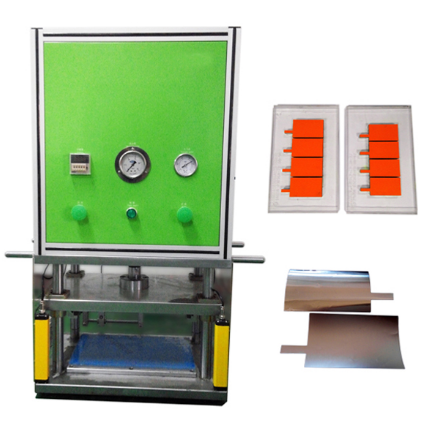

  Stacking machine           Die Cutter       Aluminum Laminated Film



ultrasonic spot welder

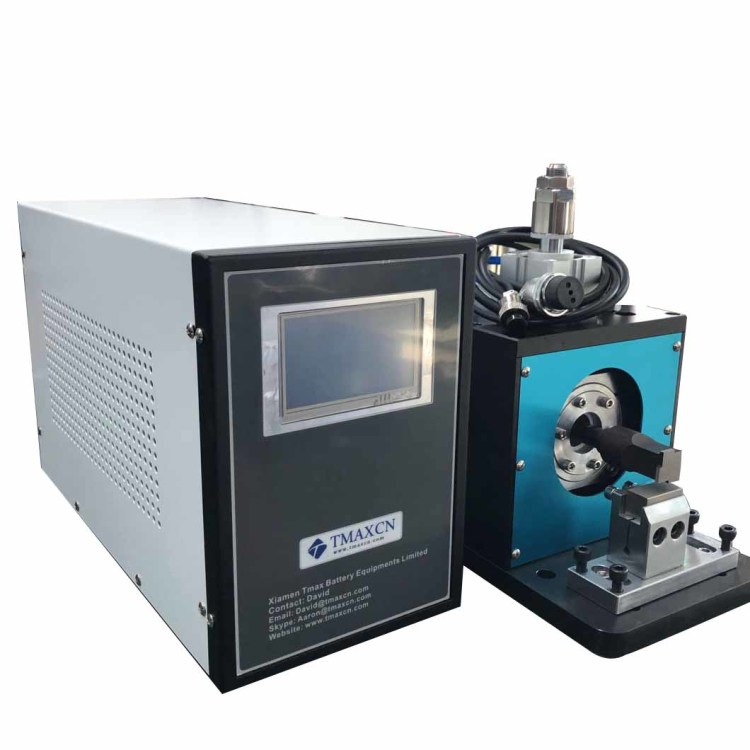

ultrasonic spot welder5

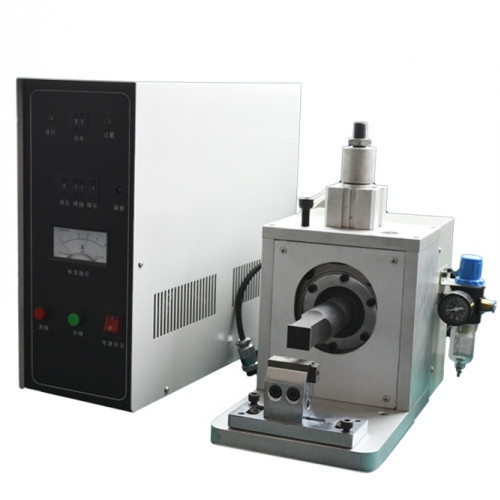

ultrasonic spot welder1

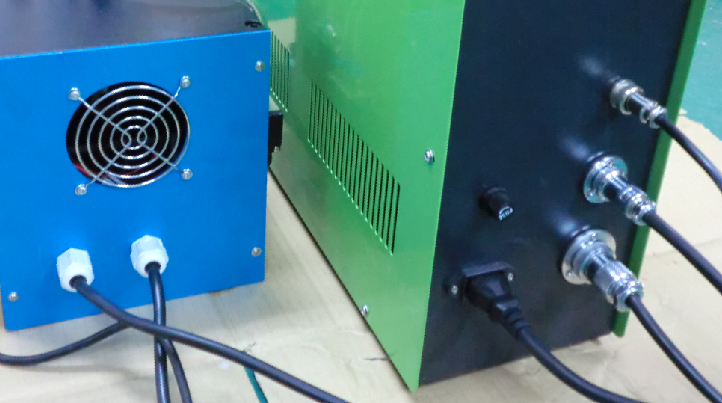

ultrasonic spot welder2

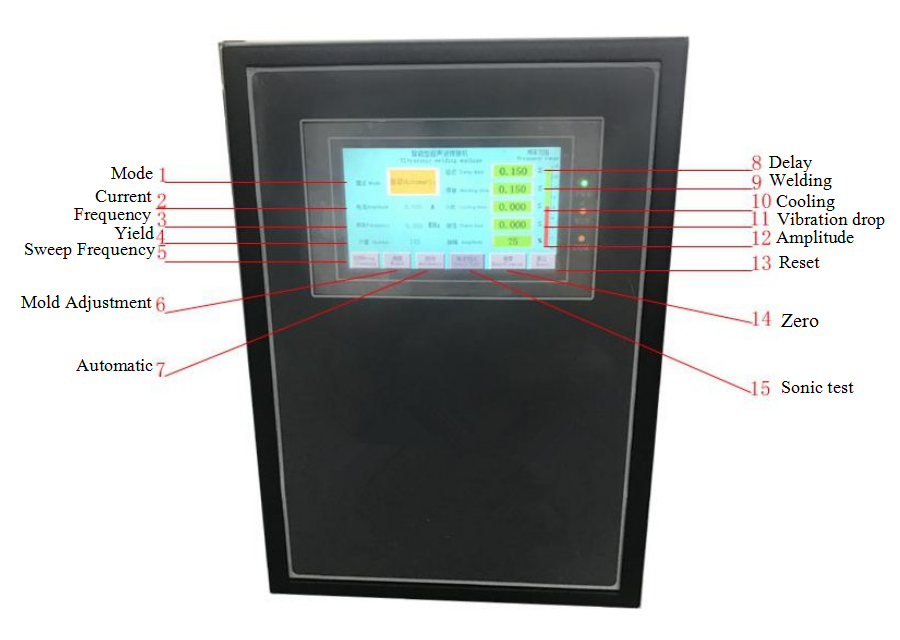

ultrasonic spot welder3

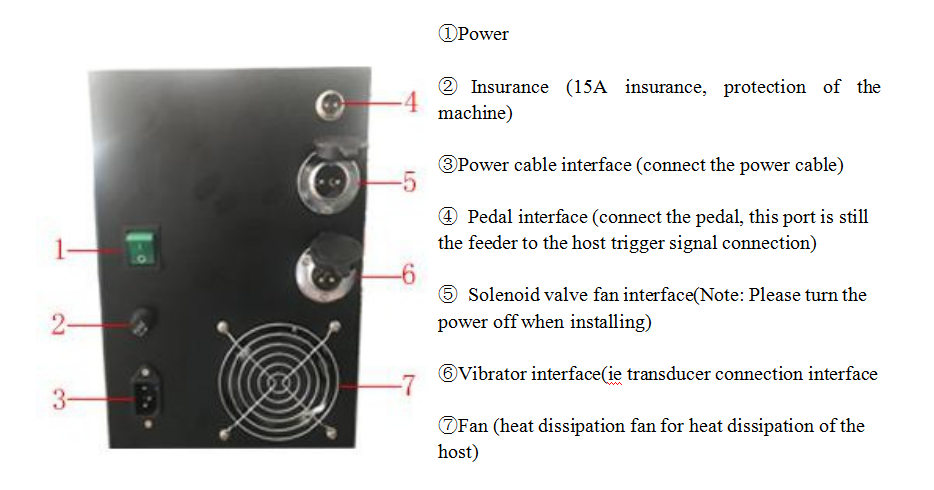

ultrasonic spot welder4

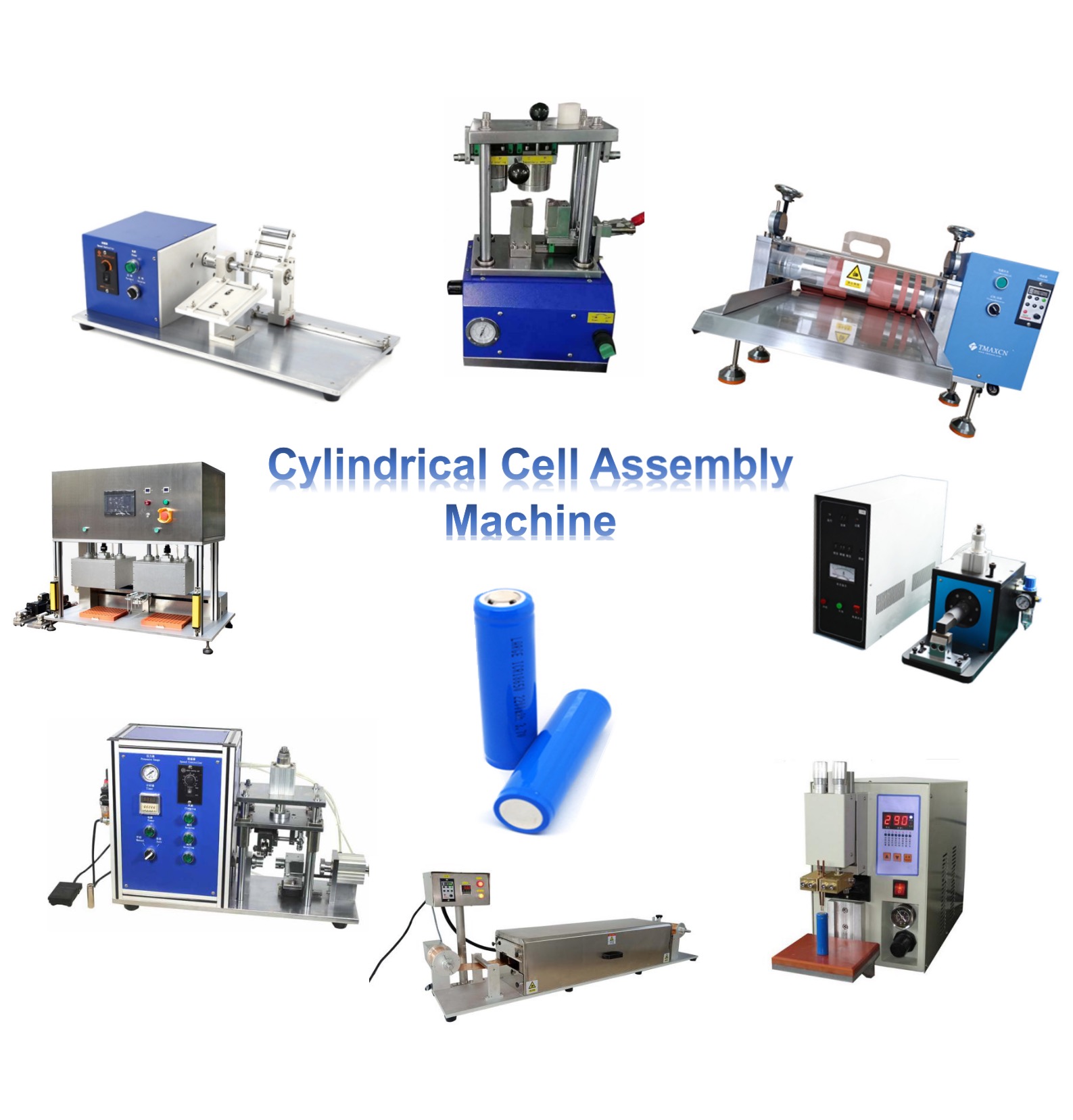

cylindrical battery assembly machine
