4000W Ultrasonic Metal Tab Spot Welder (MAX 40 layers tabs) with Touch-Screen Digital Controller

  • Model Number:

    TMAX-DH1000
  • Input Power:

    4000W
  • Dimension(L*W*H):

    Welding Area: 6mm*6mm It Can Be Customized
  • Compliance:

    CE certificate
  • Warranty:

    Two Year Limited Warranty With Lifetime Support
  • Delivery Time:

    3 days
contact now
DESCRIPTION

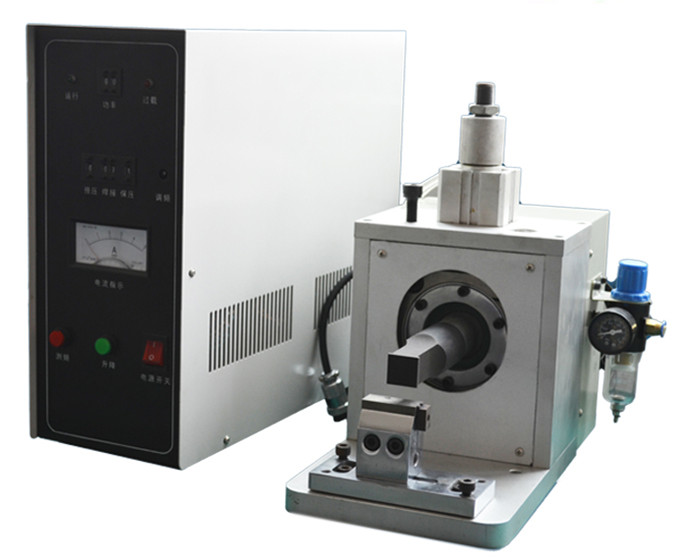

4000W Ultrasonic Metal Tab Spot Welder (MAX 40 layers tabs) with Touch-Screen Digital Controller

The welder is a CE Certified ultrasonic metal welder designed for welding stacked electrode sheets (Copper & Aluminum)

and tab onto current collectors to prepare Li-Ion pouch cells in R&D laboratories.

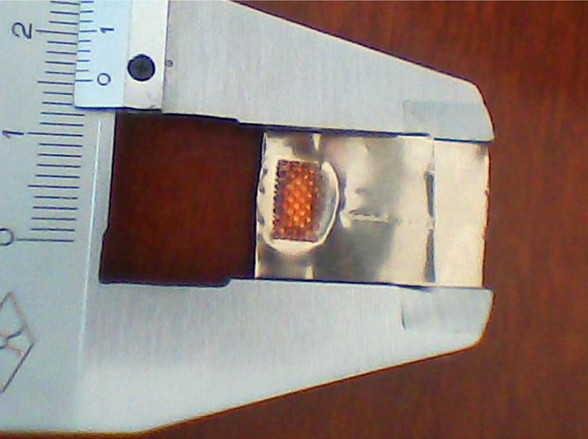

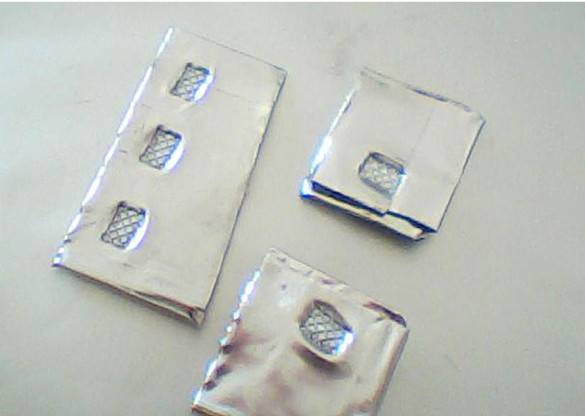

2-40 layers electrode sheets welder

SPECIFICATIONS:

Input Voltage

110V AC or 240V AC 50/60Hz

Max. Power Consumption

4000W

Welding Area6

6mm(L) x 6mm(W)  It can be customized

Welding Head

.Two welding heads and three welding bases are included

 for welding both aluminum & copper current collectors from 2 to 40 layers

.Two types of patterns for various uses:

Ultrasonic Frequency

 50/60Hz  Adjustable frequency

Pneumatic Control

Air pressure at 85 psig  (Air Compressor is not included)

Product Dimensions

· Controller: 370mm(L) x 490mm(W) x 200mm(H)

Welder: 300mm(L) x 460mm(W) x 280mm(H)

Compliance

CE Certified

Warranty

Two Year limited warranty with lifetime support

Net Weight

90 kg

pouch cell machine

ultrasonic welder

ultrasonic welder

ultrasonic welder



 battery equipment


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.



1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
