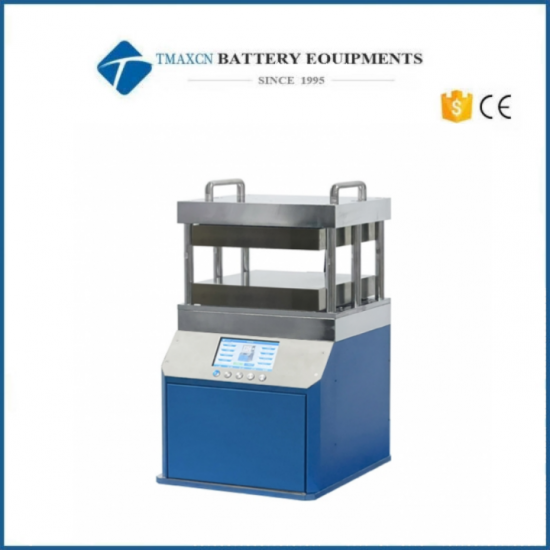

40T High Temperature Automatic Hot Press Machine Optional Cooling Water Cooler

40T High Temperature Automatic Hot Press Machine Optional Cooling Water Cooler

Operation interface (Manual mode)

Standard interface: The heating temperature and constant temperature time of the upper and lower plates can be set separately on the interface.

Pressurization button: Press according to the parameters set on the interface.

Upper plate button: Heat the upper heating plate.

Lower plate button: Heat the lower heating plate.

Timing switch: The timing function can be turned on and off.

Operation interface (Automatic mode)

Start button: It can be pressurized according to the multi-stage pressurization program.

Stop button:Press the stop button to stop the heating process.

List/Curve: The current display state can be switched between list and curve

Setting interface

Tap Settings on the operation screen to enter the Settings screen. The Settings screen has four ICONS.

Program Settings:Multi-stage pressure procedures and pressure holding times can be set.

Sample setting: The shape and size of the sample can be set to facilitate the user to calculate the pressure of the sample.

Data management: Previously saved data records can be invoked and modified..

System Settings: Administrators can set various parameters, enter the password "666"

Setting interface

Multi-segment program Settings: Up to 5 segments of pressurized programs can be set.

Invoke button: Invoke the set parameters to the automatic operation interface for pressure.

Save button: Save the set parameters to the database for later invocation.

Back button: Returns to the Settings screen

Mold operation diagram

Operation procedure

Technical parameter
