50-500mL Lab Planetary Ball Mill Machine with four Jars & Lock Clamps

  • Model Number:

    TMAX-DSP-LT01
  • Type:

    Planetary Ball Mill Machine
  • Dimension(L*W*H):

    50-500mL*4 It can be customized
  • Net Weight:

    70KG
  • Compliance:

    CE certificate
  • Warranty:

    Two Year Limited Warranty With Lifetime Support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

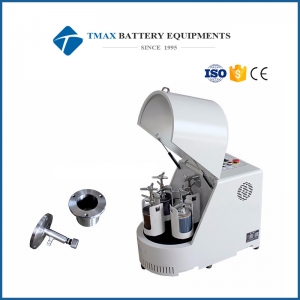

50-500mL Lab Planetary Ball Mill Machine with four Jars & Lock Clamps

 SPECIFICATION

1 Planetary ball mill is necessary equipment for mixing, fine grinding, sample preparing, nano-materials dispersing, new product developing and preparing small volume high-tech material production.

2 the Planetary ball mill is small, full-featured, high efficiency and low noise which is the ideal equipment for scientific research units, institutions of higher learning, corporate laboratories to obtain micro particle research samples. (Four samples for each experiment).

3 It can be equipped with vacuum ball mill; the sample can be ground under vacuum. It is widely used in geology, mining, metallurgy, electronics, building materials, ceramics, chemicals, light industry, medicine, beauty, environmental protection and other departments.

4 It can set the speed, forward and reverse rotation time, and the total grinding time according to process requirement.


Model

Planetary Ball Mill Machine  TMAX-DSP-LT01

Grinding tank volume (L)

0.1L*4  It can be customized

Grinding tank material

According to requirements

Grinding media

According to requirements

Maximum loading per tank

Material and grinding medium does not exceed two-thirds of the volume

Feeding material size

Soil material ≤ 10 mm, other materials ≤ 3 mm

Discharge material size

Min 0.1um

Rotating speed

Revolution  340r/min ,

Rotation 680 r/min

Speed ration

 (revolution: rotation)

1:2

Speed mode

Frequency, programmable stepless speed regulation, manual, automatic timing forward and reverse

Transfer method

Gear drive

Working Voltage

110V/220V

Motor power and variable frequency power

0.8Kw

Way of working

Two or four jars work at the same time

Maximum continuous operating time

72hours
