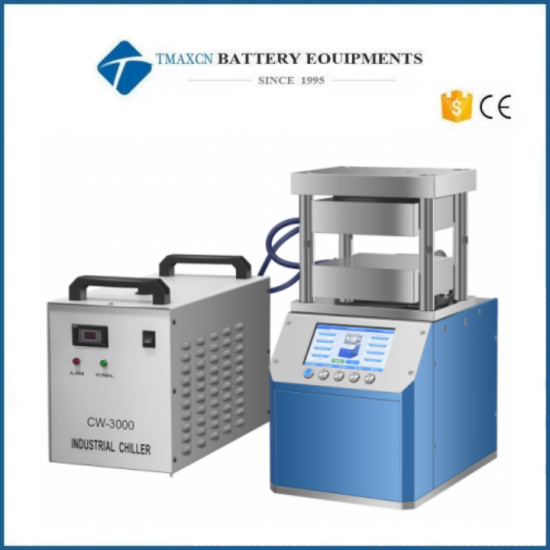

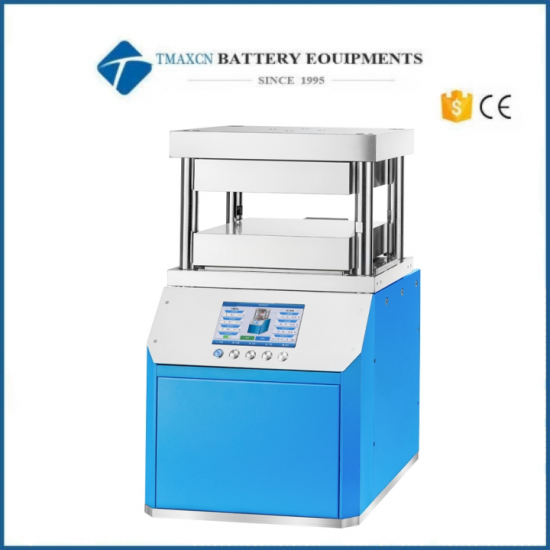

500℃ 25T Lab Automatic High Temperature Double Heating Plate Hot Press Machine

500℃ 25T Lab Automatic High Temperature Double Heating Plate Hot Press Machine

Operation interface (Manual mode)



Standard interface: The heating temperature and constant temperature time of the upper and lower plates can be set separately on the interface.

Pressurization button: Press according to the parameters set on the interface.

Upper plate button: Heat the upper heating plate.

Lower plate button: Heat the lower heating plate.

Timing switch: The timing function can be turned on and off.



Operation interface (Automatic mode)



Start button: It can be pressurized according to the multi-stage pressurization program.

Stop button:Press the stop button to stop the heating process.

List/Curve: The current display state can be switched between list and curve



Setting interface



Tap Settings on the operation screen to enter the Settings screen. The Settings screen has four ICONS.

Program Settings:Multi-stage pressure procedures and pressure holding times can be set.

Sample setting: The shape and size of the sample can be set to facilitate the user to calculate the pressure of the sample.

Data management: Previously saved data records can be invoked and modified..

System Settings: Administrators can set various parameters, enter the password "666"



Setting interface



Multi-segment program Settings: Up to 5 segments of pressurized programs can be set.

Invoke button: Invoke the set parameters to the automatic operation interface for pressure.

Save button: Save the set parameters to the database for later invocation.

Back button: Returns to the Settings screen



Mold operation diagram





Operation procedure











Technical parameter

Instrument type	PP-600D2(300.0℃)/PP-600DG2(500.0℃)
Pressure range	0-25.0 tons
Pressurization process	Programmed pressure - programmed pressure retention - timed pressure relief
Holding time	1s to ∞s
Mold heating temperature	Room temperature -300.0℃/500℃
Constant temperature time	1 s to ∞ s
Temperature control accuracy	0.1 ℃
Heat insulation method	Imported heat shield
Cooling method	Water cooling rapid cooling [Optional water cooler]
Mold size	200x200mm(MXN)
Overall size	300x390x560mm(LxWXH)
Power source	1700W(220V/110V can be customized)
Main engine weight	140 Kg
Powder press size diagram
